HiReach 110′ - 240′

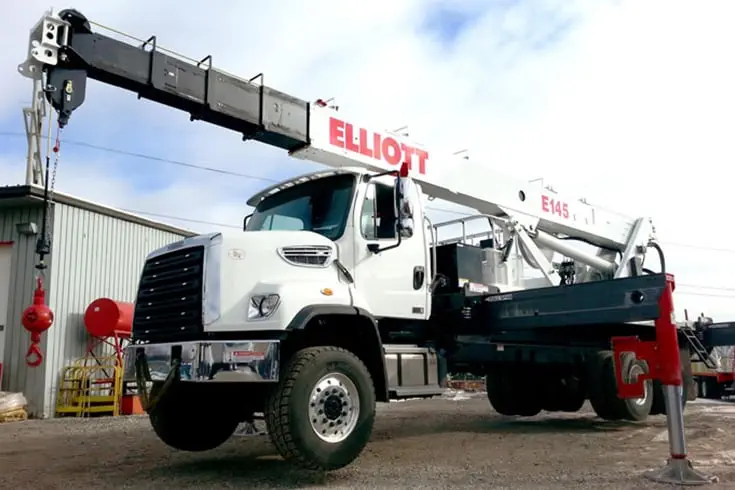

E145 E-LINE
Elliott’s E145 E-Line features a 145′ working height and a 36″ x 72″ two-man work platform with a 1,200 lb capacity. All E-Line products are designed to comply with the ANSI A92.2 standard.
Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting equipment that can also lift materials, providing a versatile solution for a wide range of industries. All products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You
Technical Specs
WORKING HEIGHT
145′ / 44,2 M
WORKING SIDE REACH
80′ / 24,4 M
BOOM SECTIONS
5
PLATFORM TYPE
YOKE-MOUNT
PLATFORM CAPACITY
1,200 LB / 544 KG
PLATFORM SIZE
36″X72″ / 91X183 CM
JIB WINCH CAPACITY
N/A
MAIN WINCH CAPACITY
18,000 LB / 8165 KG
OUTRIGGER TYPE FRONT
OUT-DOWN
OUTRIGGER SPREAD FRONT
21’2″ / 6,4 M
OUTRIGGER TYPE REAR
OUT-DOWN
OUTRIGGER SPREAD REAR
21’2″ / 6,4 M
UNIT WEIGHT (BARE)
CONTACT FACTORY
OVERALL HEIGHT
12’6” / 3,8 M
RECOMMENDED CAB TO AXLE (CA)
204″/518 CM
RECOMMENDED GVWR
58,000 LB / 26 308 KG
