D115 DIGGER DERRICK

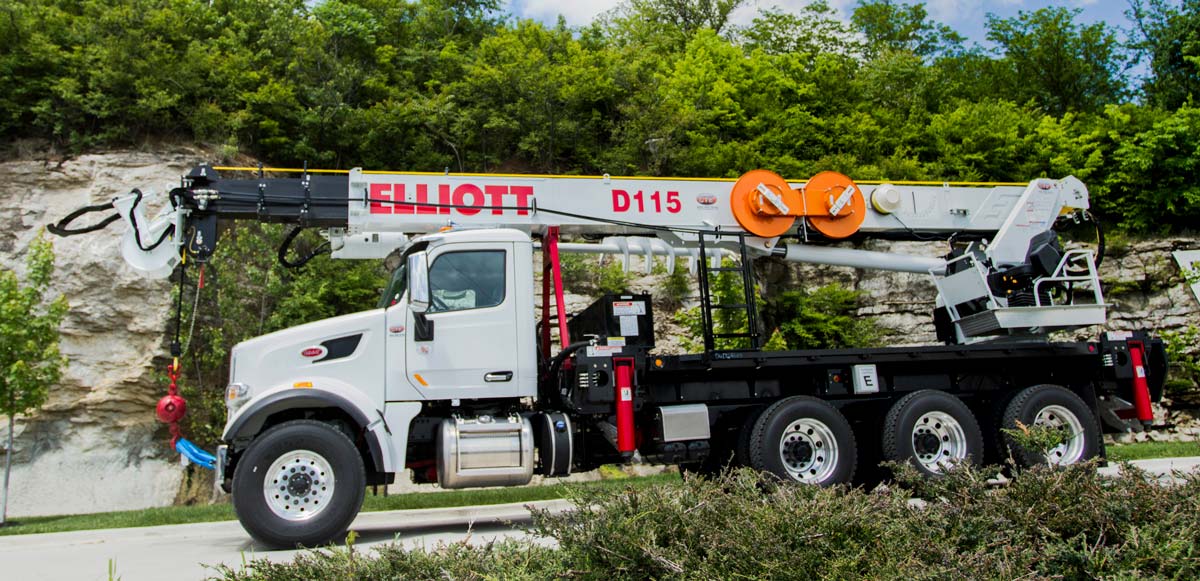

Elliott Equipment Company is proud to introduce the D115, a new ANSI 10.31 Digger Derrick. The D115 is specifically designed for transmission and heavy duty construction projects. Mounted on a tridem axle chassis, the D115 Digger Derrick boasts a 117 foot sheave height, 20,000 foot/pounds of torque, and a 44 foot digging radius. The unit is equipped with Elliott’s high boom pin point geometry allowing for maximum power out of the hole, a variable displacement piston pump, and a new ergonomic seated control console.

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting equipment that can also lift materials, providing a versatile solution for a wide range of industries. All products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

SHEAVE HEIGHT (MAXIMUM)

107’/32,6 M

SHEAVE HEIGHT (RETRACTED)

43’/13,1 M

HORIZONTAL REACH (MAXIMUM)

85’/25,9 M

HORIZONTAL REACH (INTERMEDIATE)

45’/13,7 M

HORIZONTAL REACH (RETRACTED)

28’/8,5 M

LIFTING CAPACITY (MAXIMUM)

50,000 LB/22 679 KG

LIFTING CAPACITY @ 10’ RADIUS

29,000 LB/13 154 K KG

BOOM ELEVATION LIMITS

-8/+80 DEGREES

WINCH SINGLE LINE PULL

12,000 LB/5443 KG

BOOM ROTATION

360 DEGREES CONTINUOUS

DIGGER MOTOR TORQUE

20,000 FT-LB/27 116 NM

DIGGER SPEED (HIGH/LOW)

80 RPM / 35 RPM

DIGGING RADIUS (MAXIMUM)

44’/13,4 M

DIGGING RADIUS (MINIMUM)

27’/8,2 M

OUTRIGGER CONFIGURATION

OUT-DOWN

RECOMMENDED GVWR

46,000 lb/20 865 kg

OUTRIGGER SPREAD (MID-SPAN)

13’11”/4,2 M

CERTIFICATION

ANSI A10.31 FOR DIGGER DERRICKS

Recommended Industries

Construction
Utilities & Electrical Contracting
