BoomTruck Cranes
26 - 36 Ton LIfting Capacity

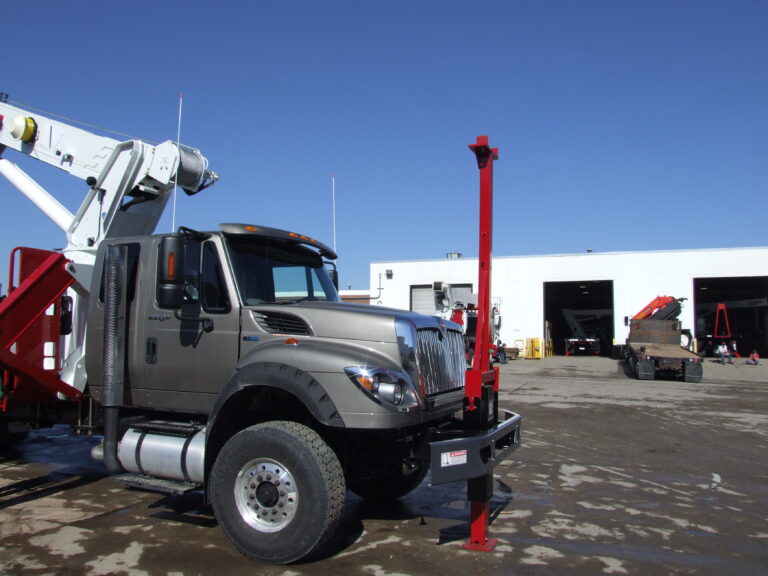

2651F BoomTruck
Lifting Capacity:
52,000 lb / 23 587 kg
Boom Length:
51’ / 15,5 m
Maximum Tip Height:
61′ / 18,6 m

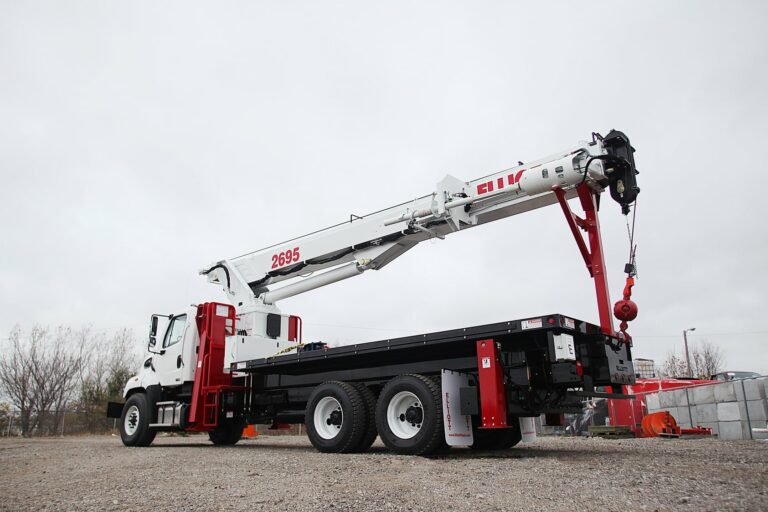

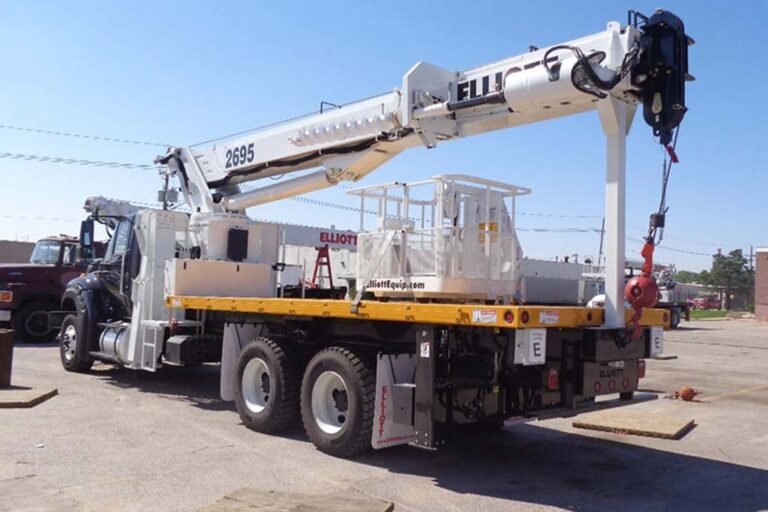

2695 BoomTruck
Lifting Capacity:
52,000 lb / 23 587 kg
Boom Length:
95’ / 29 m
Maximum Tip Height:
152′ / 46,3 m
2695-D BoomTruck
Lifting Capacity:
52,000 lb / 23 586 kg
Boom Length:
95′ / 29 m
Maximum Tip Height:
152′ / 46,3 m

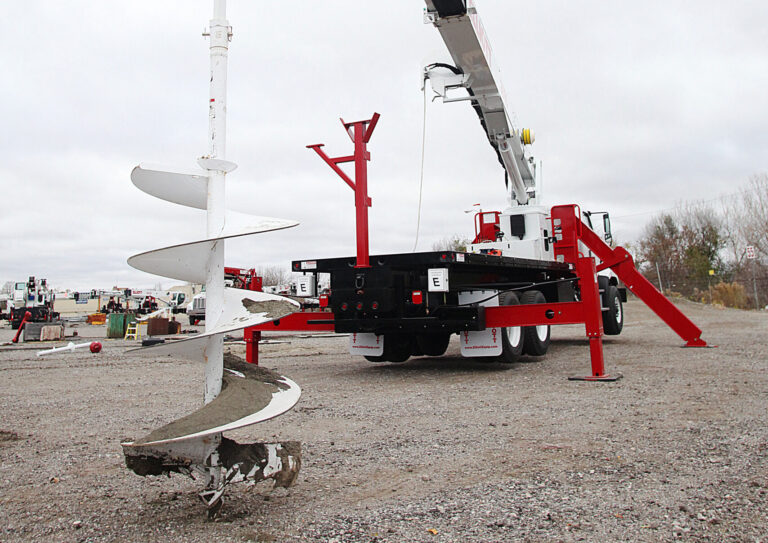

26105 BoomTruck
Lifting Capacity:
52,000 lb / 23 587 kg
Boom Length:
105’ / 32 m
Maximum Tip Height:
162′ / 49,4 m
26105-D BoomTruck
Lifting Capacity:
52,000 lb / 23 587 kg
Boom Length:
105’ / 32 m
Maximum Tip Height:
162′ / 49,3 m
3095F BoomTruck
Lifting Capacity:
60,000 lb / 27 215 kg
Boom Length:
95’ / 29 m
Maximum Tip Height:
148′ / 45,1 m
3095R BoomTruck
Lifting Capacity:
60,000 lb / 27 215 kg
Boom Length:
95’ / 29 m
Maximum Tip Height:
148′ / 45,1 m

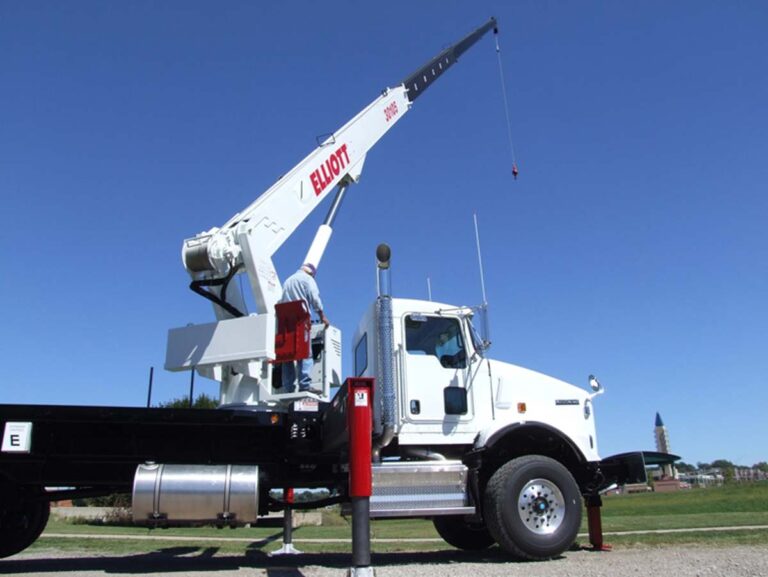

30105F BoomTruck
Lifting Capacity:
60,000 lb / 27 215 kg
Boom Length:
105’ / 32 m
Maximum Tip Height:
162′ / 49,4 m

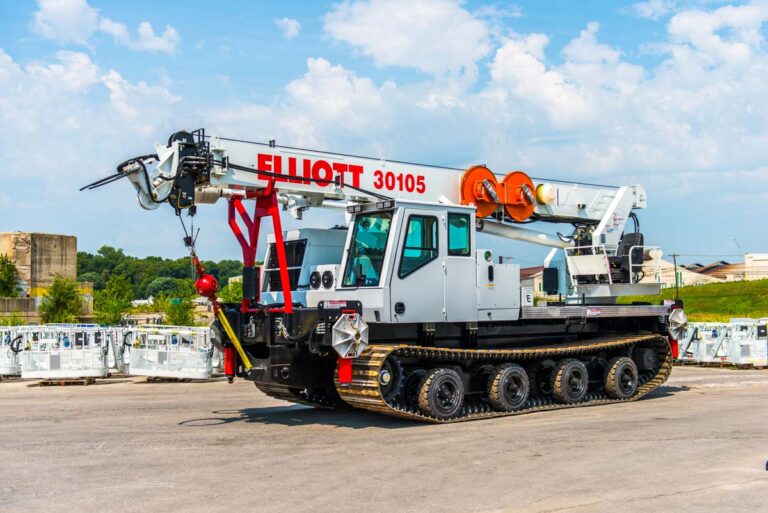

30105R BoomTruck
Lifting Capacity:
60,000 lb / 27 215 kg
Boom Length:
105’ / 32 m
Maximum Tip Height:
162′ / 49,4 m
30105-D BoomTruck
Lifting Capacity:
60,000 lb / 27 215 kg
Boom Length:
105’ / 32 m
Maximum Tip Height:
162′ / 49 m
34127 BoomTruck
Lifting Capacity:
68,000 lb / 30 844 kg
Boom Length:
127’ / 39 m
Maximum Tip Height:
186′ / 57 m

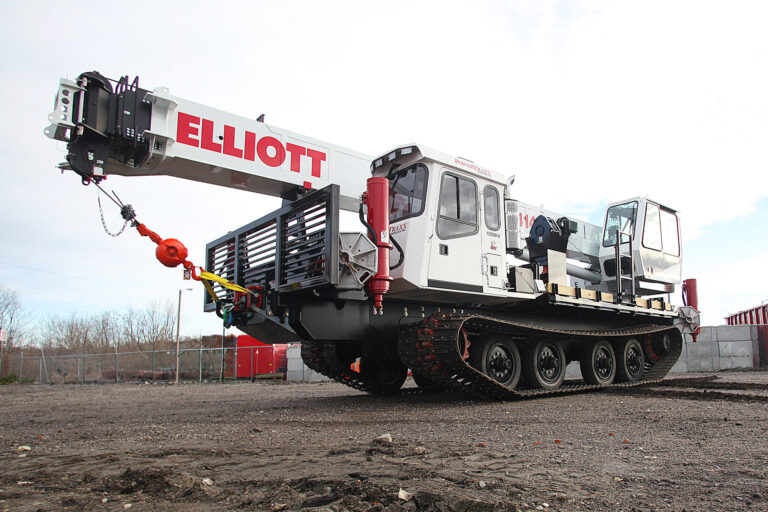

34142 BoomTruck
Lifting Capacity:
68,000 lb / 30 844 kg
Boom Length:
142′ / 43,3 m
Maximum Tip Height:
201′ / 61,3 m

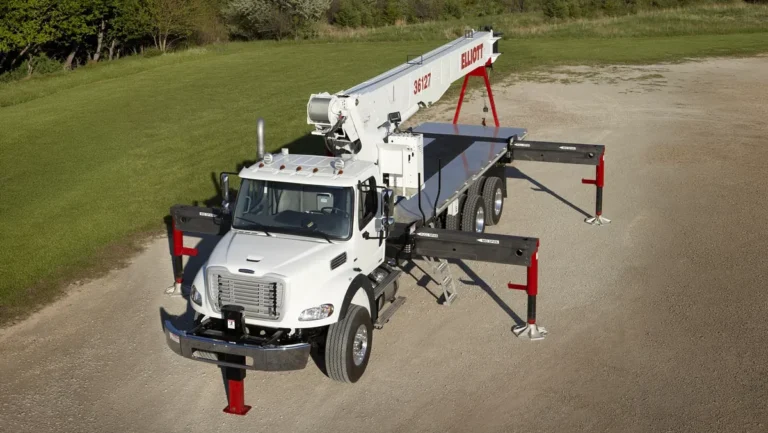

36127F BoomTruck
Lifting Capacity:
72,000 lb / 32 659 kg
Boom Length:
127’ / 39 m
Maximum Tip Height:
186′ / 57 m

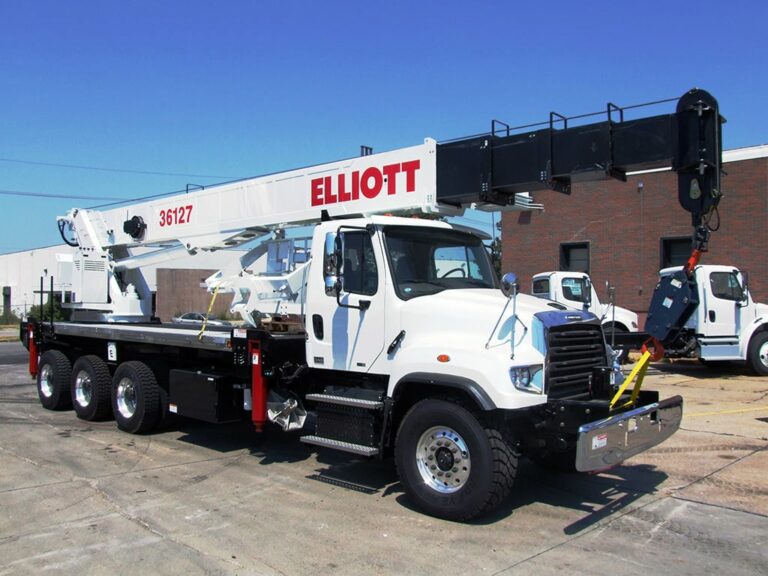

36127R BoomTruck
Lifting Capacity:
72,000 lb / 32 659 kg
Boom Length:
127’ / 39 m
Maximum Tip Height:
186′ / 56,7 m

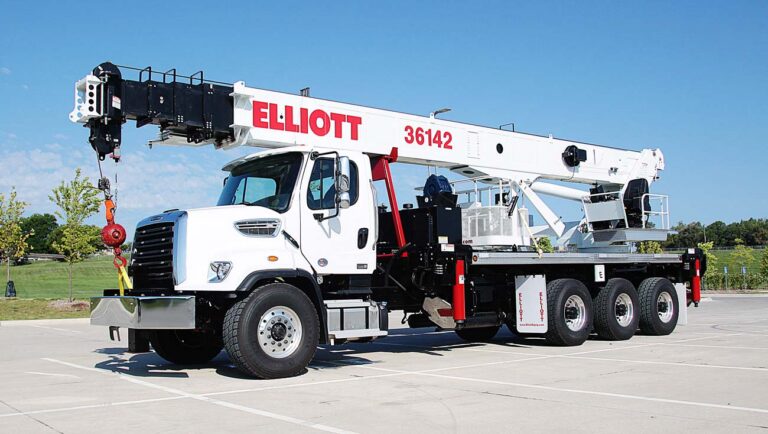

36142 BoomTruck
Lifting Capacity:
72,000 lb / 32 659 kg
Boom Length:
142’ / 43,3 m
Maximum Tip Height:
201′ / 61,3 m
Why Choose an Elliott BoomTruck?
Start with what you need in a boom truck. Other equipment manufacturers might try to mold your needs to their equipment, but at Elliott Equipment Company, we work with you to engineer the most hardworking equipment for your particular job-site requirements. Whether it’s specialized rail gear, high-capacity digging equipment, a mounted welder generator or a huge array of other features, we’re here to customize the right piece of equipment for your application.
And while the features of your BoomTruck crane may be unique to your work environment, the foundation on which we build all of our equipment remains the same. Our full-length, heavy-duty subframe is designed to disperse stress and maximize chassis life. In fact, all of the high-quality components that go into our cranes are designed to maximize service life and resale value. That is why we’re able to back up all of our equipment with a lifetime structural warranty.
BoomTruck Standard Features
Industry-Leading Lifetime Structural Warranty
Wide Range of Lifting Capacities and Boom Lengths for Many Applications
Highest Torque and Radius Boom Truck Diggers on the Market
Patented Features that Improve Productivity & Safety
Full Length Subframe
Optimized Boom Pin-Point Geometry
High Capacity Single Line Pull Winches
High Capacity Two-Speed Winch
Heavy-Duty Turret Rotation Bearing
Full Color Load Moment Indicator (LMI)
Ride-Around Standup Control Console
Steel Enclosed Crane Cab with Diesel Heater
Multi-Mode Glide Swing Rotation
Your Choice of Oil/Oil or Electric/Hydraulic Controls
High Speed Outrigger Setup
Customized Outrigger Solutions
Friction-Free Jib Extension System
Jib Storage on Either Side of Boom
Oversized Boom Tip Jib and Accessory Mounting 'Ears'
Heavy Duty Boom Tip
Solid Steel Boom Sheaves
Easy-Access Wear Pad Adjustment and Boom Servicing
Oversized Grease Port in Main Boom Section
Color Coded Hydraulic Hoses
Cupholder and 12V Charger
Piston Pump
BoomTruck Optional Features
Open Seated or Enclosed Tilting Crane Cab
One or Two-Section Telescopic Jibs
Hydraulic Two-Speed 14,000 or 20,000 ft/lb Auger
40" x 60" Rotating Work Platform
34" x 72" Detachable Yoke Work Platform
Wireless Radio Remote Controls
Wireless Radio Remote Controls with LMI Display
SuperLink 'A' Frame Shortjack Outriggers
'EZ Crib' Outriggers
Winch Drum Rotation Indicator
Dual Winch Package with Rooster Sheave
Hydraulic Hose Reel
Hydraulic Pole Claw Mounted on Boom Tip
Hydraulic Clam Shell Bucket
Up to 8 Part Line Block
Hydraulic Oil Cooler
Arctic Fox Oil Heater
Pole/Pipe Rack
Welder Generator
Track Vehicle Mounting
Custom Boxes or Line body
Custom Paint
Safety & Emergency Lighting
