BoomTruck 26 - 36 Ton Lifting Capacity

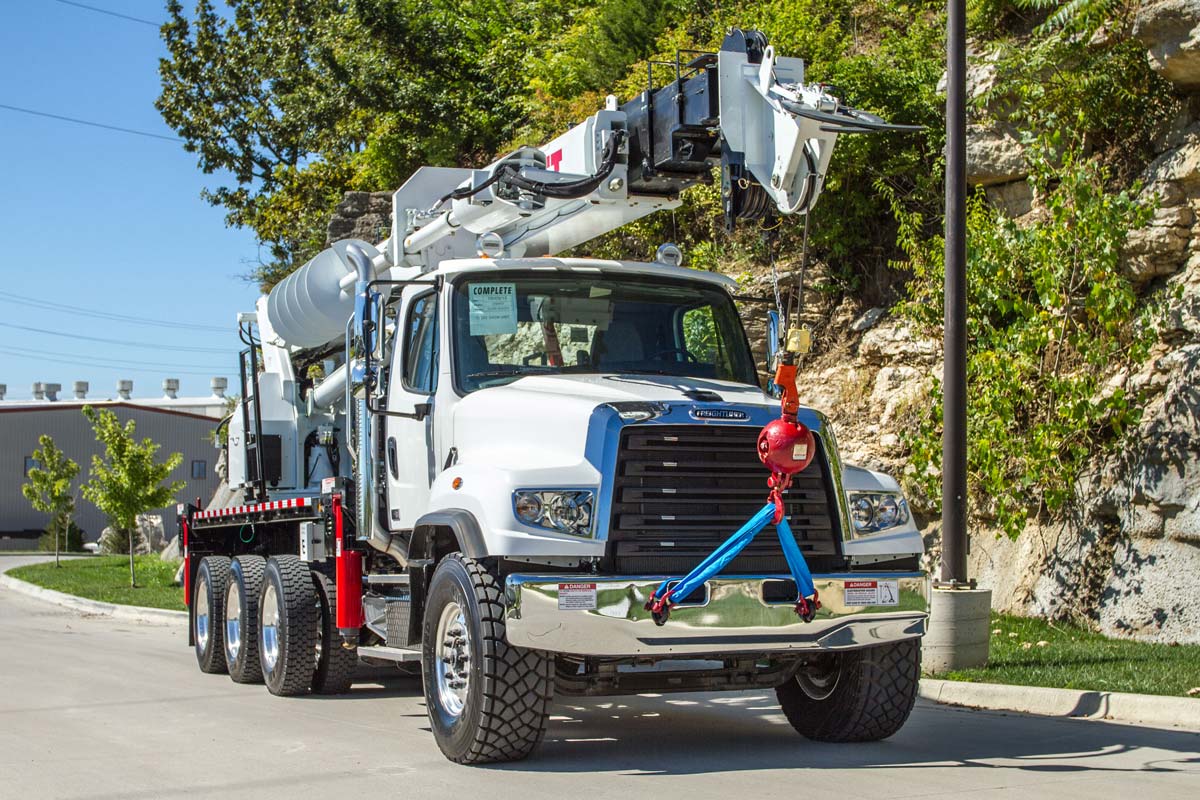

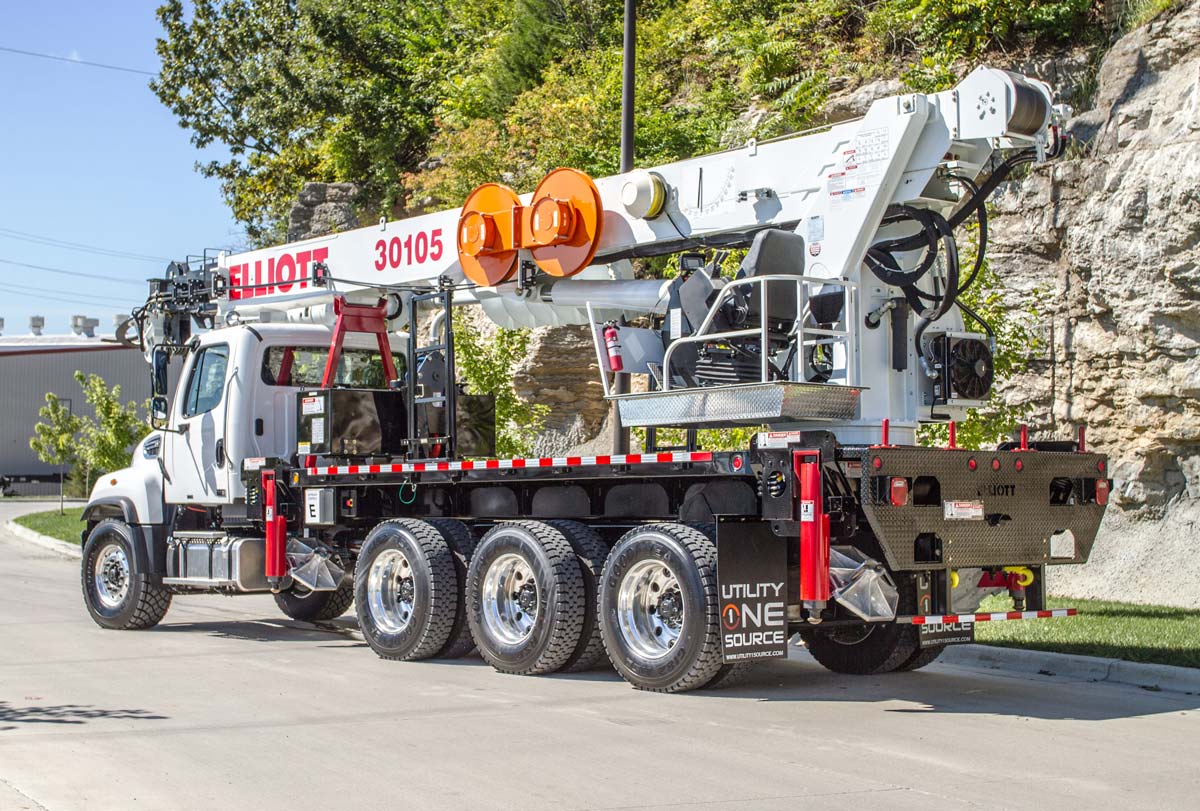

30105R BOOMTRUCK

Elliott’s 30105R BoomTruck is a rugged partner, ready to help you do your job day in and day out. Featuring Elliott’s Ride Around control console to make it easy to see your work, and backed by the best warranty in the industry, the 30105R can be configured to meet the specific needs of your application.

KEY BENEFITS

  • Proven design ensures reliability and maximizes uptime
  • Out and down main and vertical secondary outriggers provide setup flexibility
  • DynaSmooth hydraulic system delivers outstanding user feedback and precise control
  • Heavy-duty boom tip design adds strength when using jibs
  • User-friendly graphic LMI interface
  • Friction-free jib extension for smooth deployment and stowage
  • Proprietary boom pad design ensures smooth boom operation
  • Two-year parts and labor warranty
  • Lifetime structural warranty for your peace of mind

Elliott Equipment Company specializes in manufacturing long-lasting and reliable material handling and personnel lifting equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

LIFTING CAPACITY
60,000 LB / 27 215 KG
BOOM LENGTH
105’ / 32 M
BOOM SECTIONS
4
JIB LENGTHS
26’, 26-45’ / 8, 8-13,7 M
MAXIMUM TIP HEIGHT
162′ / 49,4 M
WINCH BARE DRUM PULL
12,800 LB / 5806 KG
WINCH SINGLE LINE PULL
9,060 LB / 4109 KG
OPERATOR CONTROLS

ROTATING STANDUP OR CAB

OUTRIGGER TYPE FRONT
OUT-DOWN
OUTRIGGER SPREAD FRONT
20′ / 6 M
OUTRIGGER TYPE REAR
OUT-DOWN
OUTRIGGER SPREAD REAR
20′ / 6 M
UNIT WEIGHT (BARE)
28,160 LB / 12 733 KG
OVERALL HEIGHT

13’5″ / 4 M

RECOMMENDED CAB TO AXLE (CA)

192″ / 488 CM

RECOMMENDED GVWR
60,000 LB / 27 215 KG
