BoomTruck 26 - 36 Ton Lifting Capacity

34127 BOOMTRUCK

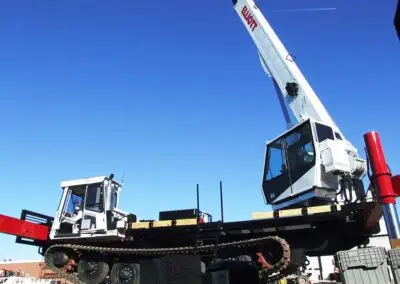

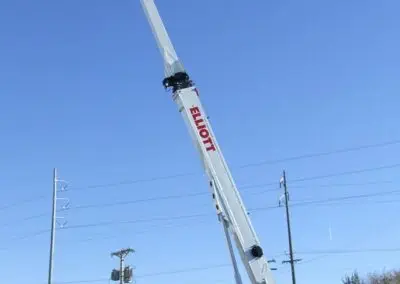

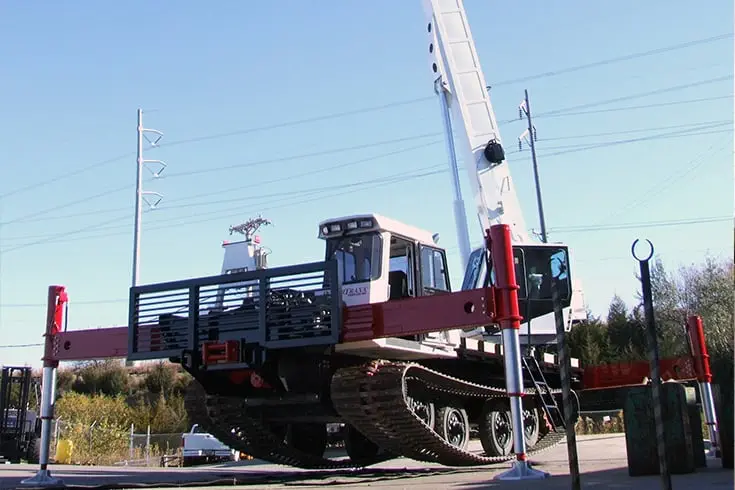

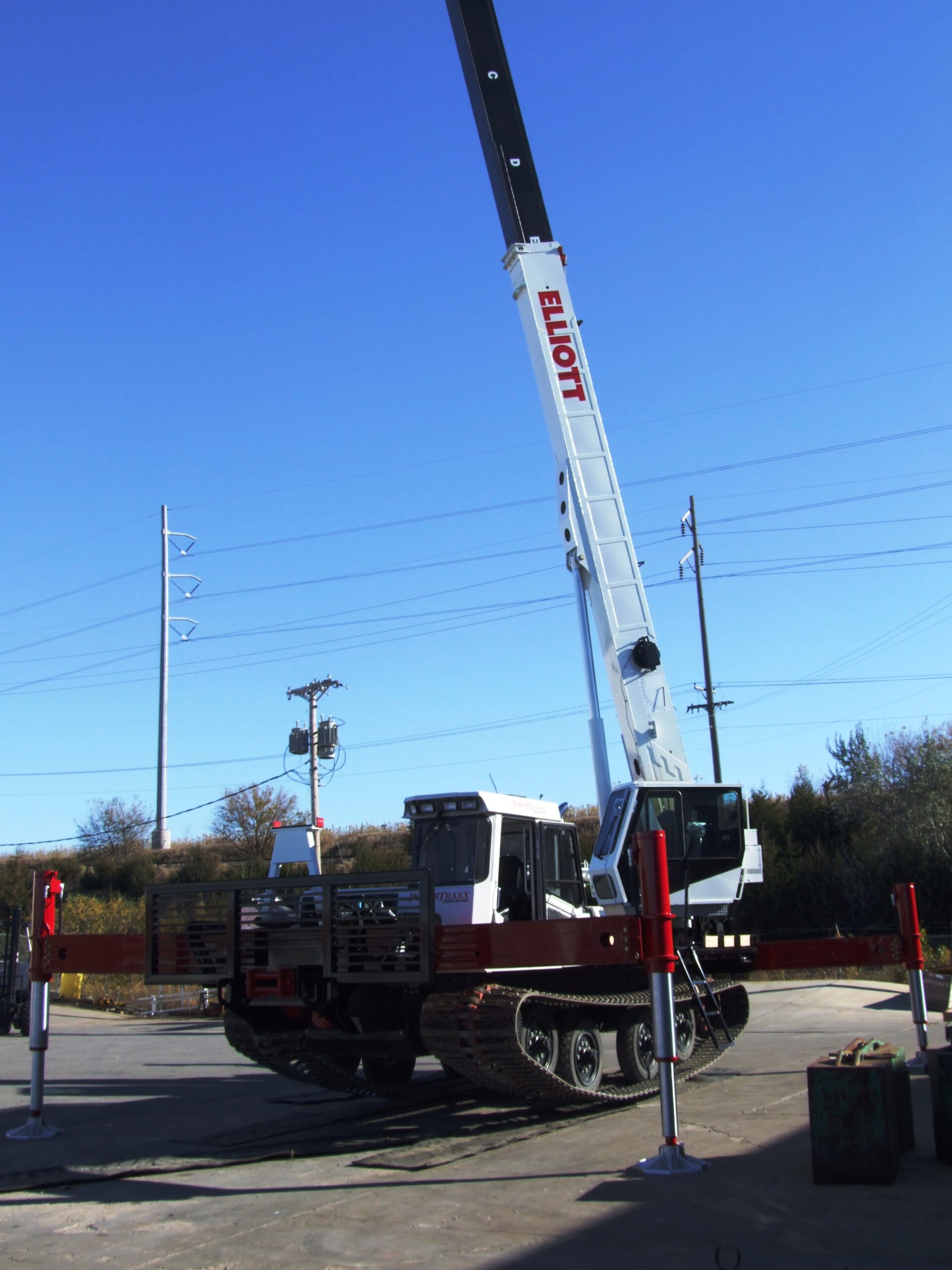

Elliott’s 34127 BoomTruck is a track-vehicle mounted crane with a 34-ton lifting capacity and a 127′ telescopic boom.

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting equipment that can also lift materials, providing a versatile solution for a wide range of industries. All products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

LIFTING CAPACITY

68,000 LBS / 30 844 KG

BOOM LENGTH

127’ / 39 M

BOOM SECTIONS

5

JIB LENGTHS

49’ / 15 M

MAXIMUM TIP HEIGHT

186′ / 57 M

WINCH BARE DRUM PULL
12,800 LBS / 5806 KG
WINCH SINGLE LINE PULL
9,060 LBS / 4109 KG
OPERATOR CONTROLS

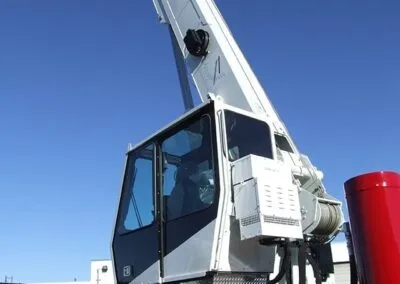

ROTATING SEATED CRANE CABIN

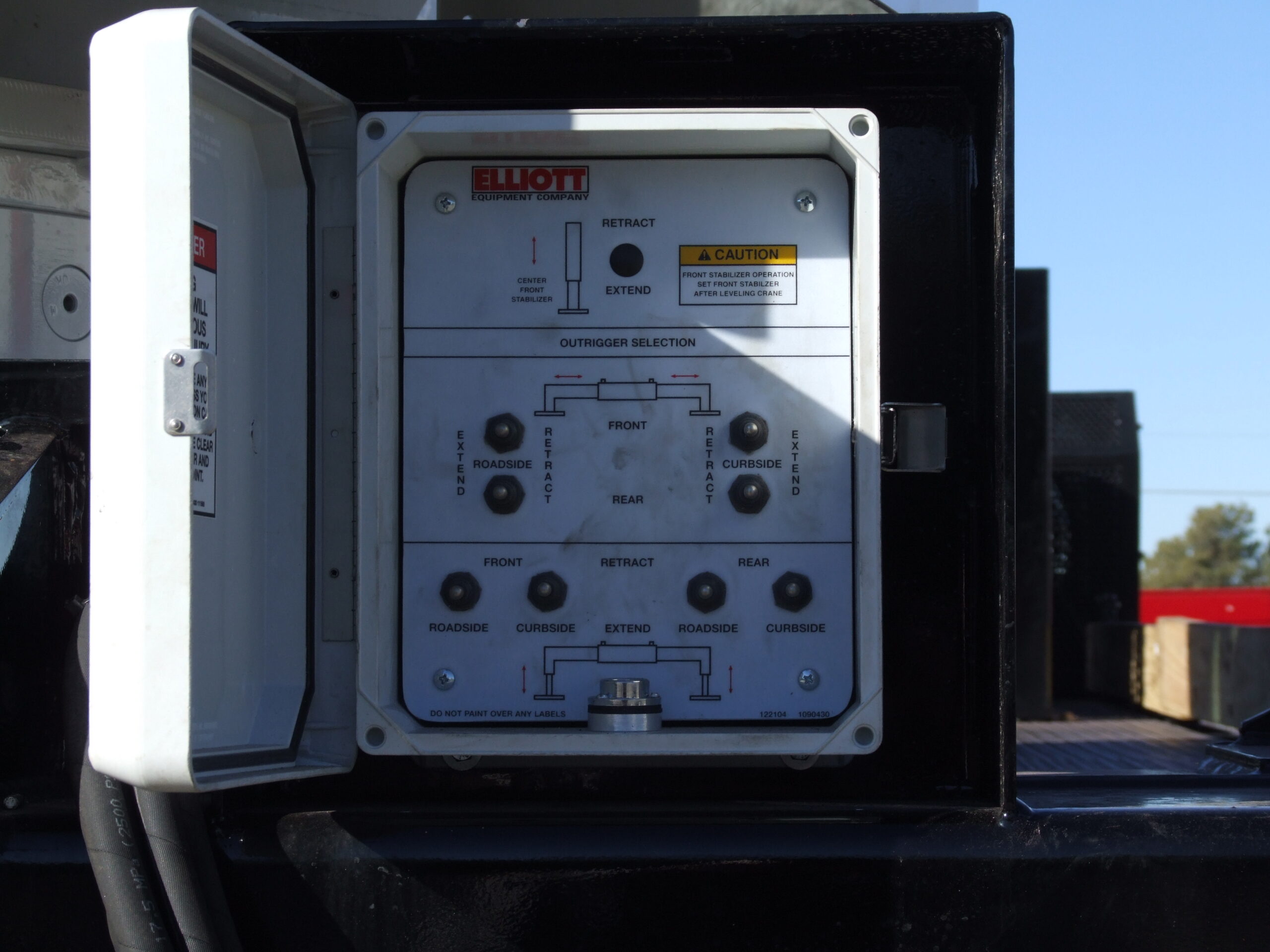

OUTRIGGER TYPE FRONT
OUT-DOWN
OUTRIGGER SPREAD FRONT

22’4” / 6,8 M

OUTRIGGER TYPE REAR
OUT-DOWN
OUTRIGGER SPREAD REAR

22’4” / 6,8 M

UNIT WEIGHT (BARE)

35,300 LBS / 16 012 KG

OVERALL HEIGHT

12’6″ / 3,8 M

RECOMMENDED CAB TO AXLE (CA)

TRACK VEHICLE

RECOMMENDED GVWR

40,000 LBS / 18 144 KG
