Reach Higher. Lift Smarter. Designed for Results.
G85R HIREACH
Built to Handle the Toughest Jobs—Up High and Out Far
A workhorse machine for lighting, sign, and other aerial applications, the G85R HiReach is rugged, reliable, and multifunctional.
Suggested industries
Why choose the G85R?
Why choose
the G85R?
EXTRA-LARGE PLATFORM FOR MAXIMUM PRODUCTIVITY
The G85R comes equipped with a spacious 40”x60” end-mounted work platform—double the size of a standard two-worker bucket. This expanded workspace enhances safety, comfort, and efficiency, especially during demanding tasks that require tools, materials, and multiple workers.

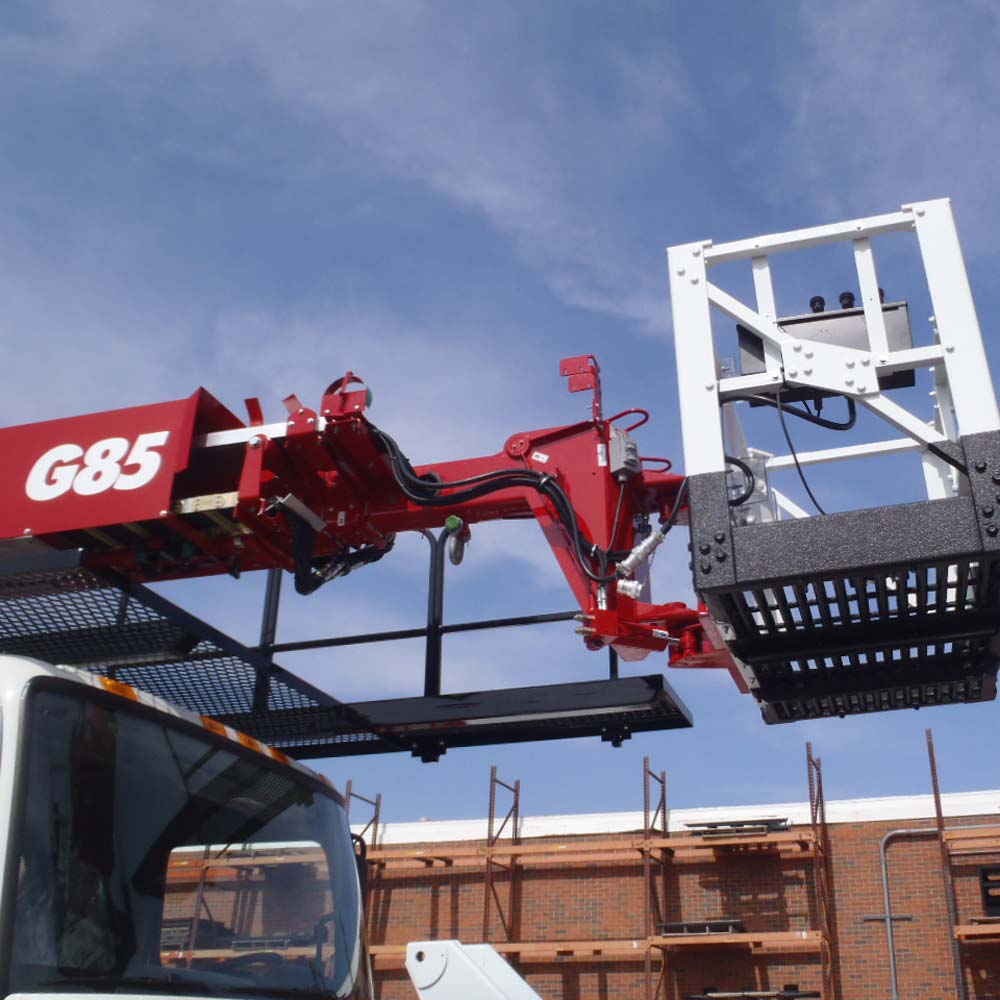

EZR ROTATING PLATFORM FOR CONSTANT WORK ORIENTATION
Stay focused on your task with the EZR rotating platform, which ensures you’re always facing your work area. This user-friendly feature improves ergonomic access and reduces the need for constant repositioning, saving valuable time on every job.
SIDE REACH WITH ZERO TAILSWING
The G85R’s advanced boom design allows for unrestricted side reach with zero tailswing, giving operators full coverage without repositioning the truck. This not only boosts productivity but also ensures safe operation in confined or obstacle-heavy spaces.
DUAL-ZONE MATERIAL HANDLING FOR ULTIMATE VERSATILITY
Capable of lifting materials both from the main boom and within the platform, the G85R maximizes jobsite efficiency. Whether hoisting heavy components or positioning materials from the air, this model offers true multifunctional performance in a single setup.
ANSI COMPLIANCE & LIFETIME STRUCTURAL WARRANTY
G85R technical specs
G85R
Technical specs
WORKING HEIGHT
87′ / 26,5 MWORKING SIDE REACH
61′ / 18,6 MBOOM SECTIONS
4PLATFORM TYPE
EZR REMOVABLEPLATFORM CAPACITY
500 LB / 227 KGPLATFORM SIZE
40″ X 60″ / 102 X 152 CMJIB WINCH CAPACITY
500 LB / 227 KGMAIN WINCH CAPACITY
5,900 LB / 2,676 KGGOUTRIGGER TYPE FRONT
A-TYPEOUTRIGGER SPREAD FRONT
12’6″ / 3,8 MOUTRIGGER TYPE REAR
OUT-DOWNOUTRIGGER SPREAD REAR
18'-2"UNIT WEIGHT (BARE)
18,000 LB / 8,165 KGOVERALL HEIGHT
12’2” / 3,7 MRECOMMENDED CAB TO AXLE (CA)
156” / 396 CMRECOMMENDED GVWR
33,000 LB / 14,969 KG87′ / 26,5 M
61′ / 18,6 M
4
EZR REMOVABLE
500 LB / 227 KG
40" x 60" / 102 x 152 CM
500 LB / 227 KG
5,900 LB / 2,676 KG
A-TYPE
12’6″ / 3,8 M
OUT-DOWN
18′ / 5,5 M
18,000 LB / 8,165 KG
12’2” / 3,7 M
156” / 396 CM
33,000 LB / 14,969 KG
MADE IN OMAHA,
TRUSTED BENEFITS
Elliott Equipment is family-owned and proudly American-built in Omaha, Nebraska. Each HiReach is designed for long-term performance with premium hydraulics, Bluetooth diagnostics, and fewer leak points, backed by a lifetime structural warranty.
Customize it for your crew
From lighting installs to bridge inspections, the G85R is made to fit your application. Add sign forks, platform lighting, composite pads, custom paint, or whatever your job demands.
Ready to see it in action?
Let’s build the perfect G85R for your team. Contact us today to talk specs, customizations, and dealer availability.
Trusted by Industry Leaders Nationwide
built to last.
lifetime warranty
Elliott Equipment Company specializes not only in flexibility and customization, but also in building some of the toughest equipment on the market. With our standard warranty, the best warranty in the industry, we can guarantee that our trucks are built to last.
Ask about our lifetime structural warranty and comprehensive one-year parts & labor warranty.
Any Questions?
OUR FAQs
Don’t see your question? Contact an expert. We’ll help you get everything sorted out!
What is the platform capacity and size on the G85R HiReach?
The G85R features a spacious 40″ x 60″ steel work platform with a 600 lb platform capacity. This large platform provides twice the work area of a standard two-worker bucket, giving crews more space for tools, materials, and movement.
Can the G85R be used for both material handling and personnel lifting?
Yes. The G85R is designed for dual functionality. It includes material handling capabilities both on the main boom and in the work platform, offering flexibility for a wide range of jobsite applications.
How does the G85R maintain stability in tight or uneven jobsite conditions?
The unit features zero tailswing and unrestricted side reach, allowing it to be set up and operated safely in confined areas. Its heavy-duty outriggers and structural components ensure a stable working base even on challenging terrain.
What safety standards does the G85R comply with?
What is the platform capacity and size on the G85R HiReach?
The G85R features a spacious 40″ x 60″ steel work platform with a 600 lb platform capacity. This large platform provides twice the work area of a standard two-worker bucket, giving crews more space for tools, materials, and movement.
Can the G85R be used for both material handling and personnel lifting?
Yes. The G85R is designed for dual functionality. It includes material handling capabilities both on the main boom and in the work platform, offering flexibility for a wide range of jobsite applications.
How does the G85R maintain stability in tight or uneven jobsite conditions?
The unit features zero tailswing and unrestricted side reach, allowing it to be set up and operated safely in confined areas. Its heavy-duty outriggers and structural components ensure a stable working base even on challenging terrain.
What safety standards does the G85R comply with?
The G85R meets or exceeds ANSI A92.2 standards in all modes of operation and includes features like platform rotation and emergency controls. It’s also backed by Elliott’s lifetime structural warranty for long-term confidence in the field.
