HiReach 45′ - 65′

L65 HiReach

L65R HIREACH

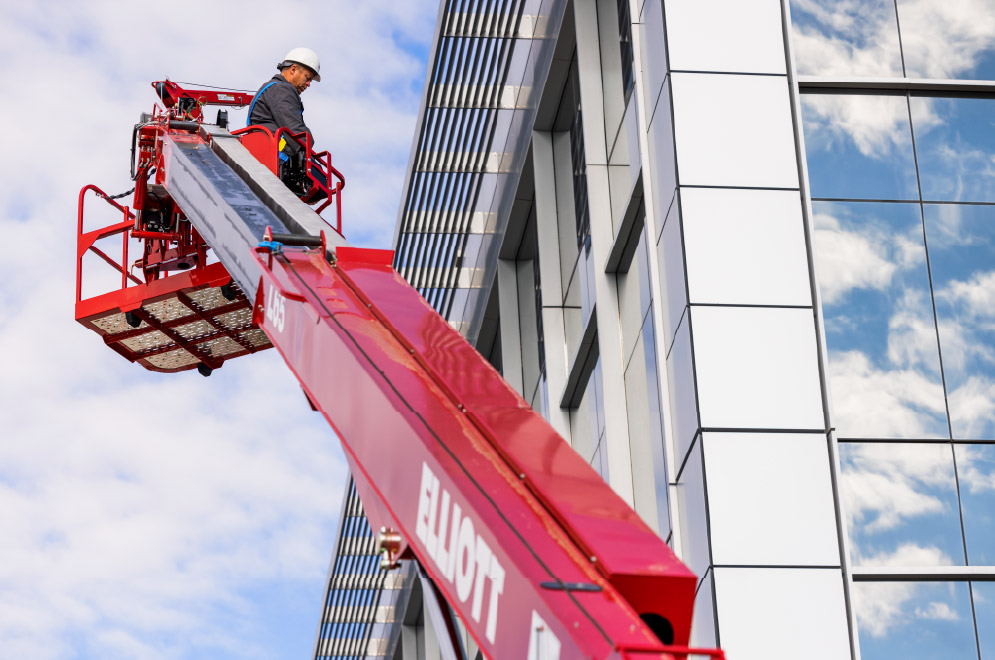

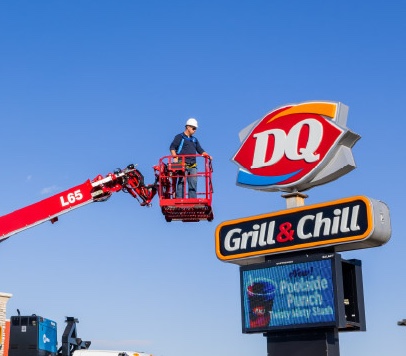

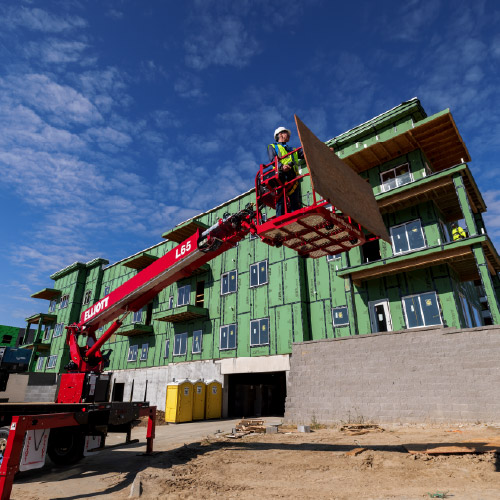

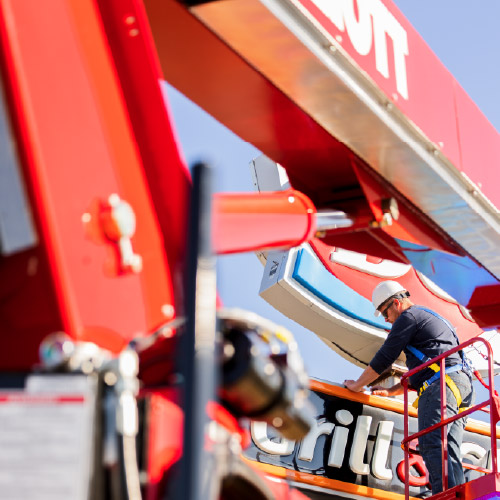

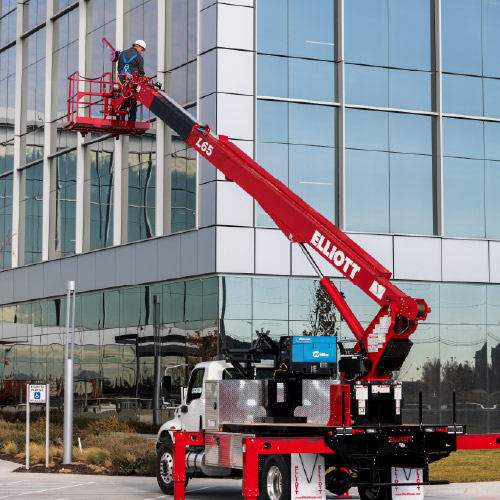

Elliott’s L65 HiReach features a 65′ working height and a 40″ x 60″ two-man work platform with a 600 lb capacity. The three-section hydraulic boom offers smooth functionality and a precise ‘point and shoot’ ride. The work platform is hydraulically self-leveling and hydraulically rotating to get you to the work area safely and comfortably. The L65 HiReach is available with a main winch (5,900 or 2,000 lb), a jib winch in the work platform (500 lb) and Elliott’s ‘Office in the Sky’ cable carrier system to bring your tools into the work platform.

Key Benefits

  • Over 3,300 lbs. of toolbox capacity on 25,999 chassis.
  • User choice of three stick or single stick remote controls
  • 160-degree platform rotation
  • The steel boom extends hydraulically without cables or chains for reduced maintenance and a smoother ride
  • Elliott’s Dynasmooth upper work platform control system includes a foot enable switch and individual joysticks with hi/lo range for excellent sensitivity adjustment
  • No side reach envelope limits, allowing the operator to boom up and out in any direction without restriction (within chart capacity limits)
  • Oversized turret and bearing provide long-term reliability and excellent stability
  • Optional main boom winch allows for material handling with the work platform attached or removed
  • Optional 500 lb capacity jib winch conveniently stows within the work platform and permits lifting materials while in the work platform, reducing the need to make multiple trips to the ground
  • One year parts/labor warranty and lifetime structural warranty

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting equipment that can also lift materials, providing a versatile solution for a wide range of industries. All products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

WORKING HEIGHT

65’ / 19,8 M

WORKING SIDE REACH

59’ / 17,9 M

PLATFORM CAPACITY

600 LB / 272 KG

PLATFORM SIZE

40″X60″ / 102X152 CM

JIB WINCH CAPACITY

500 LB / 227 KG

MAIN WINCH CAPACITY

5,900 LB / 2676 KG

BOOM SECTIONS

3

PLATFORM TYPE

EZR REMOVABLE

OUTRIGGER TYPE FRONT

OUT-DOWN

OUTRIGGER SPREAD FRONT

12′ / 3,7 M

OUTRIGGER TYPE REAR

OUT-DOWN

OUTRIGGER SPREAD REAR

17’ / 5,2 M

UNIT WEIGHT (BARE)

13,500 LB / 6123 KG

OVERALL HEIGHT

12’0” / 3,6 M

RECOMMENDED CAB TO AXLE (CA)

120” / 305 CM

RECOMMENDED GVWR

25,999 LB / 11 793 KG
