HiReach
Working Height 45′ - 65′

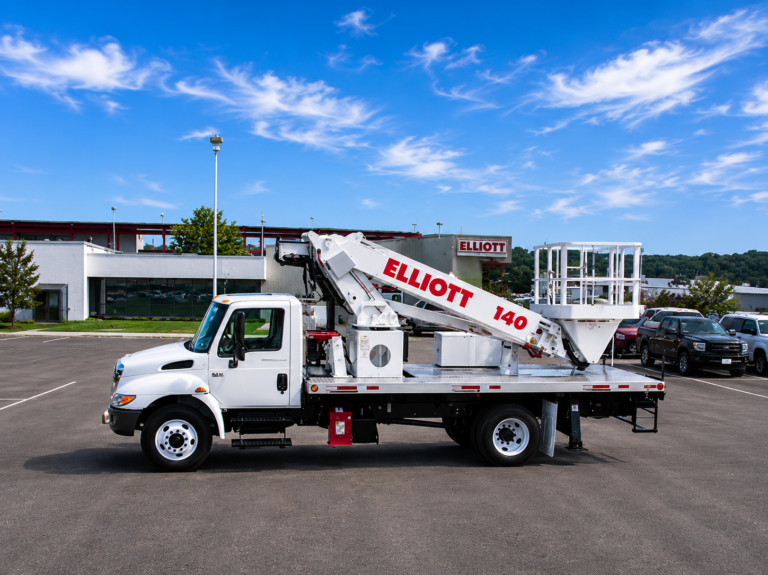

I40F HIREACH (46KV)
Working Height:
45′ / 13,7 m
Working Side Reach:
30′ / 9,1 m
Main Winch Capacity:
3,650 lbs / 1656 kg
45′ / 13,7 m
Working Side Reach:
30′ / 9,1 m
Main Winch Capacity:
3,650 lbs / 1656 kg

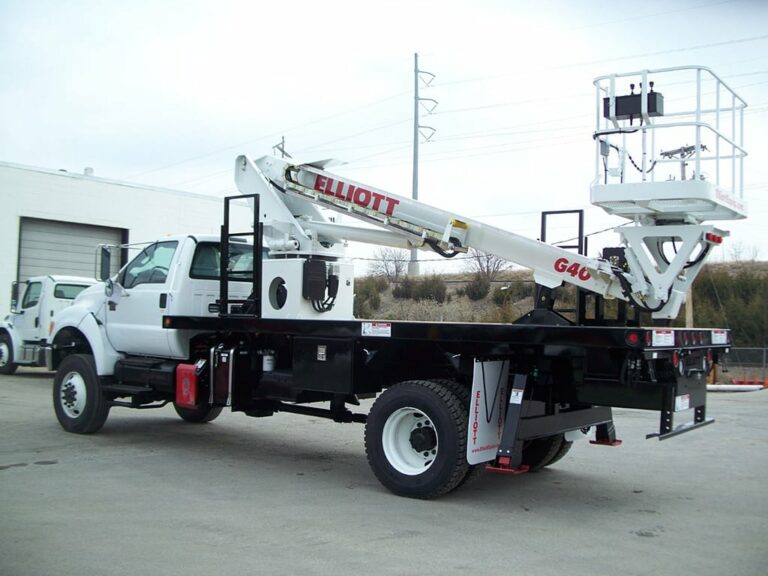

G40F HiReach
Working Height:
45′ / 13,7 m
Working Side Reach:
30′ / 9,1 m
Main Winch Capacity:
5,900 lbs / 2676 kg
45′ / 13,7 m
Working Side Reach:
30′ / 9,1 m
Main Winch Capacity:
5,900 lbs / 2676 kg

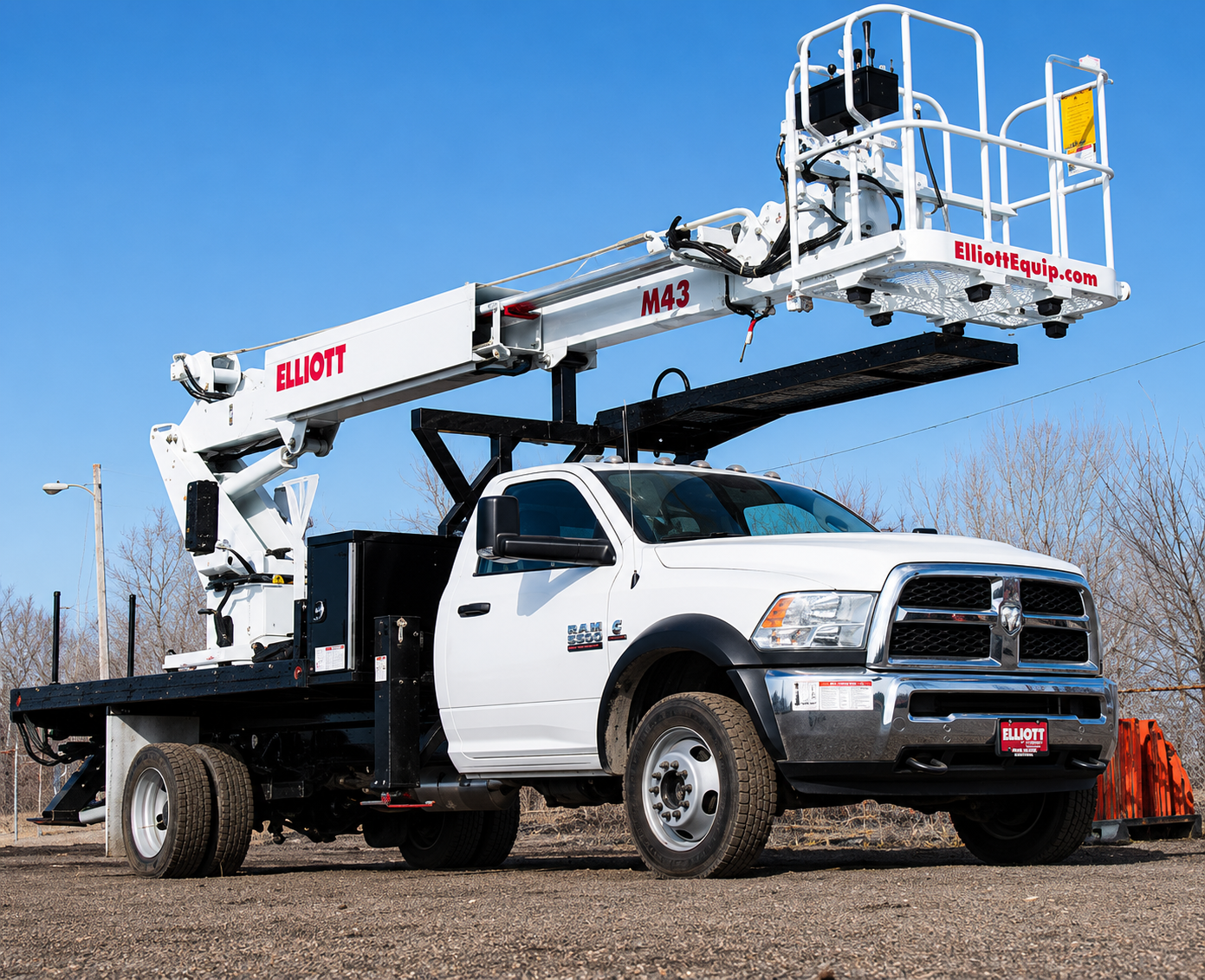

M43R HiReach
Working Height:
48′ / 14,6 m
Working Side Reach:
38′ / 11,6 m
Main Winch Capacity:
2,000 lbs / 907 kg
48′ / 14,6 m
Working Side Reach:
38′ / 11,6 m
Main Winch Capacity:
2,000 lbs / 907 kg

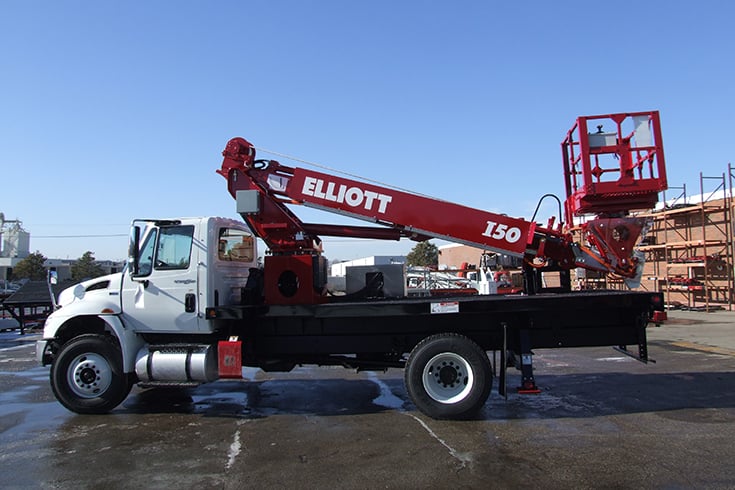

I50F HiReach (46KV)
Working Height:
55′ / 16,8 m
Working Side Reach:
40′ / 12,2 m
Main Winch Capacity:
3,650 lbs / 1656 kg
55′ / 16,8 m
Working Side Reach:
40′ / 12,2 m
Main Winch Capacity:
3,650 lbs / 1656 kg

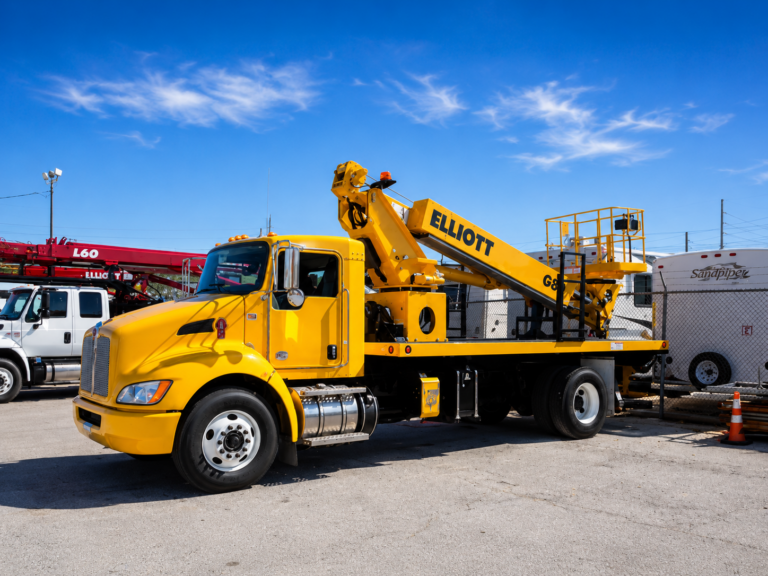

G50F HiReach
Working Height:
55′ / 16,7 m
Working Side Reach:
41′ / 12,5 m
Main Winch Capacity:
5,900 lbs / 2676 kg
55′ / 16,7 m
Working Side Reach:
41′ / 12,5 m
Main Winch Capacity:
5,900 lbs / 2676 kg

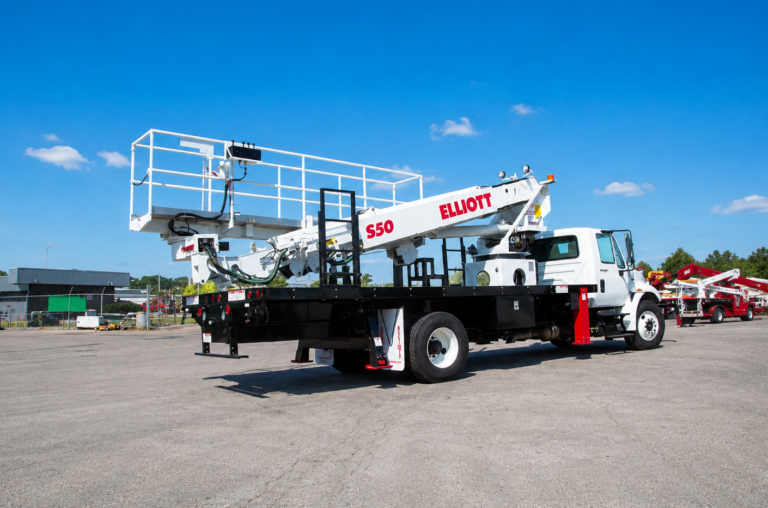

S50R SkyWalk
Working Height:
58′ / 17,7 m
Working Side Reach:
51′ / 15,5 m
Main Winch Capacity:
5,900 lbs / 2676 kg
58′ / 17,7 m
Working Side Reach:
51′ / 15,5 m
Main Winch Capacity:
5,900 lbs / 2676 kg
S50F SkyWalk
Working Height:
55′ / 16,8 m
Working Side Reach:
54′ / 16,5 m
Main Winch Capacity:
5,900 lbs / 2676 kg
55′ / 16,8 m
Working Side Reach:
54′ / 16,5 m
Main Winch Capacity:
5,900 lbs / 2676 kg
L55R HiReach
Working Height:
58′ / 17,7 m
Working Side Reach:
51′ / 15,5 m
Main Winch Capacity:
5,900 lbs / 2676 kg
58′ / 17,7 m
Working Side Reach:
51′ / 15,5 m
Main Winch Capacity:
5,900 lbs / 2676 kg
V60F HiReach
Working Height:
63′ / 19,2 m
Working Side Reach:
38′ / 11,6 m
Main Winch Capacity:
N/A
63′ / 19,2 m
Working Side Reach:
38′ / 11,6 m
Main Winch Capacity:
N/A

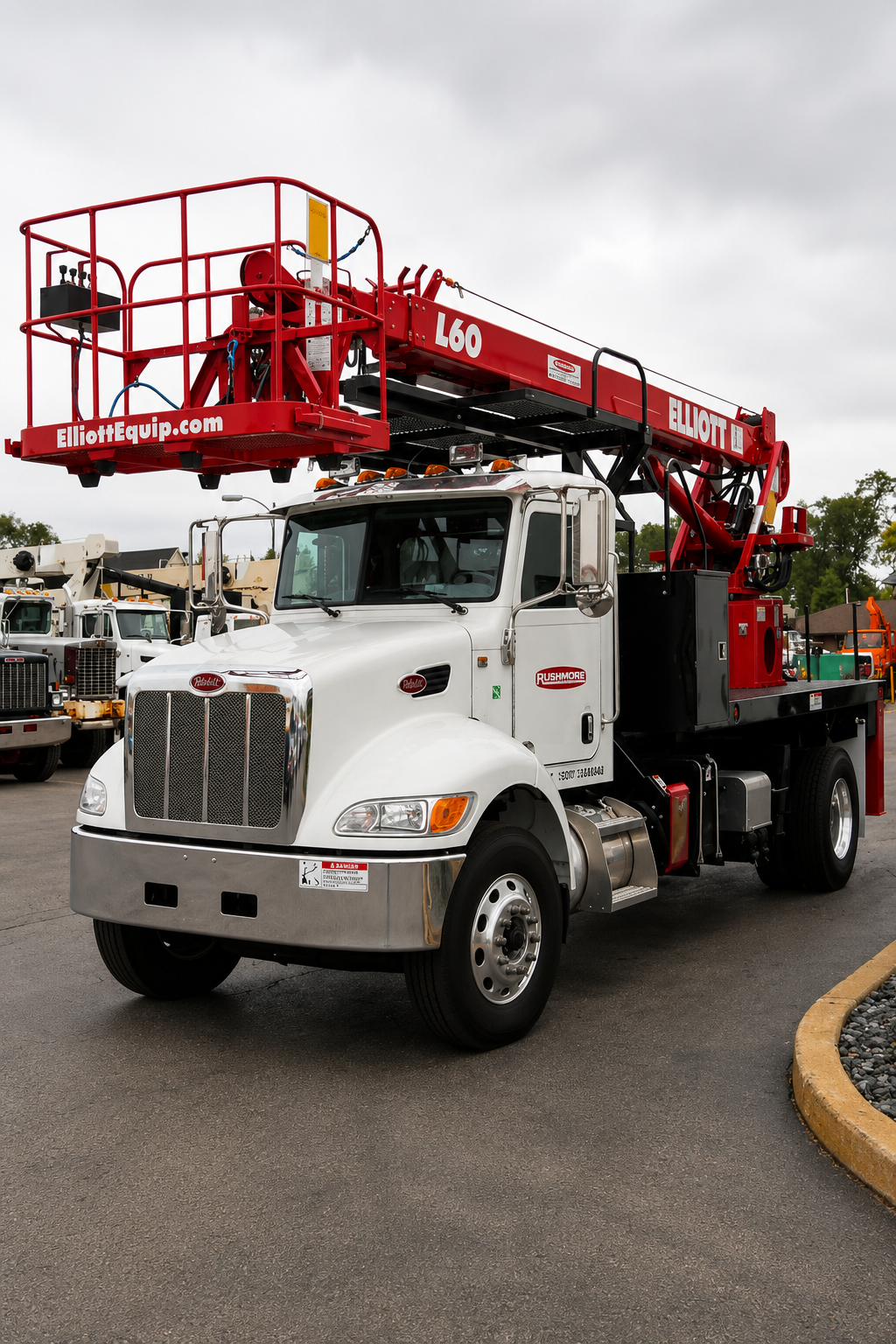

L60R HiReach
Working Height:
63′ / 19,2 m
Working Side Reach:
56′ / 17,1 m
Main Winch Capacity:
5,900 lbs / 2676 kg
63′ / 19,2 m
Working Side Reach:
56′ / 17,1 m
Main Winch Capacity:
5,900 lbs / 2676 kg

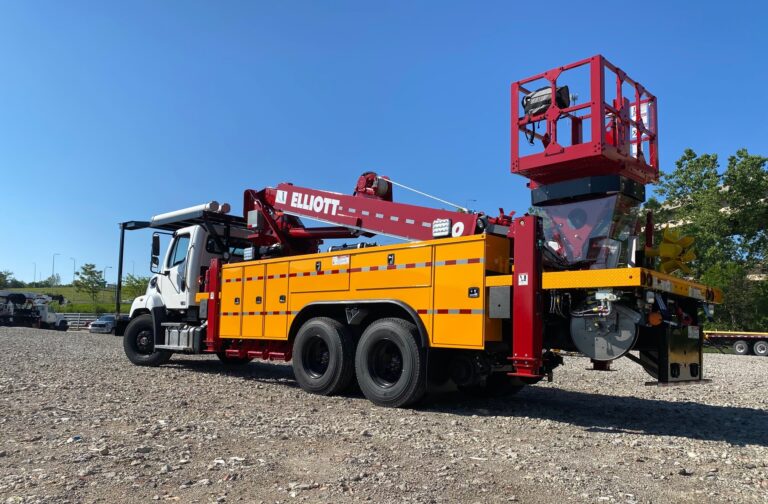

I60F HiReach (46KV)
Working Height:
65′ / 19,8 m
Working Side Reach:
52′ / 15,8 m
Main Winch Capacity:
3,650 lbs / 1656 kg
65′ / 19,8 m
Working Side Reach:
52′ / 15,8 m
Main Winch Capacity:
3,650 lbs / 1656 kg
H60F HiReach
Working Height:
65′ / 19,8 m
Working Side Reach:
49′ / 14,9 m
Main Winch Capacity:
5,900 lbs / 2676 kg
65′ / 19,8 m
Working Side Reach:
49′ / 14,9 m
Main Winch Capacity:
5,900 lbs / 2676 kg
Why Choose an Elliott HiReach?
Start with what you need in an aerial work platform. Other equipment manufacturers might try to mold your needs to their equipment, but at Elliott, we work with you to engineer a most valuable player for your most common job-site requirements. Whether it’s special outriggers, custom toolbox and lighting, or platform productivity tools from our ‘Office in the Sky’ package, Elliott’s engineers will work with you to make sure you have the most cross-functional piece of equipment for your industry.
And, while the features of your HiReach aerial work platform may be unique to your work environment, the bedrock on which we build all of our equipment remains the same. Our full-length, heavy-duty subframe is designed to disperse stress and maximize chassis life. In fact, all of the high-quality components that go into our service vehicles are designed to maximize service life and resale value. That’s why we’re able to back our equipment up with a lifetime structural warranty.
For technical specifications, feel free to download a product brochure for the category that interests you.
HiReach Standard Features
Multi-Functional Capabilities Out of the Box
HiReach multi-functionality lets you do more with a single piece of equipment
ANSI A92.2 Compliance
Every HiReach complies fully with all ANSI A92.2 design and manufacturing guidelines
Fully Hydraulic Boom Extension System
Elliott’s unique product design lets you reach more places from a single set up, or postion truck further from the work area to avoid obstacles
Point and Shoot Telescopic Boom Design
Eliminates tailswing and makes operating the machine easier.
Superior Side Reach Capabilities
Cable and chain free boom provides a smoother and more reliable ride as well as reduced maintenance
Rugged Boom Design
Stands up to the most rigorous applications, ensuring a long life
Designed to Handle Multi-Functional Accessories
Choose from a wide variety of available options to maximize productivity
Oversized Work Platforms
With platforms up to 16 feet long, you can be sure you have the room you need to do your work
EZR Detachable Work Platform
Available on rear mounted models, Elliott’s patented mount design lets you remove your work platform in a matter of minutes, without tools or lifting
DynaSmooth Upper Controls
Sensitive proportional controls provide very precise and smooth functionality
Proportional Joystick Controls
Smooth operation and greater machine control
360 Degree Continuous Rotation
Continuous swivel system prevents hoses from breaking and allows work in any postion front, back or side of truck
Oversized Rotation Bearing and Gearbox
Improves stability, smoothness of operation and increases life of the machine
Heavy Duty Cable Carrier
Available space lets you load up the work platform with a wide range of tool accessories including welding leads, air hoses, washer lines and more.
Full-Length Heavy-Duty Subframe
Available space lets you load up the work platform with a wide range of tool accessories including welding leads, air hoses, washer lines and more.
High-Quality, Off-the-Shelf Components
For easy service and affordable replacement parts
Excellent Resale Value
Elliott’s heavy duty design and high quality components give you an exceptionally long useful life and superior resale value
Lifetime Structural Warranty
Only Elliott backs up its quality with a lifetime structural warranty on everything we build
HiReach Optional Features
Hydraulic Main Boom Winch
Allows you to safely lift materials with your HiReach
Multiple Platform Sizes
Choose from a variety of platform sizes and capacities to fit you, your tools and the way you work
Platform Jib Winch
Acts like an extra set of hands, to let you lift and position loads directly from within the work platform.
Material Handling Jib Winch
Lift and hold loads from the platform. Perfect for keeping your work in front of you
Hand Tool Tray
Molded tray keeps your tools and drinks secure during a long work day.
110V Electrical Outlet
Power your electric tools
Welder Leads to Platform
Connect easily with your bed-mounted welder to avoid having to drag cables into the air or carry the welder in the platform.
Oxy Acetylene Hoses to Platform
Connect easily to your oxy/acetylene tanks on the bed for a secure and safe connection.
Pressure Washer in Platform
Washer tank and pump mounted to the bed with washer hoses routed through the boom and into the platform.
Hydraulic Tool Circuit
Power your hydraulic tools from within the work platform on on the ground. Includes flow control knobs.
10,000 psi Hydraulic Intensifier in Platform
Ramps up hydraulic pressure to allow for the use of high pressure hand tools from within the work platform.
ANFO Hose to Platform
Oversized cable carrier handles a large ANFO hose for explosive placement from within the work platform.
Welder/Generator on Bed
Choose from the top names in gas, diesel or hydraulic powered
Oxy-Acetylene Bottle Holders
Keep you bottles secure and out of the way
Full Pressure Hydraulic Controls
Full pressure hydraulic controls for work that requires non-electrical controls in the work platform
Hydraulically Rotating Platform
Maximizes your effective work area and keeps you facing the job
Multiple Platform Sizes
Choose from a variety of platform sizes and capacities to fit you, your tools and the way you work
Platform Shade
Adds to your comfort and safety by keeping out the sun
Line-X Lined Platform
Simultaneously add protection and comfort by adding Line-X coating to your platform
Fiberglass Work platform
Adds a non-rated electrical barrier to the platform
Control Box Cover
Protects your controls from the elements
Automatic Safety Rotation Lockout
Allows shortjacking of units with out and down outriggers by preventing movement over the non-extended side
EZ-Crib Outriggers
Extra long vertical stroke outriggers give you more ground penetration, minimizing cribbing and allowing setup over guardrails and other challenging places
Line Body Storage Solutions
Clean, one piece compartmentation for your tools and accessories
Rear Step Bumper
Boom Mounted Work Lights
Illuminate your work, increasing efficiency and ability to get extra jobs done
Specialized Safety and Emergency Lighting
Choose from hundreds of illumination and emergency lighting options on your equipment
Conspicuity Striping
Adds visibility to your unit. Great for work in high traffic areas
Custom Paint
We know your HIReach is your brand. We can paint your unit to your exact color scheme
Rail Gear
Elliott can add your choice of rail gear to allow for use of your unit on tracks. Special counterweight packages are also available
