Heavy-Duty Aerial
with Long Reach
and Dual Material
Handling
H90R HIREACH
Heavy-duty boom and platform lifting for the toughest jobs
Built for demanding utility, mining, and infrastructure jobs, the H90 delivers powerful lifting on both the main boom and platform, with wide side reach and rugged construction to handle the toughest work environments.
Suggested industries
Why choose the H90R?
Why choose
the H90R?
EXTRA-LARGE PLATFORM FOR MAXIMUM PRODUCTIVITY

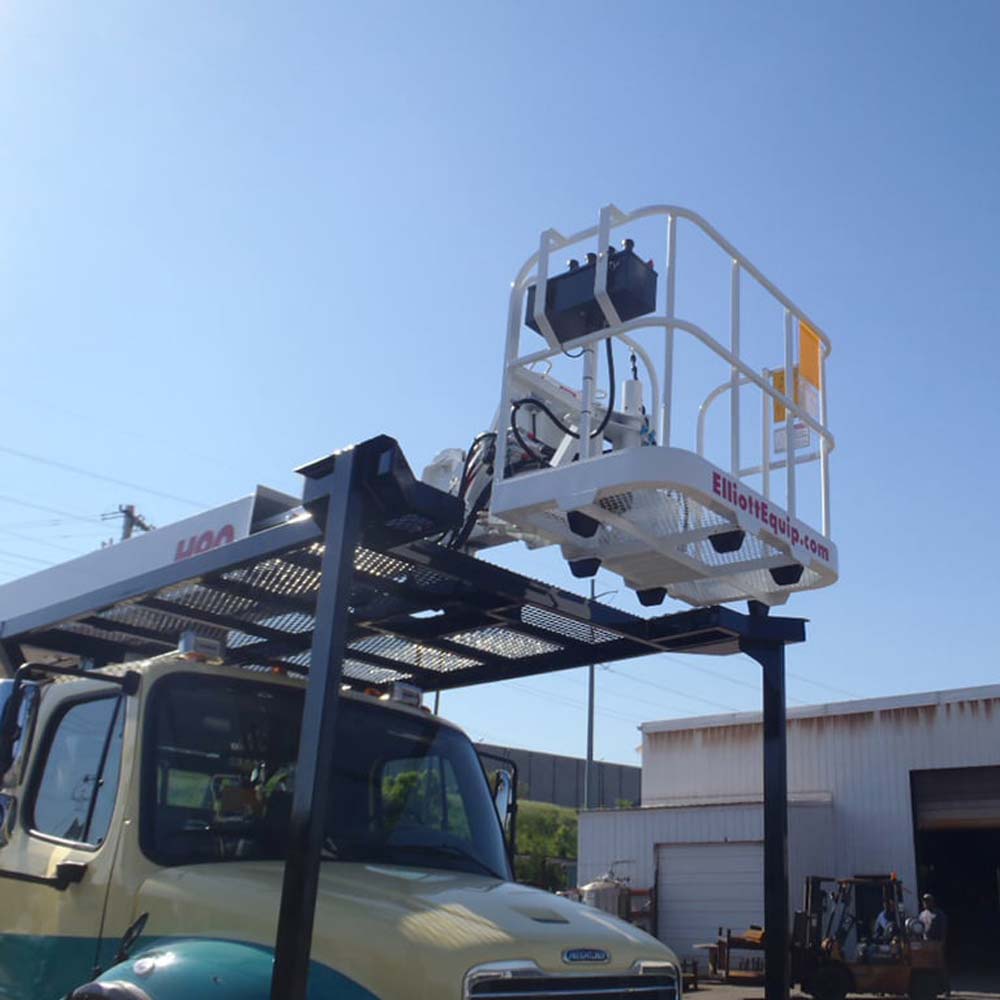

The H90R HiReach features a 40”x60” work platform—double the area of a standard two-worker bucket. This generous workspace improves comfort, allows more tools and materials onboard, and reduces repositioning, which means more work completed in less time.
EZR ROTATING PLATFORM KEEPS YOU FOCUSED ON THE JOB
UNRESTRICTED SIDE REACH WITH ZERO TAILSWING
The H90R’s boom design offers full horizontal reach without any tailswing, making it ideal for tight urban environments and roadside applications. Operators can get more done from a single setup, improving productivity and minimizing disruption.
MATERIAL HANDLING BUILT INTO BOTH PLATFORM & MAIN BOOM
Whether lifting personnel or heavy loads, the H90R’s dual material handling capability ensures maximum utilization. With lifting capacity integrated into both the main boom and platform, this unit adapts to a wide range of tasks without the need for additional equipment.
LIFETIME STRUCTURAL WARRANTY FOR TOTAL PEACE OF MIND
Built with heavy-duty components and engineered to ANSI A92.2 standards, the H90R is backed by Elliott’s lifetime structural warranty. This industry-leading protection underscores the long-term durability and value of your investment.
H90R technical specs
H90R
Technical specs
WORKING HEIGHT
93′ / 28,3 MWORKING SIDE REACH
65′ / 19,8 MBOOM SECTIONS
4PLATFORM TYPE
EZR REMOVABLEPLATFORM CAPACITY
600 LB / 272 KGPLATFORM SIZE
40″ X 60″ / 102 X 152 CMJIB WINCH CAPACITY
500 LB / 227 KGMAIN WINCH CAPACITY
14,000 LB / 6,350 KGOUTRIGGER TYPE FRONT
A-MAINOUTRIGGER SPREAD FRONT
12’6 / 3,8 MOUTRIGGER TYPE REAR
OUT-DOWNOUTRIGGER SPREAD REAR
18′ / 5,5 MUNIT WEIGHT (BARE)
21,000 LB / 9,525 KGOVERALL HEIGHT
13’1” / 4 MRECOMMENDED CAB TO AXLE (CA)
144” / 488 CMRECOMMENDED GVWR
54,000 LB / 24,494 KG93′ / 28,3 M
65′ / 19,8 M
4
EZR REMOVABLE
600 LB / 272 KG
40" x 60" / 102 x 152 CM
500 LB / 227 KG
14,000 LB / 6,350 KG
A-MAIN
12’6 / 3,8 M
OUT-DOWN
18′ / 5,5 M
21,000 LB / 9,525 KG
13’1” / 4 M
144” / 488 CM
54,000 LB / 24,494 KG
MADE IN OMAHA,
TRUSTED BENEFITS
Elliott Equipment is family-owned and proudly American-built in Omaha, Nebraska. Each HiReach is designed for long-term performance with premium hydraulics, Bluetooth diagnostics, and fewer leak points, backed by a lifetime structural warranty.
Customize it for your crew
From lighting installs to bridge inspections, the H90R is made to fit your application. Add sign forks, platform lighting, composite pages, custom paint and other options to meet your job site demands.
Ready to see it in action?
Let’s build the perfect H90R for your team. Contact us today to talk specs, customizations, and dealer availability.
Trusted by Industry Leaders Nationwide
built to last.
lifetime warranty
Elliott Equipment Company specializes not only in flexibility and customization, but also in building some of the toughest equipment on the market. With our standard warranty, the best warranty in the industry, we can guarantee that our trucks are built to last.
Ask about our lifetime structural warranty and comprehensive one-year parts & labor warranty.
Any Questions?
OUR FAQs
Don’t see your question? Contact an expert. We’ll help you get everything sorted out!
What makes the H90R HiReach ideal for high-reach applications?
The H90R offers a 90-foot working height and a 40” x 60” EZR end-mounted rotating platform, allowing for exceptional reach, access, and operator comfort. Its unrestricted side reach and zero tailswing enable efficient setup and operation in tight or congested areas.
Can the H90R handle both personnel and materials?
Yes. The H90R is designed for dual-purpose functionality. It includes material handling capabilities on both the main boom and within the platform, making it suitable for a wide range of construction, maintenance, and utility applications.
Is the H90R compliant with current industry standards?
Absolutely. The H90R meets or exceeds ANSI A92.2 standards in all modes of operation, ensuring safe and compliant use on job sites across multiple industries.
What warranty coverage comes with the H90R?
What makes the H90R HiReach ideal for high-reach applications?
The H90R offers a 90-foot working height and a 40” x 60” EZR end-mounted rotating platform, allowing for exceptional reach, access, and operator comfort. Its unrestricted side reach and zero tailswing enable efficient setup and operation in tight or congested areas.
Can the H90R handle both personnel and materials?
Yes. The H90R is designed for dual-purpose functionality. It includes material handling capabilities on both the main boom and within the platform, making it suitable for a wide range of construction, maintenance, and utility applications.
Is the H90R compliant with current industry standards?
Absolutely. The H90R meets or exceeds ANSI A92.2 standards in all modes of operation, ensuring safe and compliant use on job sites across multiple industries.
What warranty coverage comes with the H90R?
The H90R is backed by Elliott’s industry-leading warranties: a one-year parts and labor warranty and a lifetime structural warranty. This comprehensive coverage reflects the durability and reliability of Elliott equipment.
