HiReach 70′ - 95′

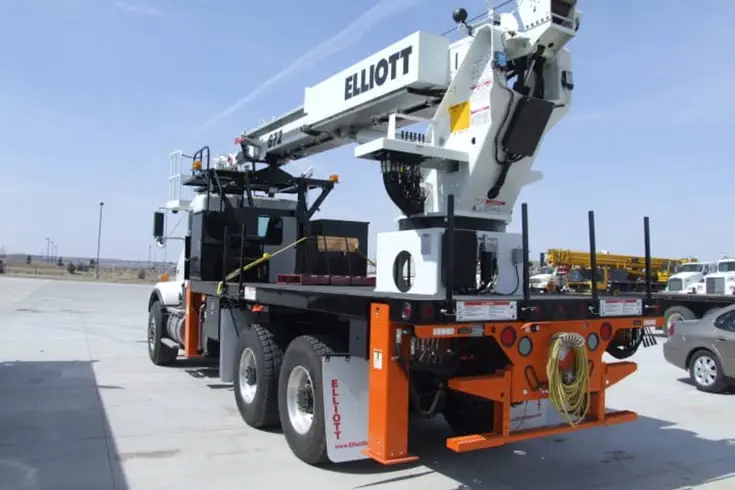

G72R HIREACH

Elliott’s G72R HiReach features a 73′ working height and a 40″ x 60″ two-man work platform with a 500 lb capacity.

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting equipment that can also lift materials, providing a versatile solution for a wide range of industries. All products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

WORKING HEIGHT

73′ / 22,3 M

WORKING SIDE REACH

66′ / 20,1 M

BOOM SECTIONS
4
PLATFORM TYPE

EZR REMOVABLE

PLATFORM CAPACITY

500 LBS / 227 KG

PLATFORM SIZE
40″X60″ / 102X152 CM
JIB WINCH CAPACITY

500 LBS / 227 KG

MAIN WINCH CAPACITY

5,900 LBS / 2676 KG

OUTRIGGER TYPE FRONT

A-TYPE

OUTRIGGER SPREAD FRONT

12’6″ / 3,8 M

OUTRIGGER TYPE REAR

OUT-DOWN

OUTRIGGER SPREAD REAR

18′ / 5,5 M

UNIT WEIGHT (BARE)

18,000 LBS / 8165 KG

OVERALL HEIGHT

12’3” / 3,7M

RECOMMENDED CAB TO AXLE (CA)

156” / 396 CM

RECOMMENDED GVWR
33,000 LBS / 14 969 KG
