Big Performance in a Compact Package
L50 HIREACH
Long Reach and Lifting Power with Outstanding Economy and Low Total Cost of Ownership

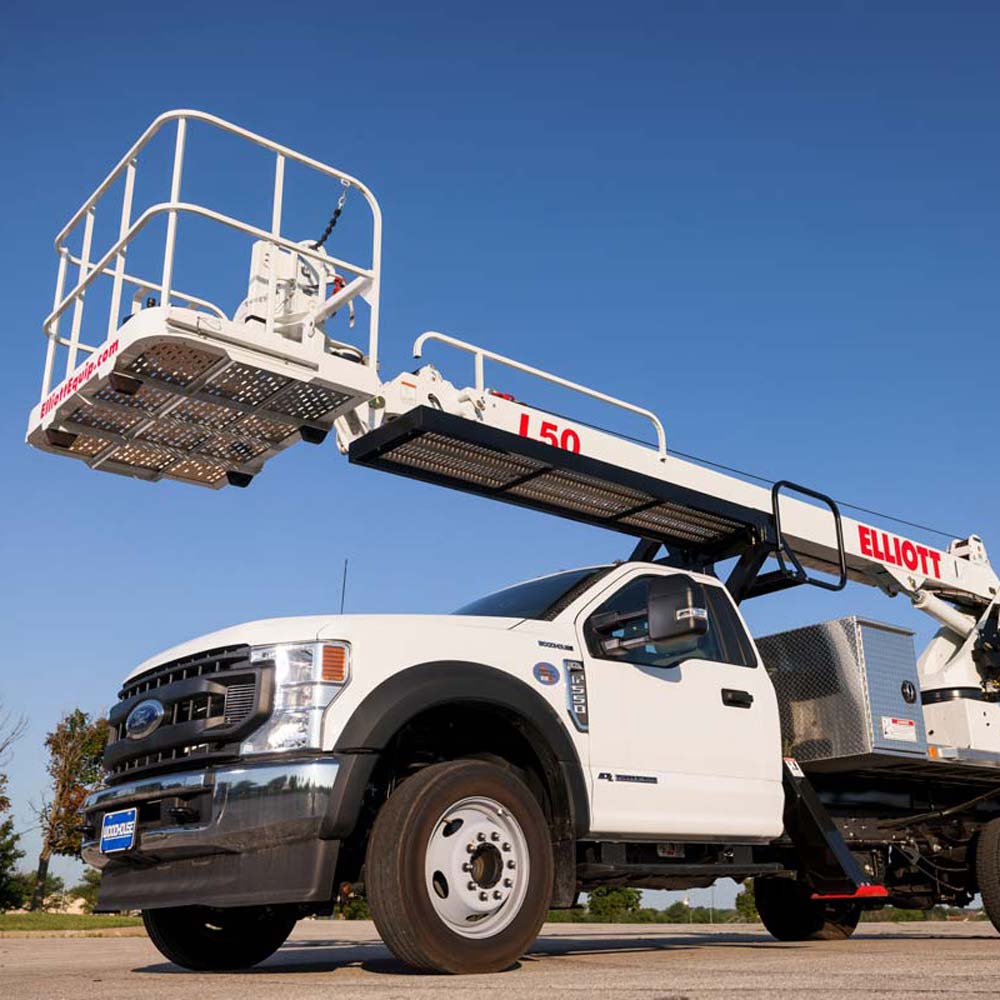

The L50 delivers serious reach and material handling in a compact, easy-to-deploy package that fits in tight spaces and runs efficiently on a super duty chassis. Designed for sign and lighting professionals, government fleets, and industrial users, it combines smooth setup, low operating cost, and Elliott-built durability to get more done with less
Suggested industries
Why choose the L50?
Why choose
the L50?

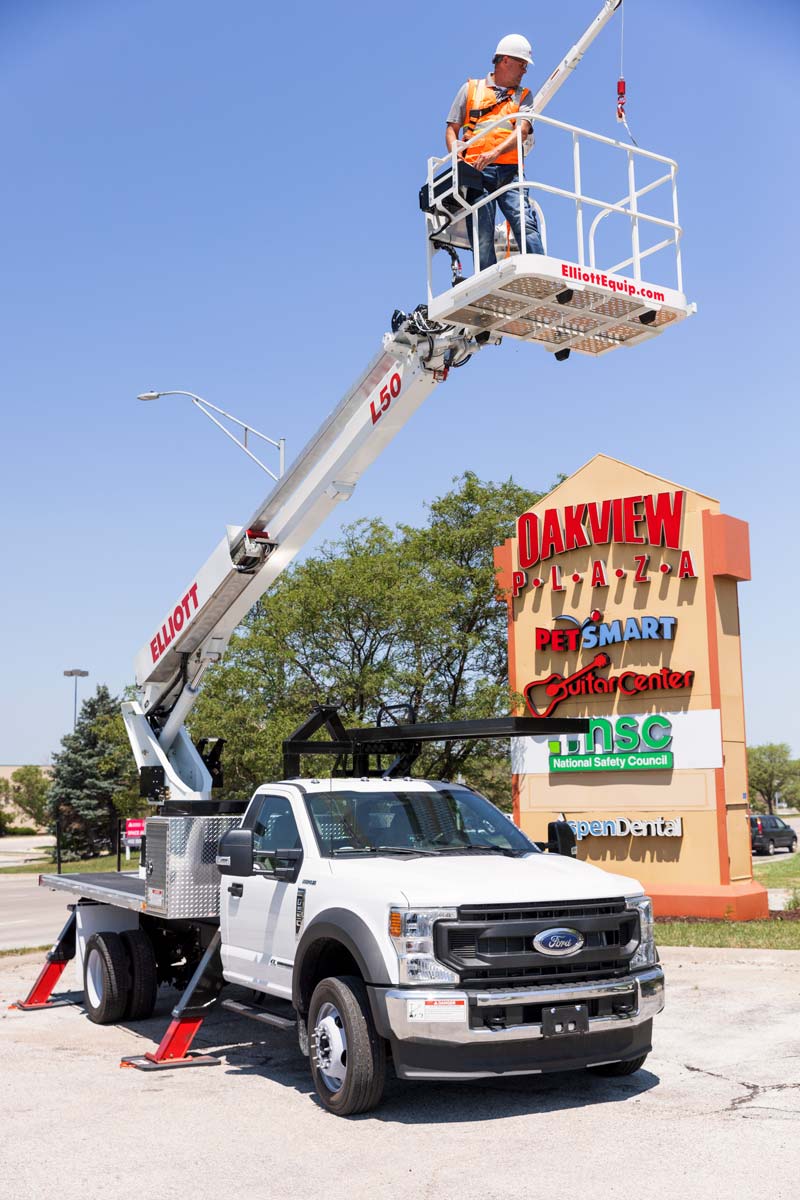

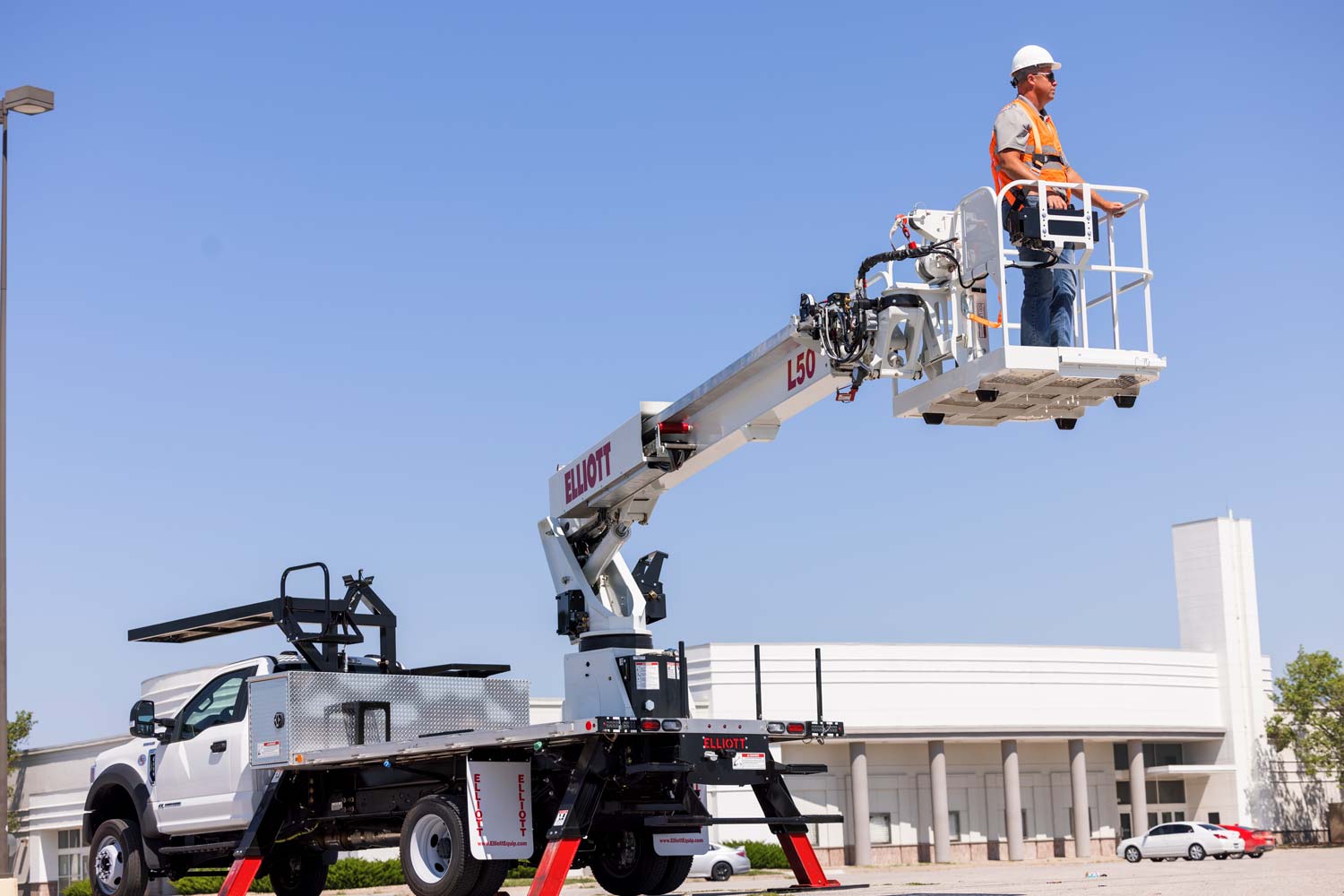

UNMATCHED SIDE REACH & STABILITY
The L50 delivers unrestricted side reach and 360-degree stability, giving operators the confidence to work freely in any direction—without compromising safety or reach capacity.

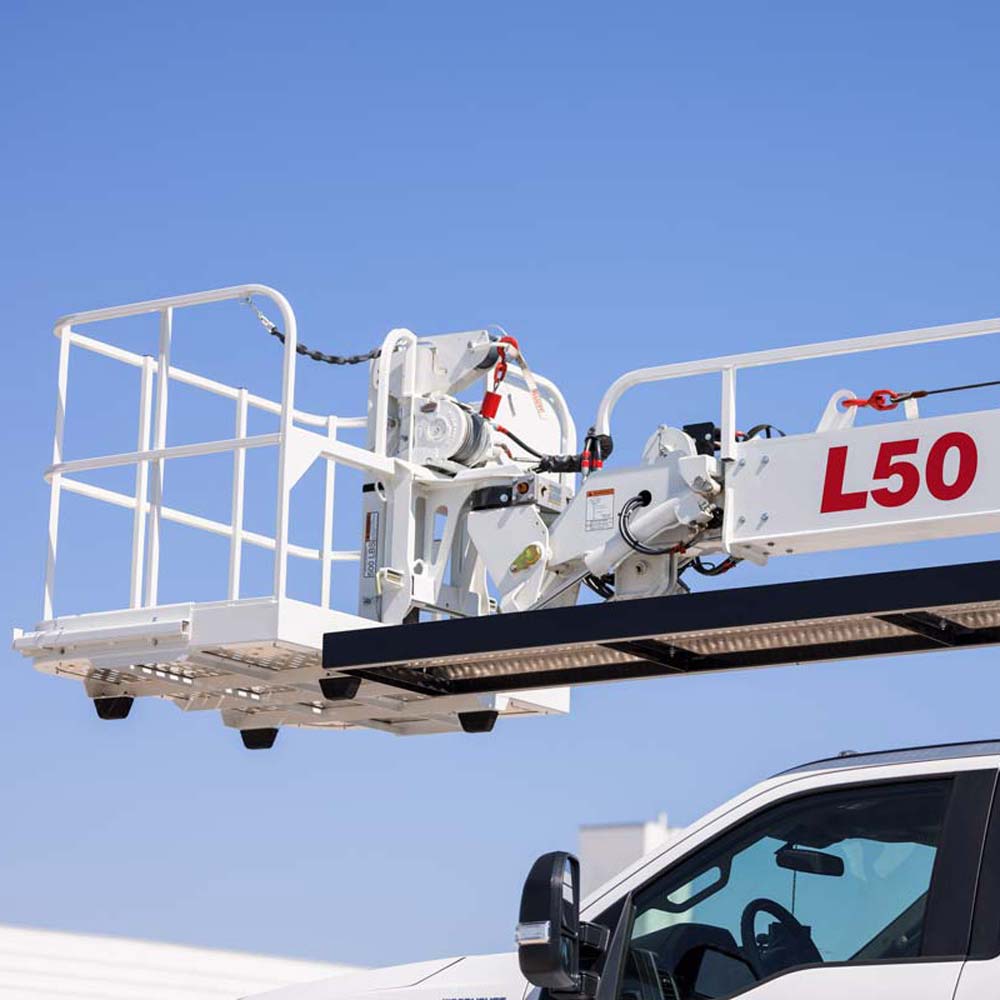

MATERIAL HANDLING MADE EASY
Eliminate the need for extra equipment. The Stow & Go jib offers 500 lb capacity at any angle, while the EZR quick-connect platform system ensures fast setup and efficient material handling from the platform itself.
SMOOTH, PRECISE BOOM CONTROL
Experience effortless “point and shoot” functionality with the L50’s fully hydraulic boom extension and electric/hydraulic upper controls, designed for precision in even the most sensitive applications.
OPERATOR-CONFIGURED CONTROLS
Choose your ideal setup. The L50 offers three upper control options—including three-stick or single-stick configurations—so every operator can work their way with confidence and comfort.
SMART DESIGN FOR LONG-TERM PERFORMANCE
From its 4-plate steel boom for reduced weight and deflection to Bluetooth diagnostics and a wide cable carrier for optimized hose routing, the L50 is built for maximum uptime and a long chassis life.
L50 technical specs
L50
Technical specs
WORKING HEIGHT
50′ / 15,2 MWORKING SIDE REACH
40′ / 12,2 MBOOM SECTIONS
2PLATFORM TYPE
EZR REMOVABLEPLATFORM CAPACITY
600 lb / 272 KGPLATFORM SIZE
40″ X 60″ / 102 X 152 CMJIB WINCH CAPACITY
500 LB / 227 KGMAIN WINCH CAPACITY
2,000 LB / 907 KGOUTRIGGER TYPE FRONT
A FRAMEOUTRIGGER SPREAD FRONT
10’ / 3 MOUTRIGGER TYPE REAR
A TYPEOUTRIGGER SPREAD REAR
10’ / 3 MUNIT WEIGHT (BARE)
8,400 LB / 3810 KGOVERALL HEIGHT
11’7” / 3,5 MRECOMMENDED CAB TO AXLE (CA)
108″ / 274 CMRECOMMENDED GVWR
19,500 LB / 8845 KG50' / 15,2 M
40′ / 12,2 M
2
EZR REMOVABLE
600 lb / 272 kg
40" x 60" / 102 x 152 CM
500 LB / 227 KG
2,000 LB / 907 KG
A FRAME
10' / 3 M
A-FRAME
10' / 3 M
8,400 LB / 3810 KG
11'7" / 3,5 M
108” / 274 CM
19,500 LB / 8845 KG
MADE IN OMAHA,
TRUSTED BENEFITS
Elliott Equipment is family-owned and proudly American-built in Omaha, Nebraska. Each HiReach is designed for long-term performance with premium hydraulics, Bluetooth diagnostics, and fewer leak points, backed by a lifetime structural warranty.
Customize it for your crew

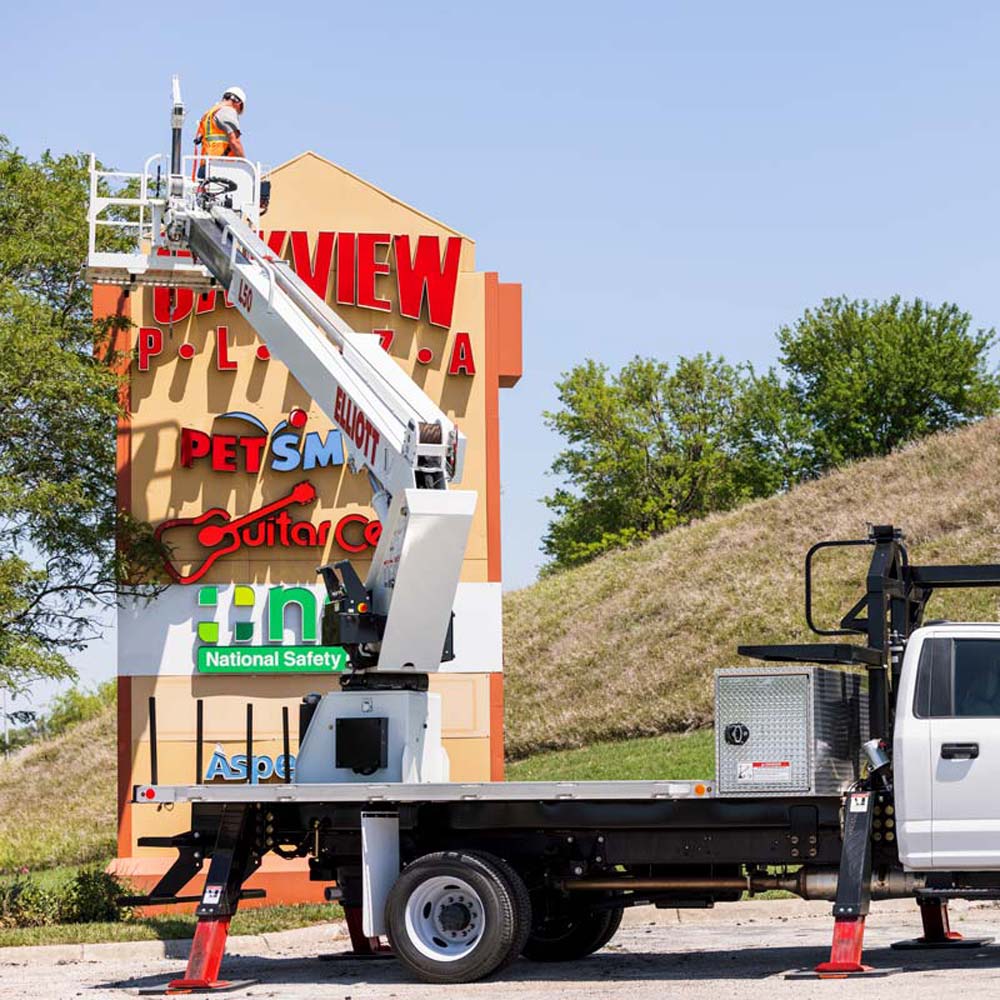

From lighting installs to bridge inspections, the L50 is made to fit your application. Add sign forks, platform lighting, composite pads, custom paint, or whatever your job demands.
Ready to see it in action?
Let’s build the perfect L50 for your team. Contact us today to talk specs, customizations, and dealer availability.
Trusted by Industry Leaders Nationwide
built to last.
lifetime warranty
Elliott Equipment Company specializes not only in flexibility and customization, but also in building some of the toughest equipment on the market. With our standard warranty, the best warranty in the industry, we can guarantee that our trucks are built to last.
Ask about our lifetime structural warranty and comprehensive one-year parts & labor warranty.
Any Questions?
OUR FAQs
Don’t see your question? Contact an expert. We’ll help you get everything sorted out!
What is the maximum working height and platform capacity of the L50?
The L50 HiReach offers a working height of 55 feet (16.8 m) and includes an oversized two-person steel platform with a capacity of up to 600 lbs, allowing crews to work comfortably and safely at elevation.
Can the platform lift materials as well as personnel?
Yes. The L50 features a Stow & Go platform jib with a 500 lb capacity at all angles, enabling operators to lift tools and materials directly from the platform—minimizing trips and improving efficiency.
What type of controls are available for the L50?
Operators can choose from three stick or single stick upper control configurations, paired with electric/hydraulic operation for smooth and precise boom movement tailored to individual preference and application.
How is the L50 optimized for long-term durability and serviceability?
What is the maximum working height and platform capacity of the L50?
The L50 HiReach offers a working height of 55 feet (16.8 m) and includes an oversized two-person steel platform with a capacity of up to 600 lbs, allowing crews to work comfortably and safely at elevation.
Can the platform lift materials as well as personnel?
Yes. The L50 features a Stow & Go platform jib with a 500 lb capacity at all angles, enabling operators to lift tools and materials directly from the platform—minimizing trips and improving efficiency.
What type of controls are available for the L50?
Operators can choose from three stick or single stick upper control configurations, paired with electric/hydraulic operation for smooth and precise boom movement tailored to individual preference and application.
How is the L50 optimized for long-term durability and serviceability?
The L50 is built with a 4-plate steel boom for reduced deflection and weight, a wide cable carrier for organized hose routing, and Bluetooth diagnostics for simplified maintenance. It also includes a full-length subframe with hydraulic outriggers for exceptional stability and chassis longevity.
