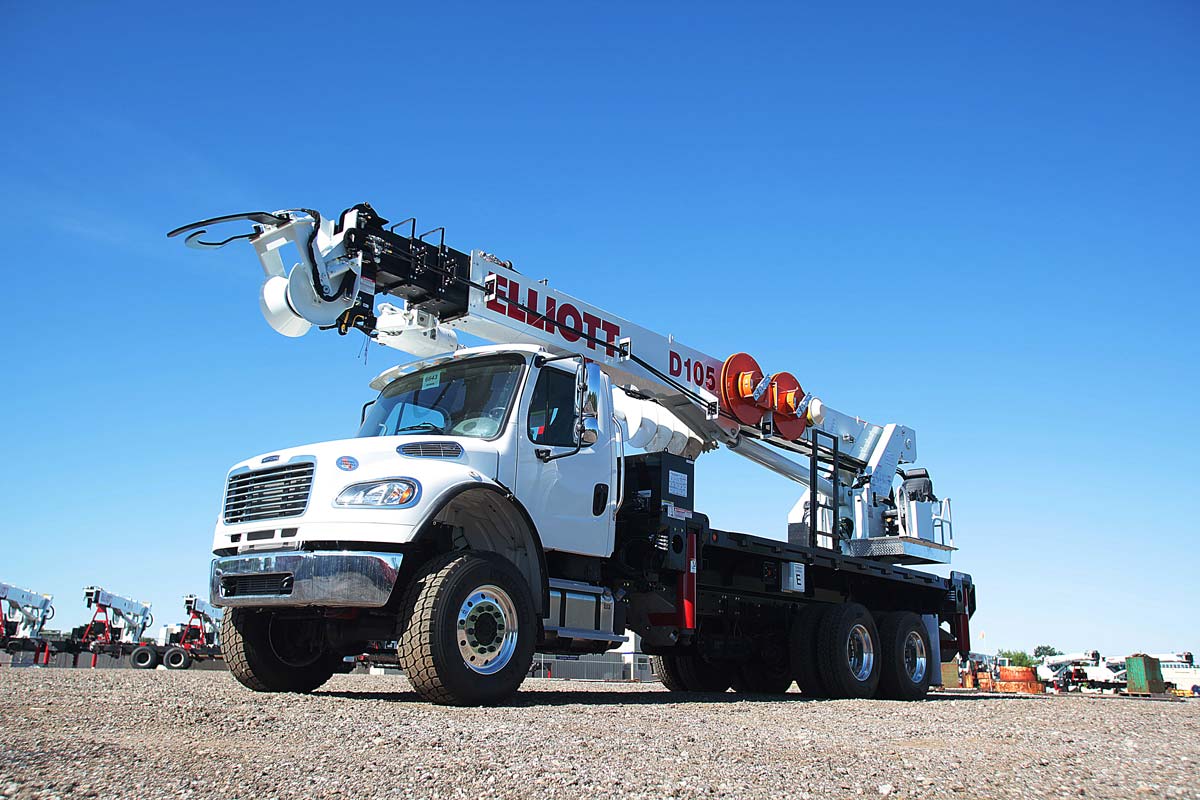

D105 DIGGER DERRICK

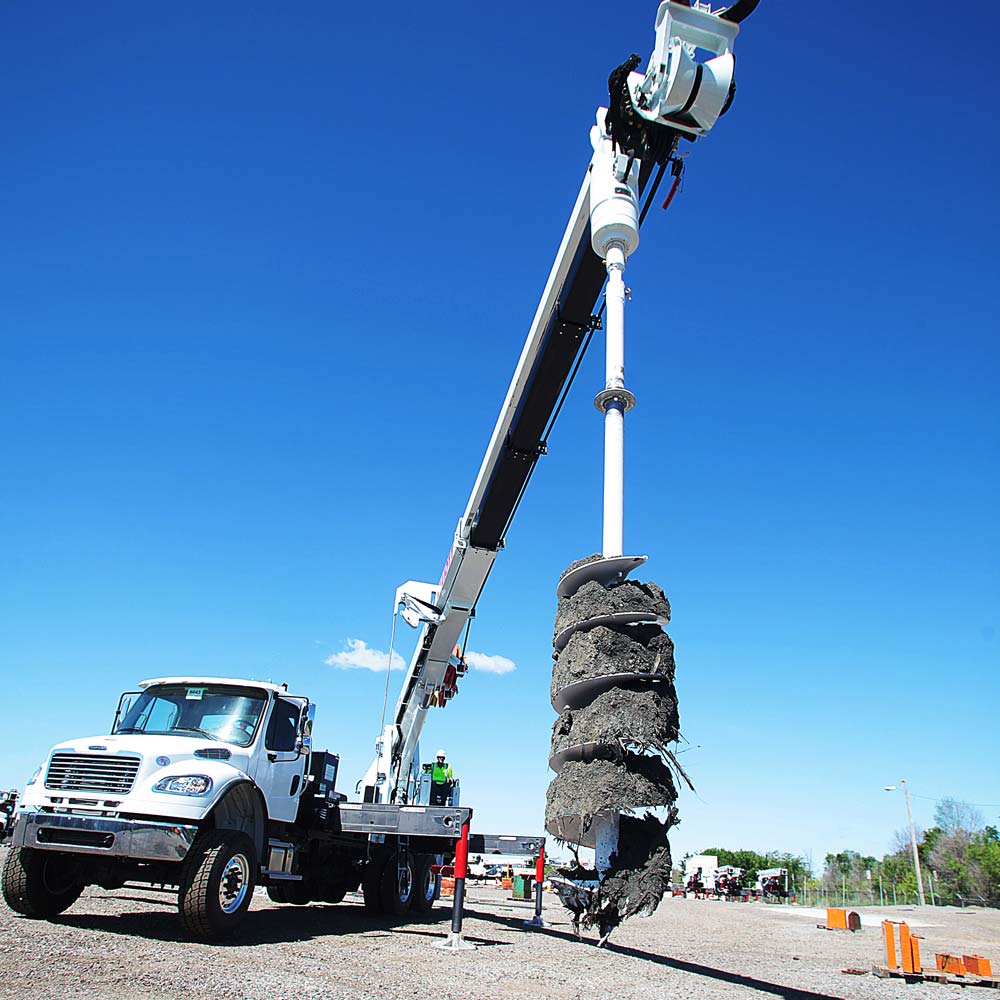

Designed for utility transmission line and construction work, Elliott digger derricks offer best-in-class performance across the board. Whether you are digging a hole, handling a pole or even using our remote-controlled work platform, the D105 Digger Derrick is built to withstand the rigors of your job.
KEY BENEFITS
- Best in class lifting capacity at median digging radius, where you need it the most
- Hydraulic controls for smooth operation and excellent operator feedback
- Mounts on tandem axle chassis for go-anywhere performance
- Widest digging radius in the industry lets you do more work with each setup
- High pinpoint boom geometry for outstanding lifting power ‘out of the hole’ below 0 degrees elevation

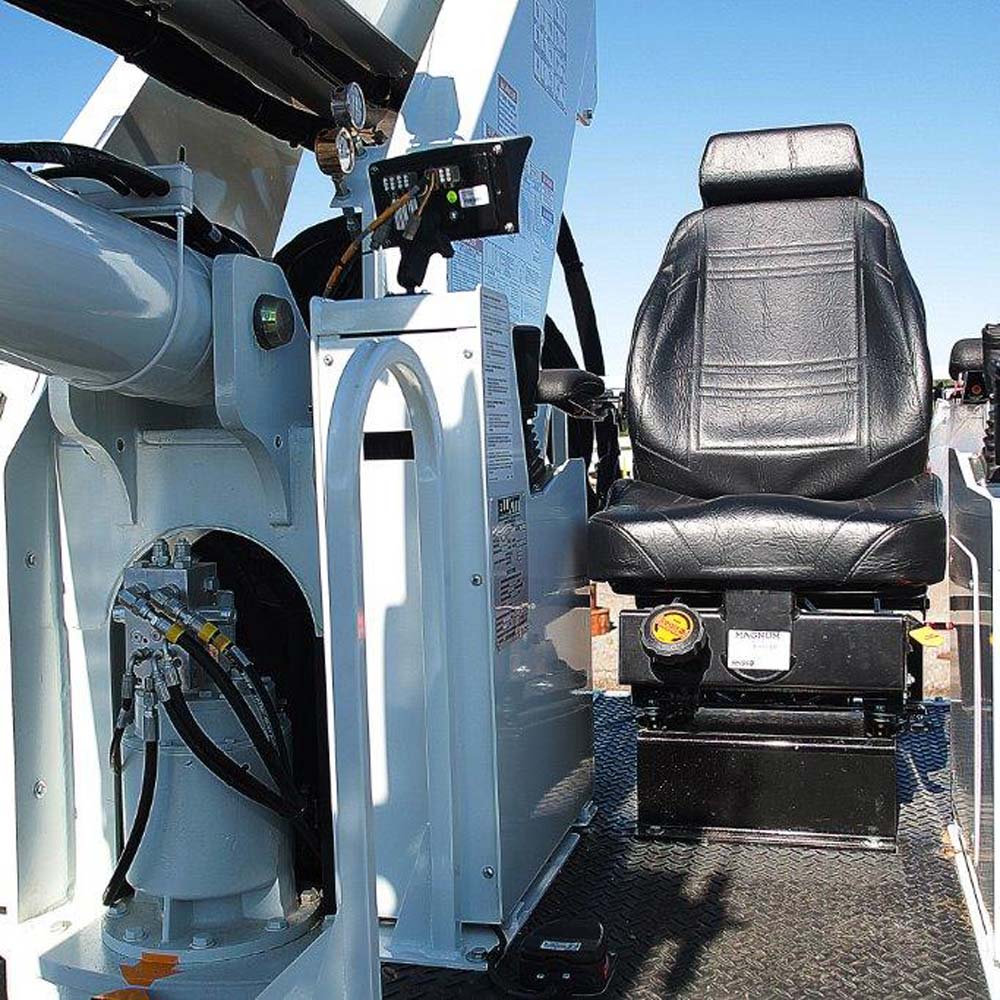

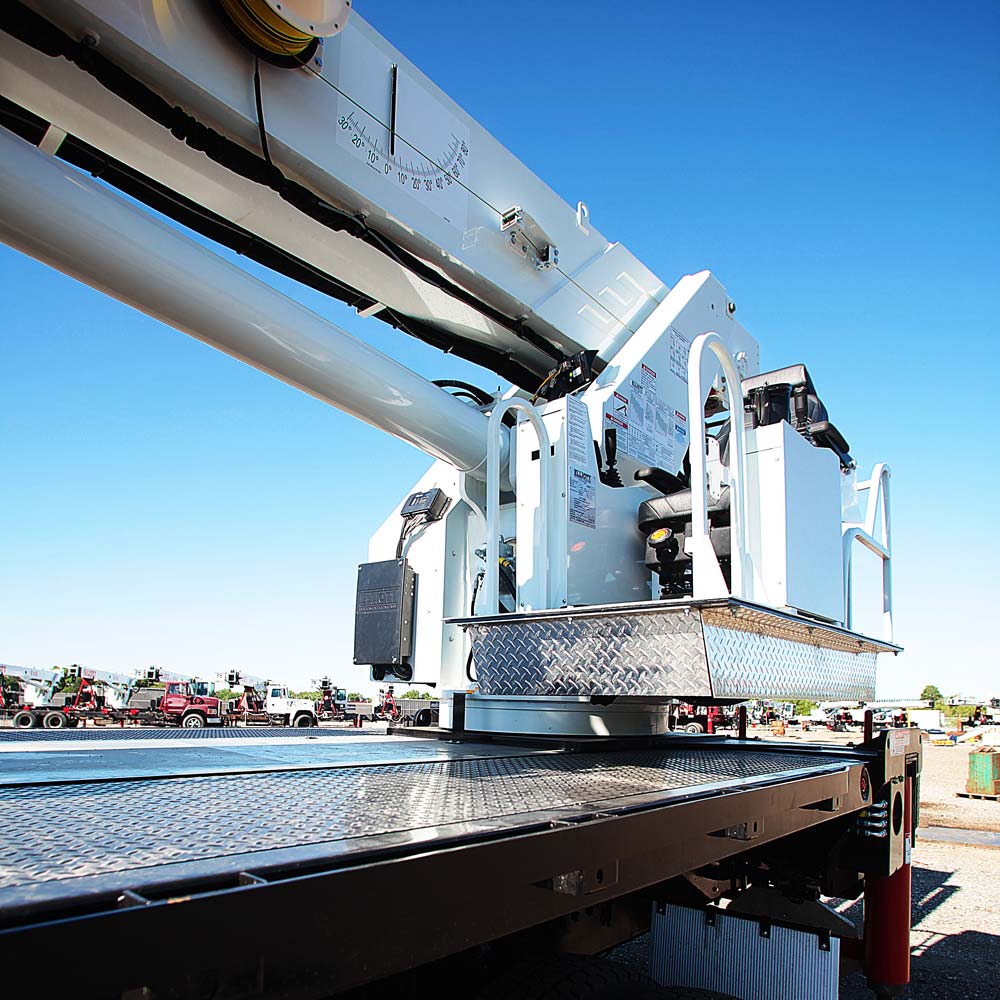

- Ergonomic operator station for operator comfort
Elliott Equipment Company specializes in manufacturing long-lasting and reliable digging, material handling and personnel lifting equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You
Technical Specs
SHEAVE HEIGHT (MAXIMUM)
107’/32,6 M
SHEAVE HEIGHT (RETRACTED)
40’/12,2 M
HORIZONTAL REACH (MAXIMUM)
92’/28 M
HORIZONTAL REACH (INTERMEDIATE)
42’/12,8 M
HORIZONTAL REACH (RETRACTED)
26’/7,9 M
LIFTING CAPACITY (MAXIMUM)
50,000 LB/22 679 KG
LIFTING CAPACITY @ 10’ RADIUS
30,000 LB/13 608 KG
BOOM ELEVATION LIMITS
-8/+80 DEGREES
WINCH SINGLE LINE PULL
12,000 LB/5443 KG
BOOM ROTATION
360 DEGREES CONTINUOUS
DIGGER MOTOR TORQUE
20,000 FT-LB/27 116 NM
DIGGER SPEED (HIGH/LOW)
80 RPM / 35 RPM
DIGGING RADIUS (MAXIMUM)
41’/12,5 M
DIGGING RADIUS (MINIMUM)
24’/7,3 M
OUTRIGGER CONFIGURATION
OUT-DOWN
46,000 lb/20 865 kg
OUTRIGGER SPREAD (MID-SPAN)
13’11”/4,2 M
CERTIFICATION
ANSI A10.31 FOR DIGGER DERRICKS
