BoomTruck 26 - 36 Ton Lifting Capacity

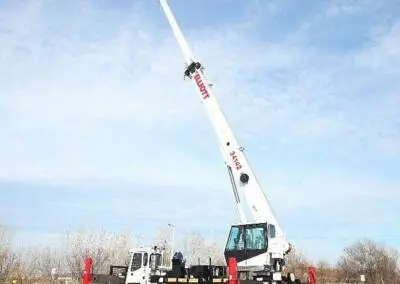

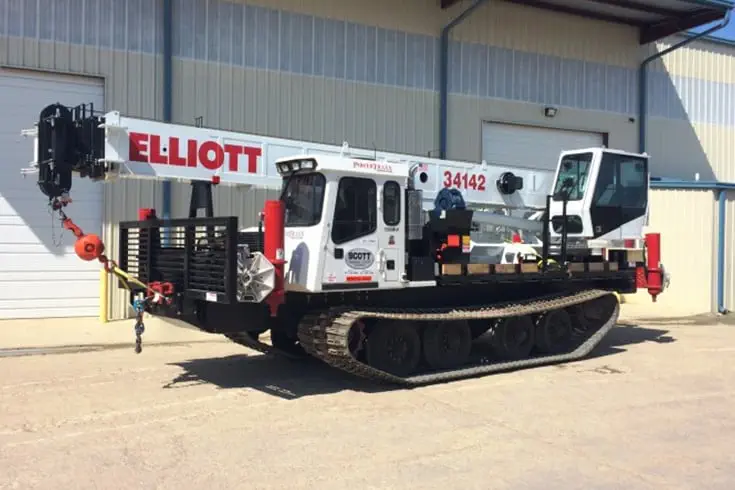

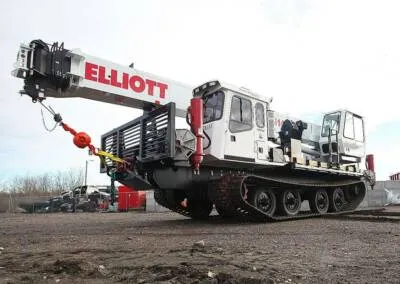

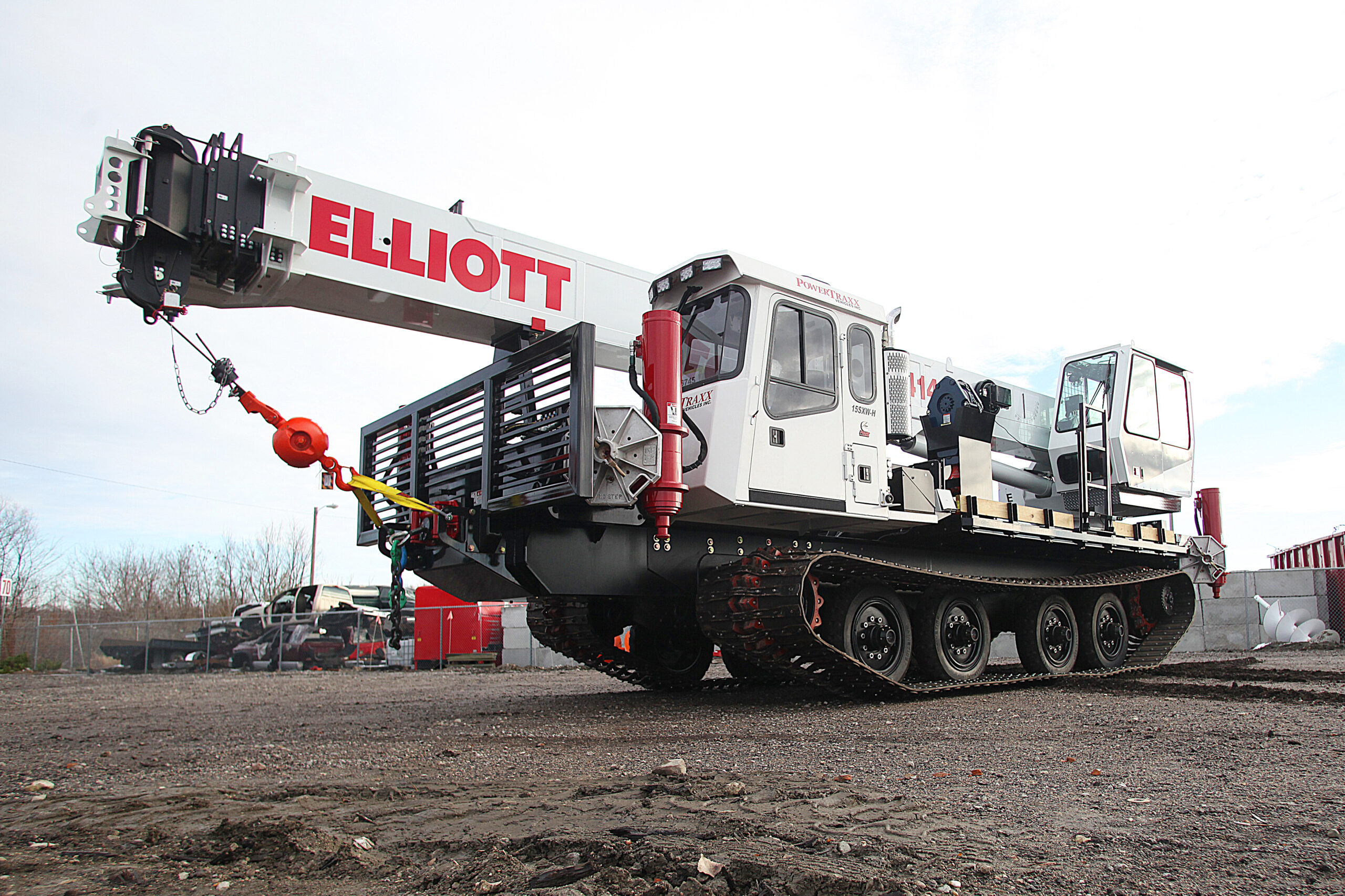

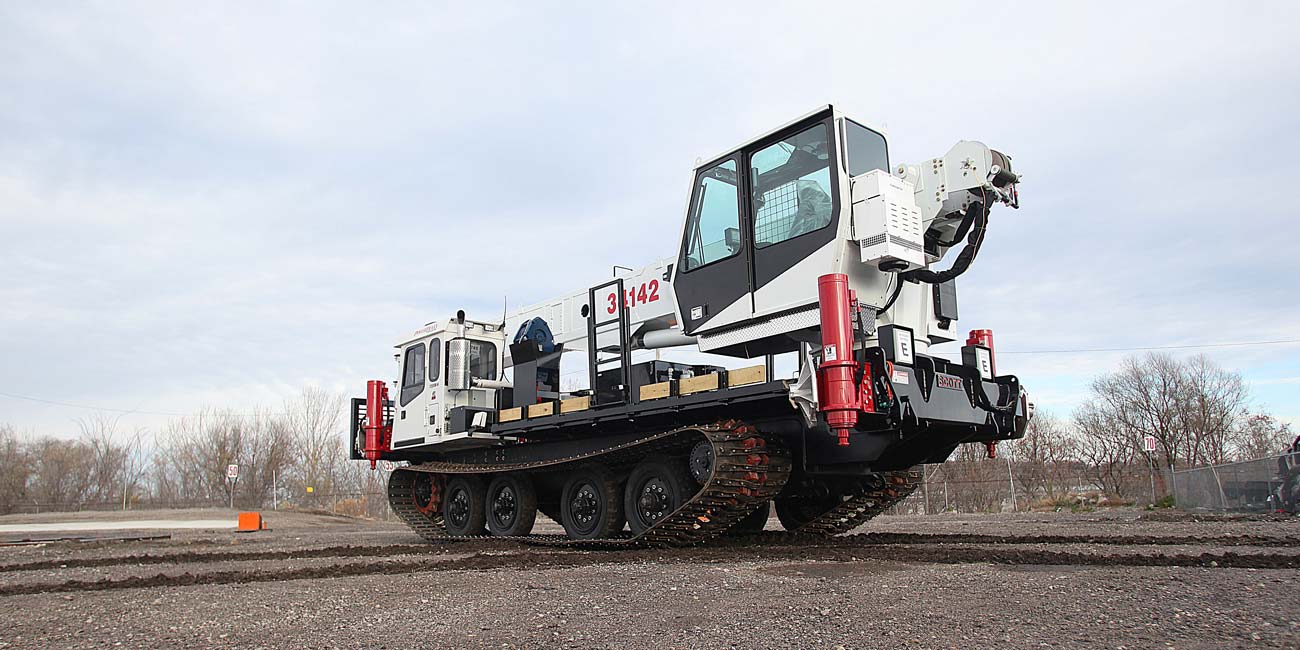

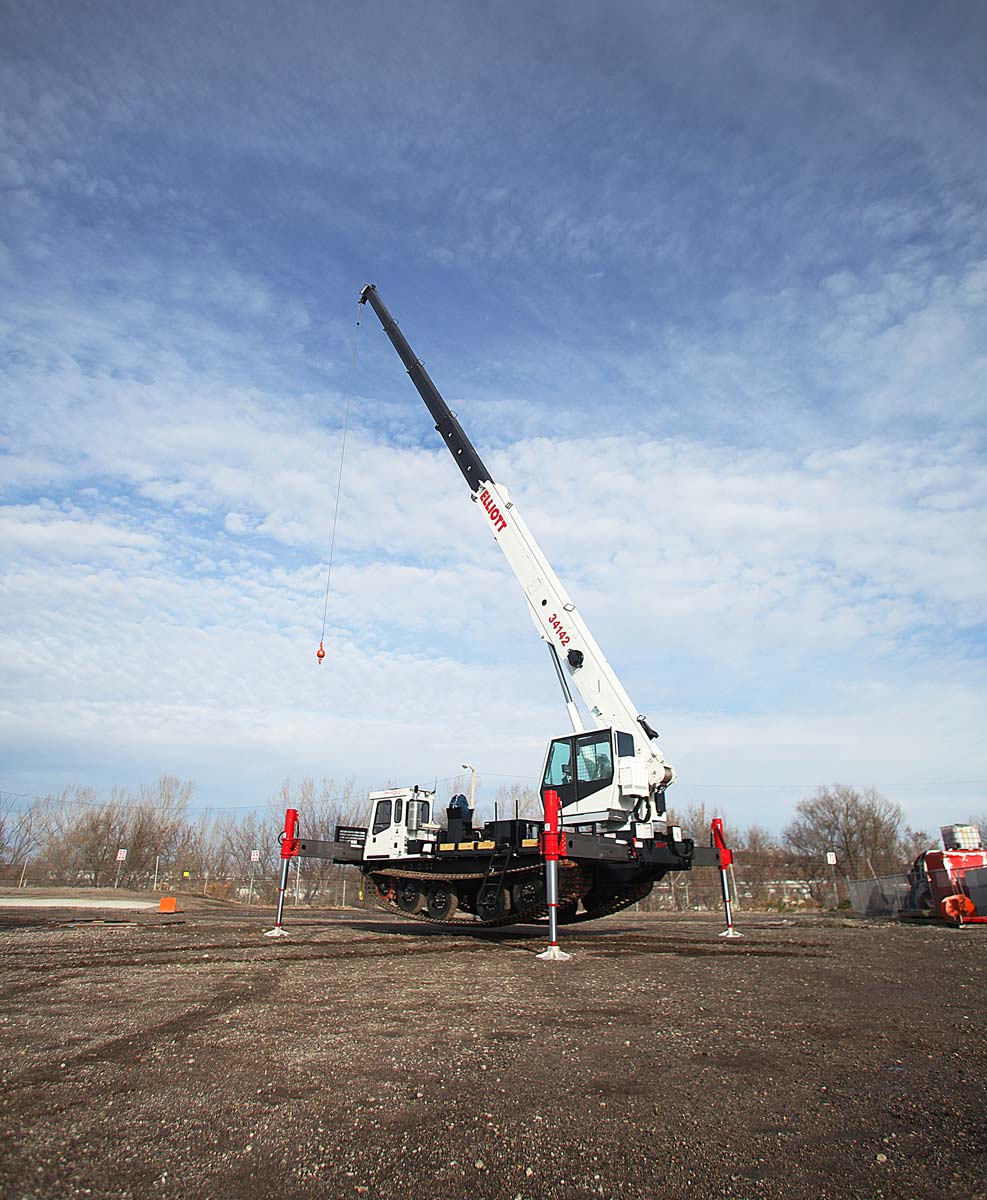

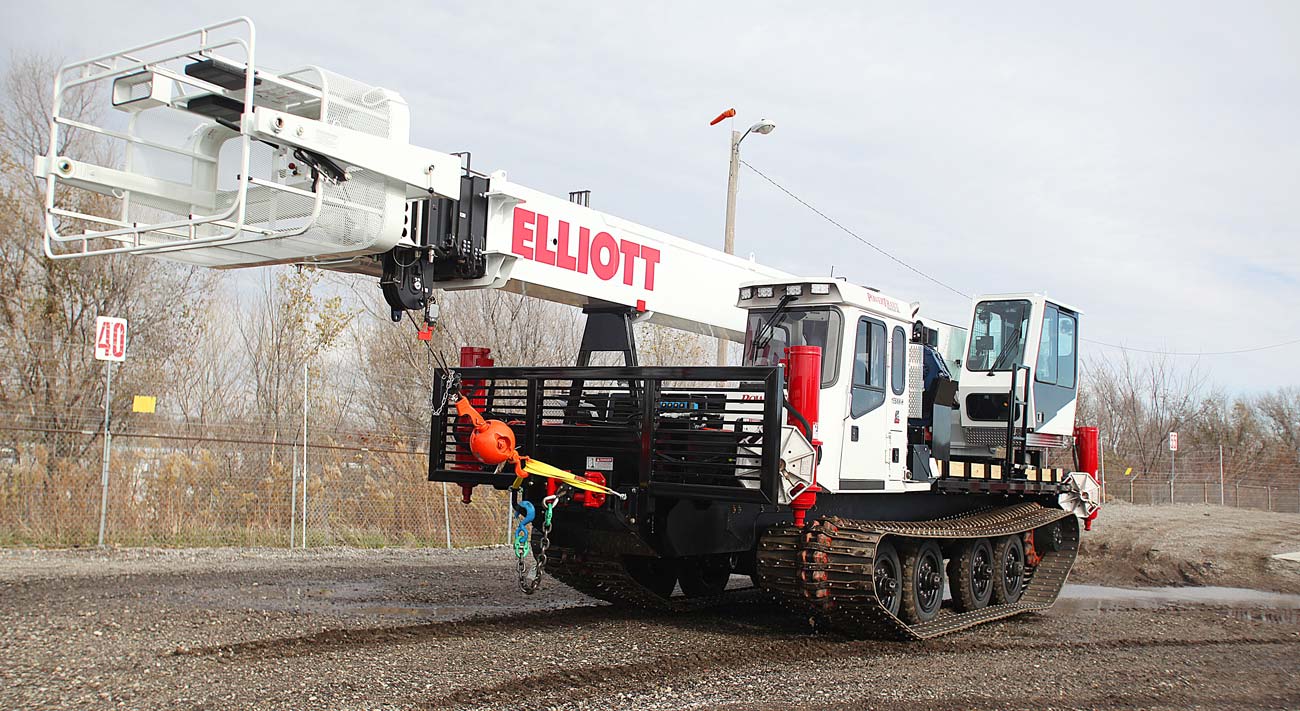

34142 BOOMTRUCK

Elliott’s 34142 BoomTruck is a rugged partner, ready to help you do your job day in and day out. Featuring Elliott’s Ride Around control console to make it easy to see your work, and backed by the best warranty in the industry, the 34142 can be configured to meet the specific needs of your application.

KEY BENEFITS

  • Proven design ensures reliability and maximizes uptime

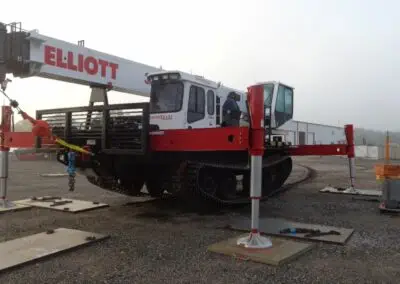

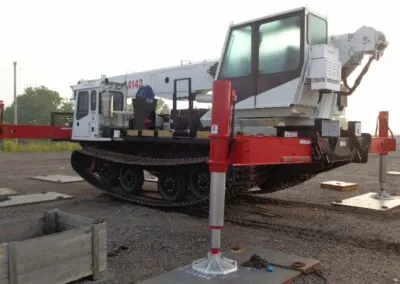

  • Out and down main and vertical secondary outriggers provide setup flexibility
  • DynaSmooth hydraulic system delivers outstanding user feedback and precise control
  • Heavy-duty boom tip design adds strength when using jibs
  • User-friendly graphic LMI interface
  • Friction-free jib extension for smooth deployment and stowage
  • Proprietary boom pad design ensures smooth boom operation
  • Two-year parts and labor warranty
  • Lifetime structural warranty for your peace of mind

Elliott Equipment Company specializes in manufacturing long-lasting and reliable material handling and personnel lifting equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

LIFTING CAPACITY
68,000 LB / 30 844 KG
BOOM LENGTH

142′ / 43,3 M

BOOM SECTIONS
5
JIB LENGTHS

32′-49′ / 9,7 - 15 M

MAXIMUM TIP HEIGHT

201′ / 61,3 M

WINCH BARE DRUM PULL
12,800 LB / 5806 KG
WINCH SINGLE LINE PULL
9,060 LB / 4109 KG

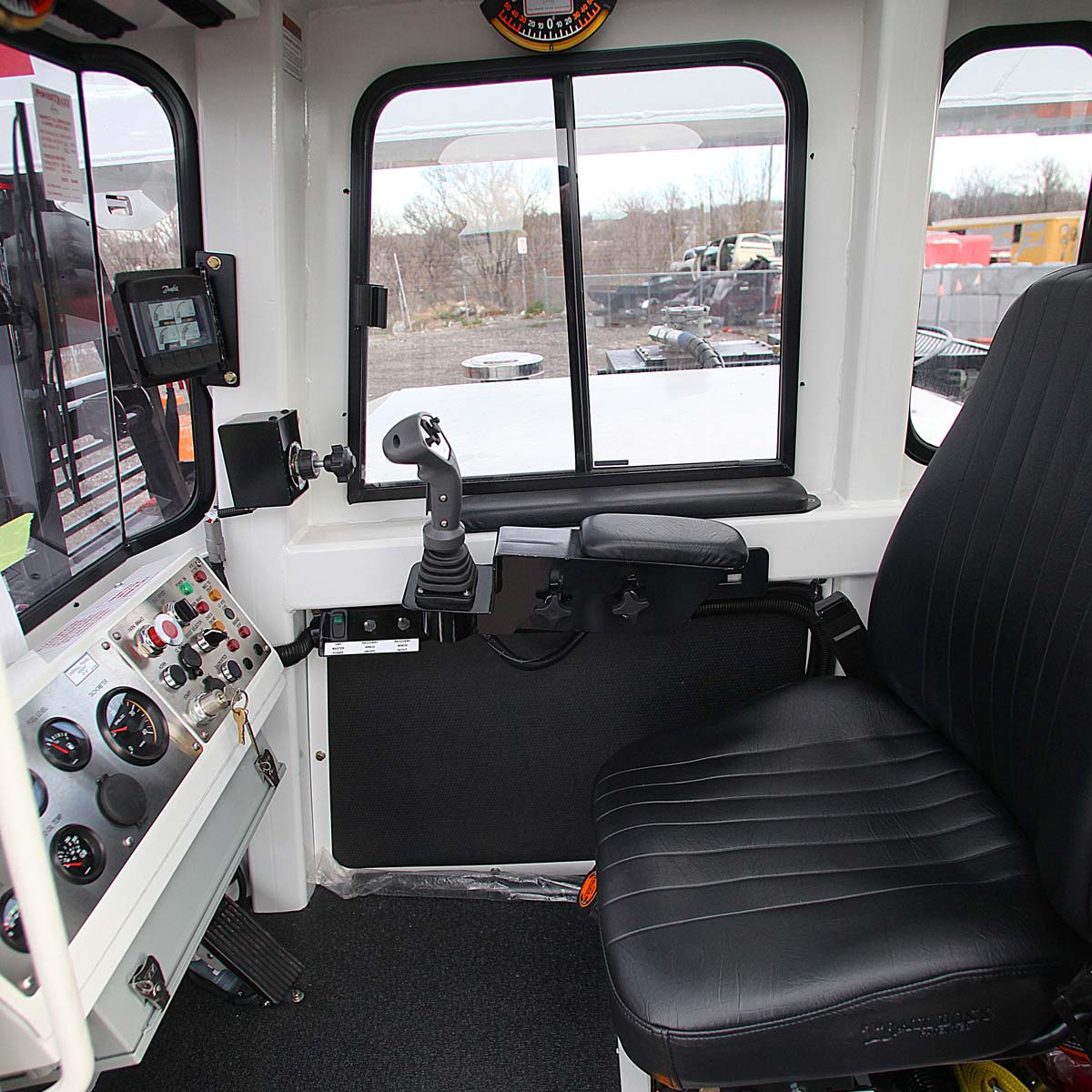

OPERATOR CONTROLS

ROTATING SEATED CAB

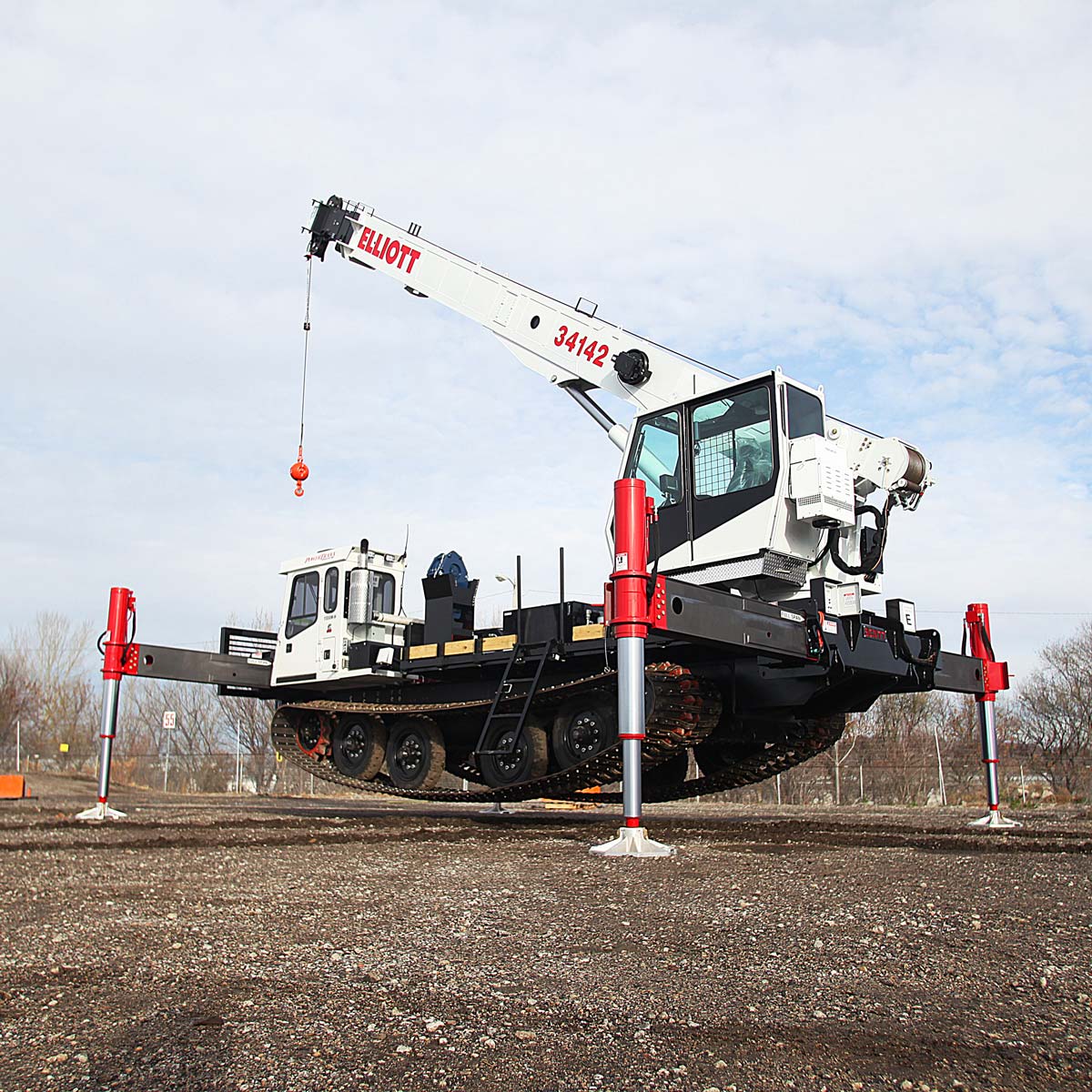

OUTRIGGER TYPE FRONT
OUT-DOWN
OUTRIGGER SPREAD FRONT
22’4” / 6,8 M
OUTRIGGER TYPE REAR
OUT-DOWN
OUTRIGGER SPREAD REAR
22’4” / 6,8 M
UNIT WEIGHT (BARE)

38,600 LB / 17 508 KG

OVERALL HEIGHT
12’6″ / 3,8 M
RECOMMENDED CAB TO AXLE (CA)
TRACK VEHICLE
RECOMMENDED GVWR
40,000 LB / 18 144 KG
