BoomTruck 26 - 36 Ton Lifting Capacity

32117R BOOMTRUCK

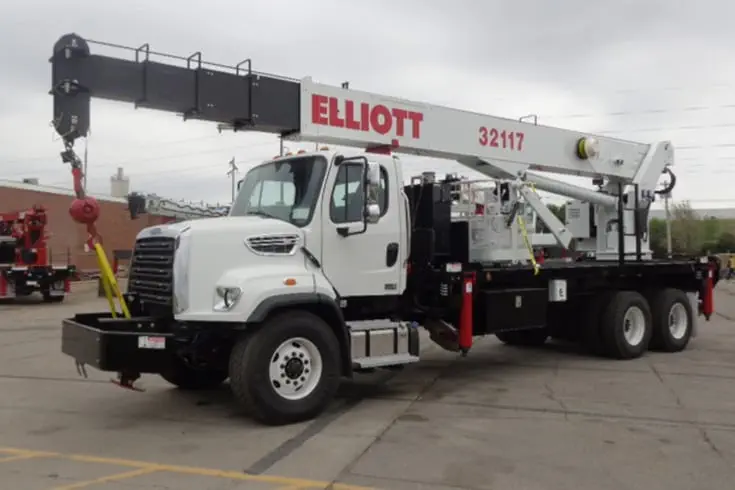

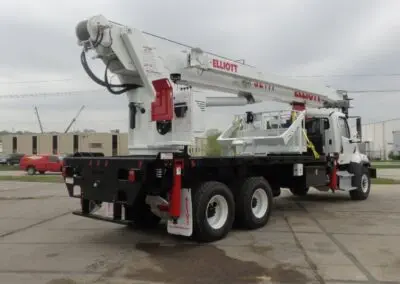

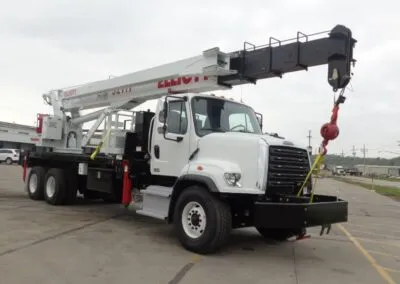

Elliott’s 32117R BoomTruck features a 32-ton lifting capacity, a 117′ telescopic boom, and a rear mounted turret with multiple control station configurations.

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting equipment that can also lift materials, providing a versatile solution for a wide range of industries. All products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

LIFTING CAPACITY
64,000 LBS / 29 030 KG
BOOM LENGTH
117’ / 35,6 M
BOOM SECTIONS
4
JIB LENGTHS
24’ / 7,3 M
MAXIMUM TIP HEIGHT
153′ / 46,6 M
WINCH BARE DRUM PULL
12,800 LBS / 5806 KG
WINCH SINGLE LINE PULL
9,060 LBS / 4109 KG
OPERATOR CONTROLS
ROTATING STANDUP
OUTRIGGER TYPE FRONT
OUT-DOWN
OUTRIGGER SPREAD FRONT
20′ / 6 M
OUTRIGGER TYPE REAR
OUT-DOWN
OUTRIGGER SPREAD REAR
20′ / 6 M
UNIT WEIGHT (BARE)
30,800 LBS / 13 971 KG
OVERALL HEIGHT
13’5″ / 4,1 M
RECOMMENDED CAB TO AXLE (CA)

192″ / 488 CM

RECOMMENDED GVWR
60,000 LBS / 27 215 KG
