BoomTruck 26 - 36 Ton Lifting Capacity

30105-D BOOMTRUCK

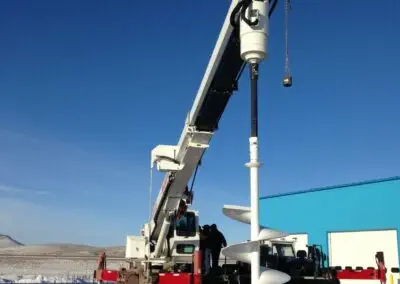

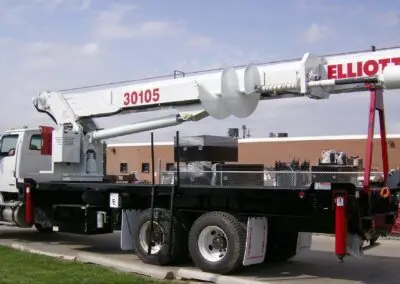

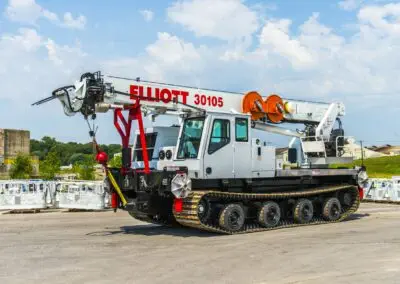

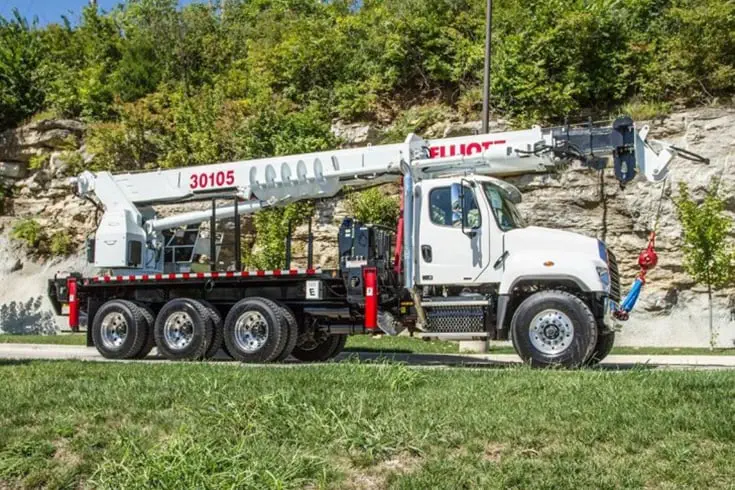

Elliott’s 30105-D BoomTruck features a 30-ton lifting capacity, a 105′ telescopic boom, and a 20,000 ft/lb hydraulic auger with wireless radio remote controls featuring an integrated LMI display.

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting equipment that can also lift materials, providing a versatile solution for a wide range of industries. All products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

LIFTING CAPACITY
60,000 LBS / 27 215 KG
BOOM LENGTH
105’ / 32 M
BOOM SECTIONS
4
JIB LENGTHS
26’, 26-45’ / 8, 8-13,7 M
MAXIMUM TIP HEIGHT
162′ / 49,4 M
WINCH BARE DRUM PULL
12,800 LBS / 5806 KG
WINCH SINGLE LINE PULL
9,060 LBS / 4109 KG
OPERATOR CONTROLS
ROTATING STANDUP OR CAB
OUTRIGGER TYPE FRONT
OUT-DOWN
OUTRIGGER SPREAD FRONT
20′ / 6 M
OUTRIGGER TYPE REAR
OUT-DOWN
OUTRIGGER SPREAD REAR
20′ / 6 M
UNIT WEIGHT (BARE)

29,785 LBS / 13 510 KG

OVERALL HEIGHT

13′ / 4 M

RECOMMENDED CAB TO AXLE (CA)

204″ / 518 CM

RECOMMENDED GVWR
60,000 LBS / 27 215 KG

Interested in speaking with an Elliott representative about This BoomTruck?
