BoomTruck 10 - 18 Ton Lifting Capacity

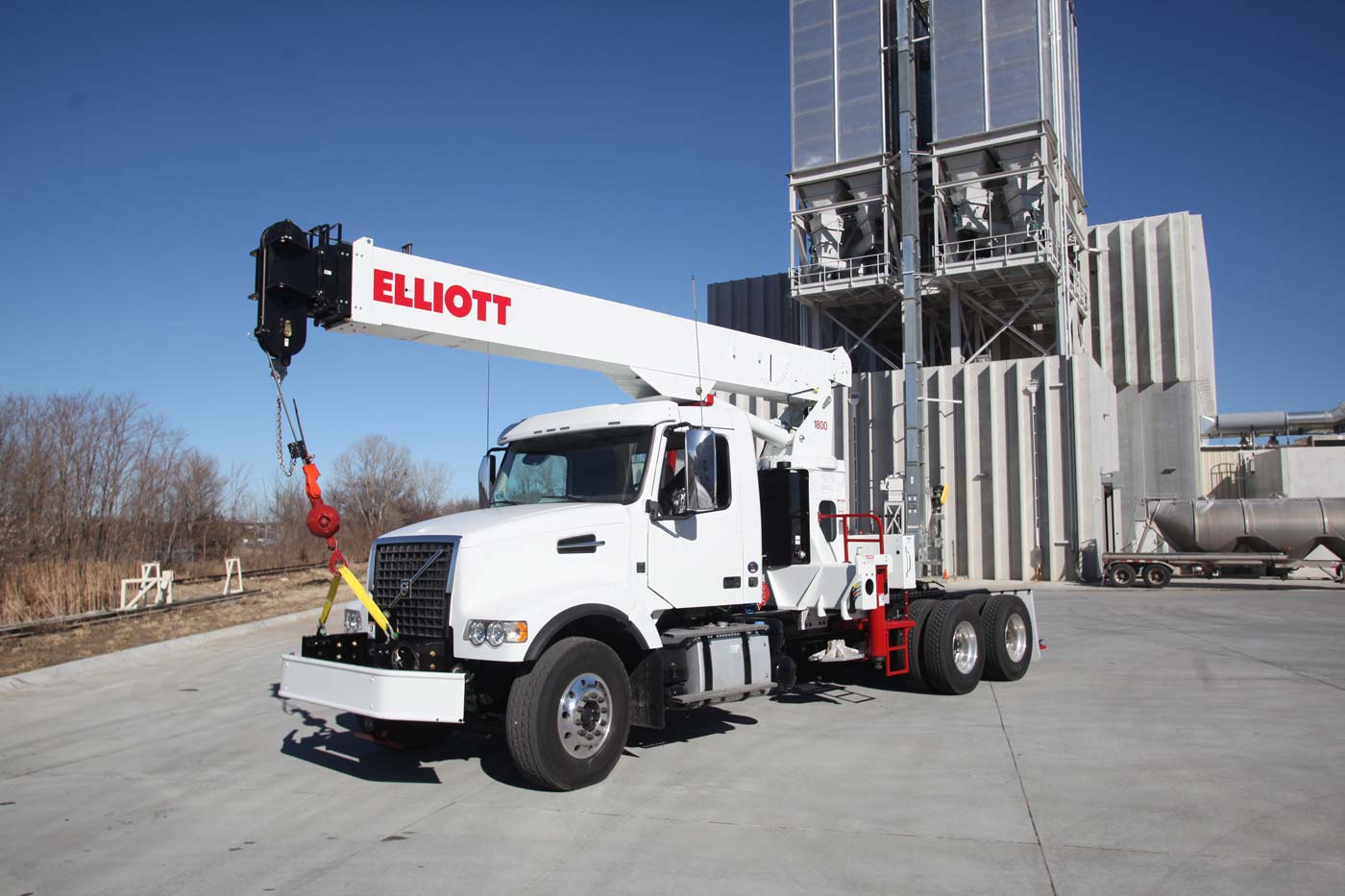

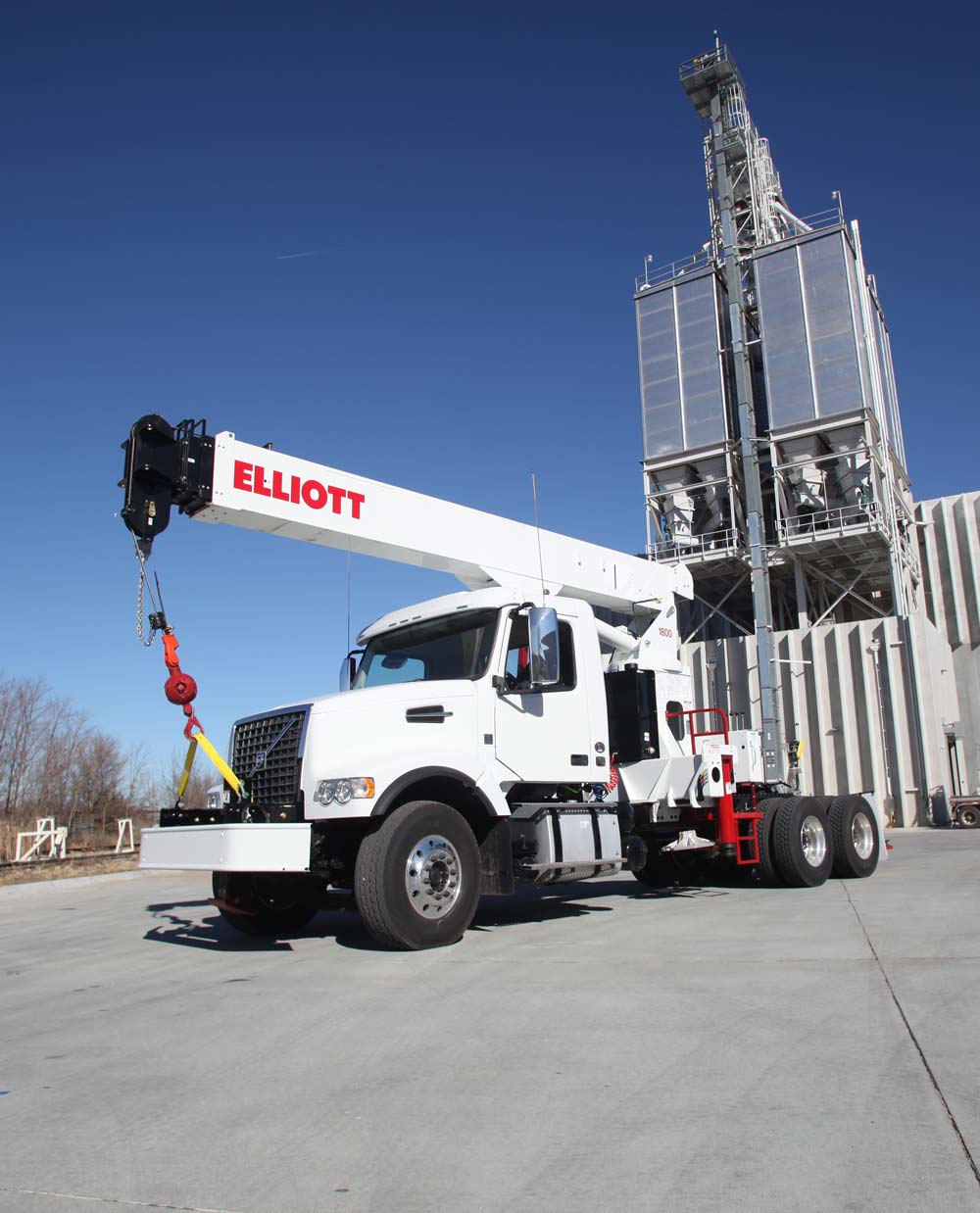

1881TM BOOMTRUCK

Designed by the truss industry for the truss industry, Elliott’s 1881 is packed with features to make your job easier.

KEY BENEFITS

  • Proven design ensures reliability and maximizes uptime

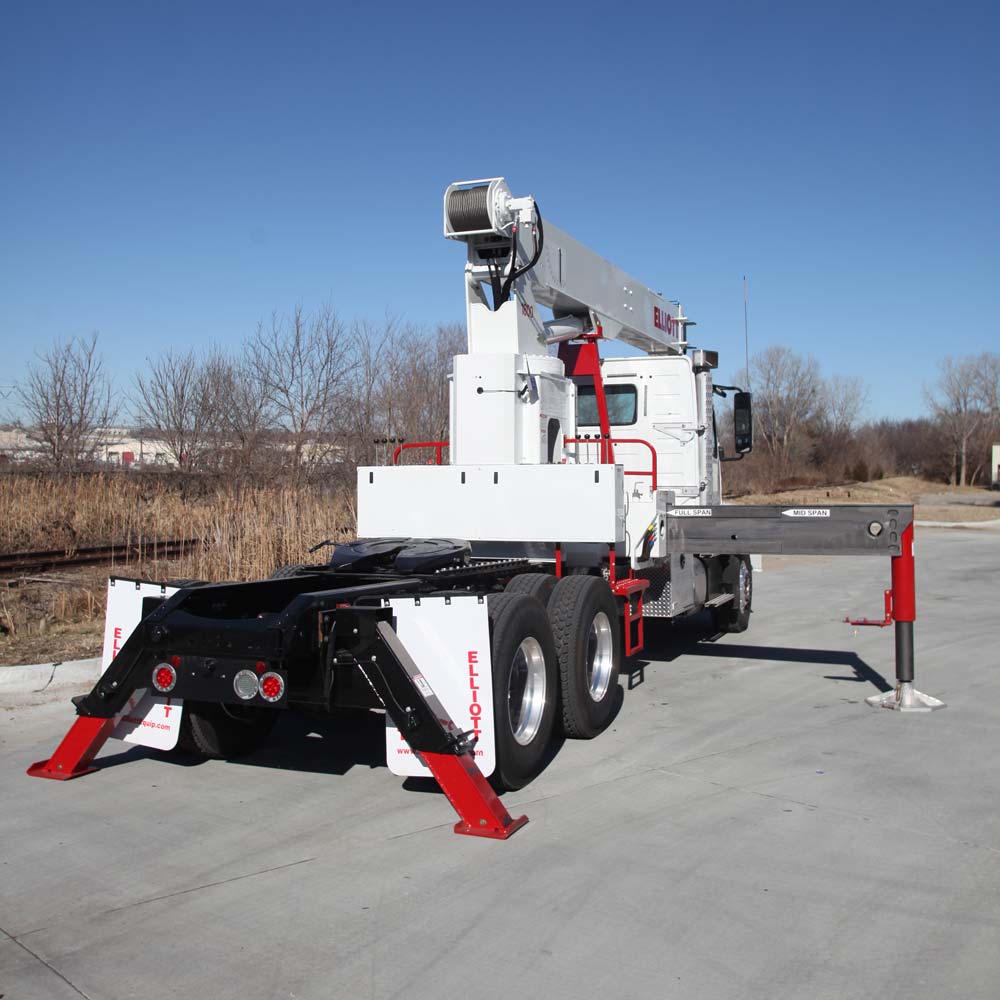

  • Out and down main and vertical secondary outriggers provide setup flexibility
  • DynaSmooth hydraulic system delivers outstanding user feedback and precise control
  • Winch stow control conveniently located at front bumper to reduce cycle time
  • Hydraulic overload system eliminates the need for an LMI, simplifying operation
  • Radio anti-two-block eliminates risk of snagging
  • Proprietary boom pad design ensures smooth boom operation
  • Two-year parts and labor warranty
  • Lifetime structural warranty for your peace of mind

Elliott Equipment Company specializes in manufacturing long-lasting and reliable material handling and personnel lifting equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

LIFTING CAPACITY
36,000 LB / 16 329 KG
BOOM LENGTH

81 ’/ 24,7 M

BOOM SECTIONS

5

MAXIMUM TIP HEIGHT

91′ / 27,7 M

WINCH BARE DRUM PULL
12,800 LB / 5806 KG
WINCH SINGLE LINE PULL
9,600 LB / 4354 KG
OPERATOR CONTROLS

DUAL STANDUP

OUTRIGGER TYPE FRONT
OUT-DOWN
OUTRIGGER SPREAD FRONT

20′ / 6,1 M

OUTRIGGER TYPE REAR

“A” STAB

OUTRIGGER SPREAD REAR

10′ / 3 M

RECOMMENDED CAB TO AXLE (CA)

178″ / 452 CM

RECOMMENDED GVWR

60,000 LB / 27 215 KG
