BoomTruck 10 - 18 Ton Lifting Capacity

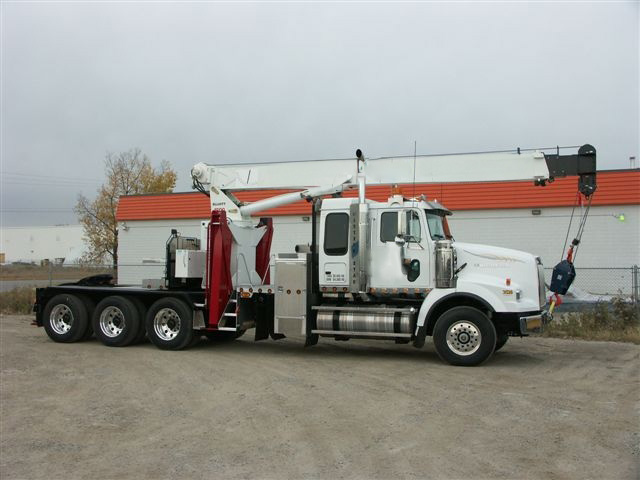

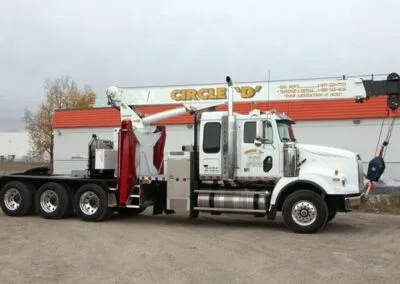

1860 BOOMTRUCK
Elliott’s 1860 BoomTruck is a rugged partner, ready to help you do your job day in and day out. Backed by the best warranty in the industry, the 1860 can be configured to meet the specific needs of your application.
KEY BENEFITS
- Proven design ensures reliability and maximizes uptime
- DynaSmooth hydraulic system delivers outstanding user feedback and precise control
- Steel boom sheaves eliminate risk of distortion or ‘egging’ under load
- Proprietary boom pad design ensures smooth boom operation
- Two-year parts and labor warranty
- Lifetime structural warranty for your peace of mind
Elliott Equipment Company specializes in manufacturing long-lasting and reliable material handling and personnel lifting equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You
Technical Specs
LIFTING CAPACITY
36,000 LB / 16 329 KG
BOOM LENGTH
60’ / 18,3 M
BOOM SECTIONS
3
JIB LENGTHS
20’ / 6,1 M
MAXIMUM TIP HEIGHT
90′ / 27,4 M
WINCH BARE DRUM PULL
12,800 LB / 5806 KG
WINCH SINGLE LINE PULL
9,600 LB / 4354 KG

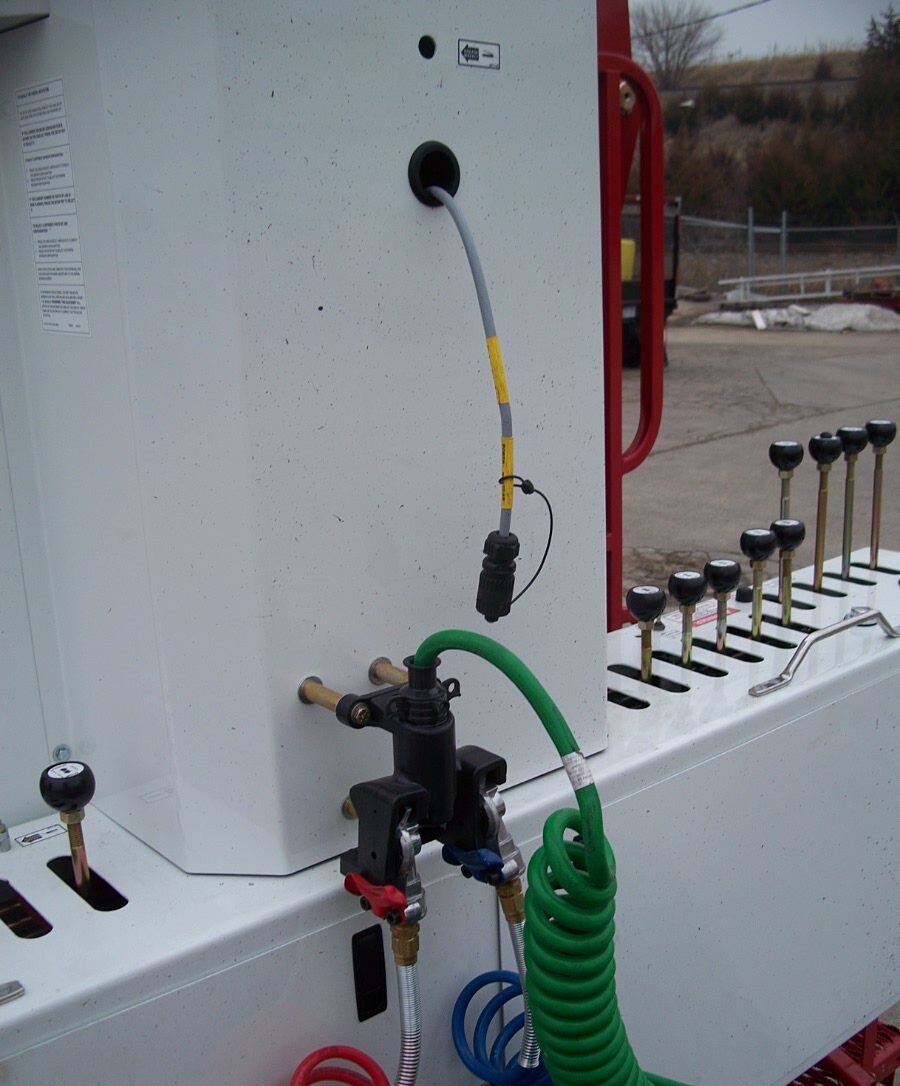

OPERATOR CONTROLS
DUAL STANDUP
OUTRIGGER TYPE FRONT
A-FRAME
OUTRIGGER SPREAD FRONT
20’10” / 6,3 M
OUTRIGGER TYPE REAR
“A” STAB
OUTRIGGER SPREAD REAR
10’4” / 3,1 M
UNIT WEIGHT (BARE)
14,845 LB / 6734 KG
OVERALL HEIGHT
12’11” / 3,9 M
RECOMMENDED CAB TO AXLE (CA)
168″ / 427 CM
RECOMMENDED GVWR
33,000 LB / 14 969 KG
