HiReach 70' - 95'

M87 HiReach

M87 HIREACH

The M87 mounts on a non-CDL chassis and combines long reach, low weight and heavy-duty material handling into an unbeatable package for your lifting needs.

Key Features:

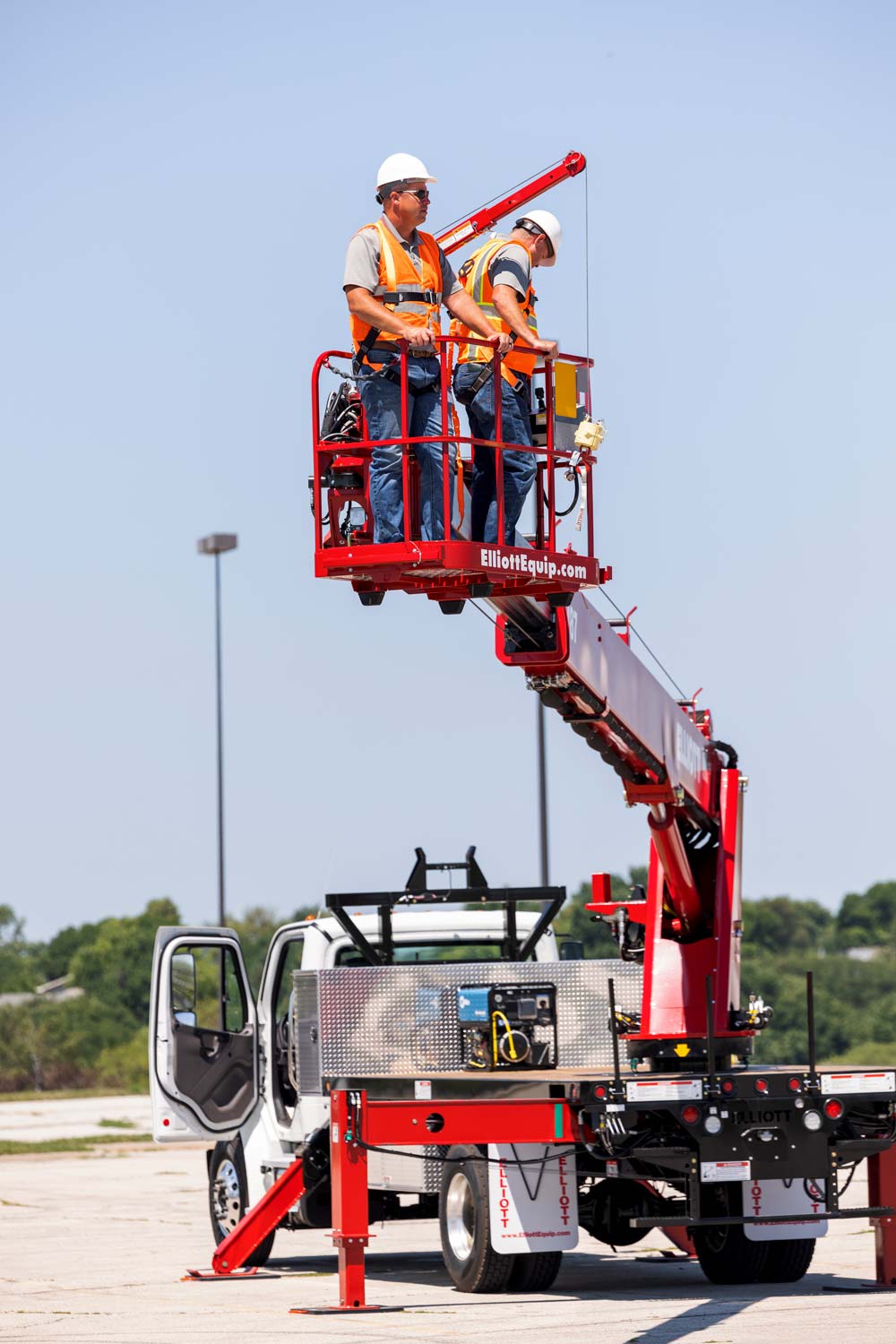

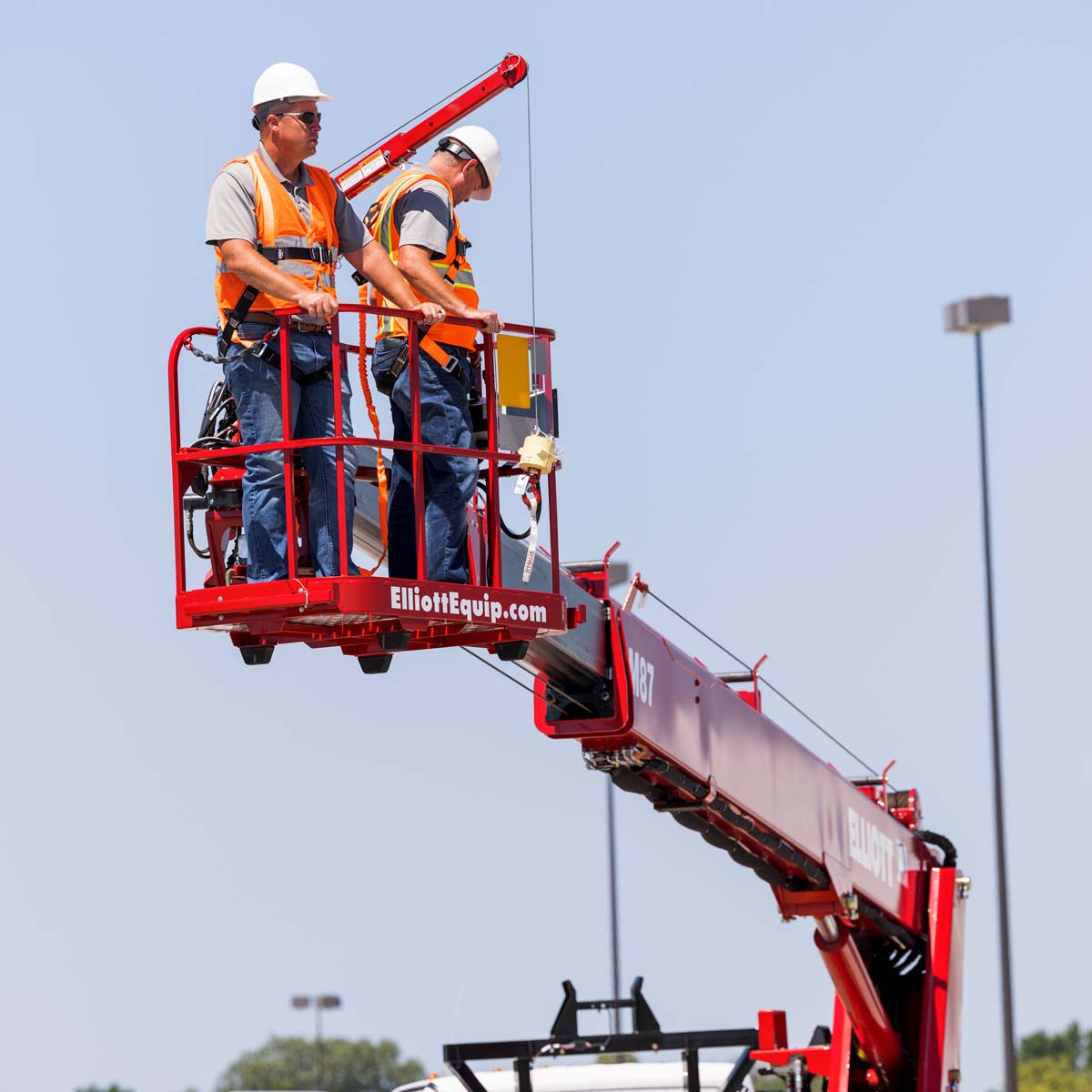

  • 30”x54” platform easily accommodates two workers and tools
  • Unrestricted side reach with zero tailswing lets you do more work per set up
  • Material handling on main boom and in work platform maximizes utilization
  • 180-degree platform rotation for unbeatable access to work area
  • Office in the Sky platform accessories increase productivity
  • Heavy-duty structural components provide exceptionally long life and controlled ride
  • ANSI A92.2 compliance in all modes of operation
  • Backed by lifetime structural warranty
  • Mounts on a non-CDL chassis

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting and material handling equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

WORKING HEIGHT

87′ / 26,5 M

WORKING SIDE REACH

77′ / 23,5 M

MATERIAL HANDLING CAPACITY

2,000 LB / 907 KG

PLATFORM TYPE

END-HUNG

PLATFORM CAPACITY

600 LB / 272 KG

PLATFORM SIZE

30″ X 54″ / 76 X 137 CM

PLATFORM ROTATION

180 DEGREES

BOOM SECTIONS

3

JIB WINCH CAPACITY

500 LB / 226 KG

OUTRIGGER TYPE FRONT
A-TYPE
OUTRIGGER SPREAD FRONT
12’6″ / 3,8 M
OUTRIGGER TYPE REAR
OUT-DOWN
OUTRIGGER SPREAD REAR
18′ / 5,5 M
UNIT WEIGHT (BARE)

13,500 LB / 6123 KG

OVERALL HEIGHT

13’ / 4 M

RECOMMENDED CAB TO AXLE (CA)
156” / 396 CM
RECOMMENDED GVWR

25,999 LB / 11 793 KG
