HiReach 70' - 95'

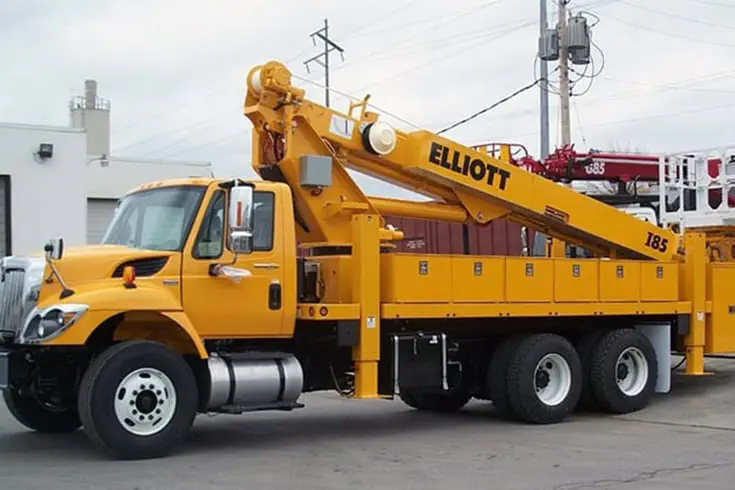

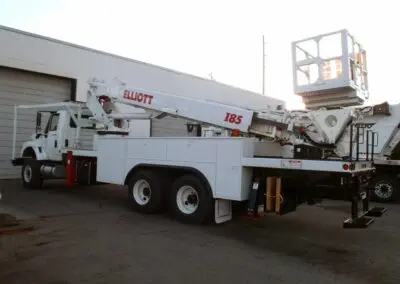

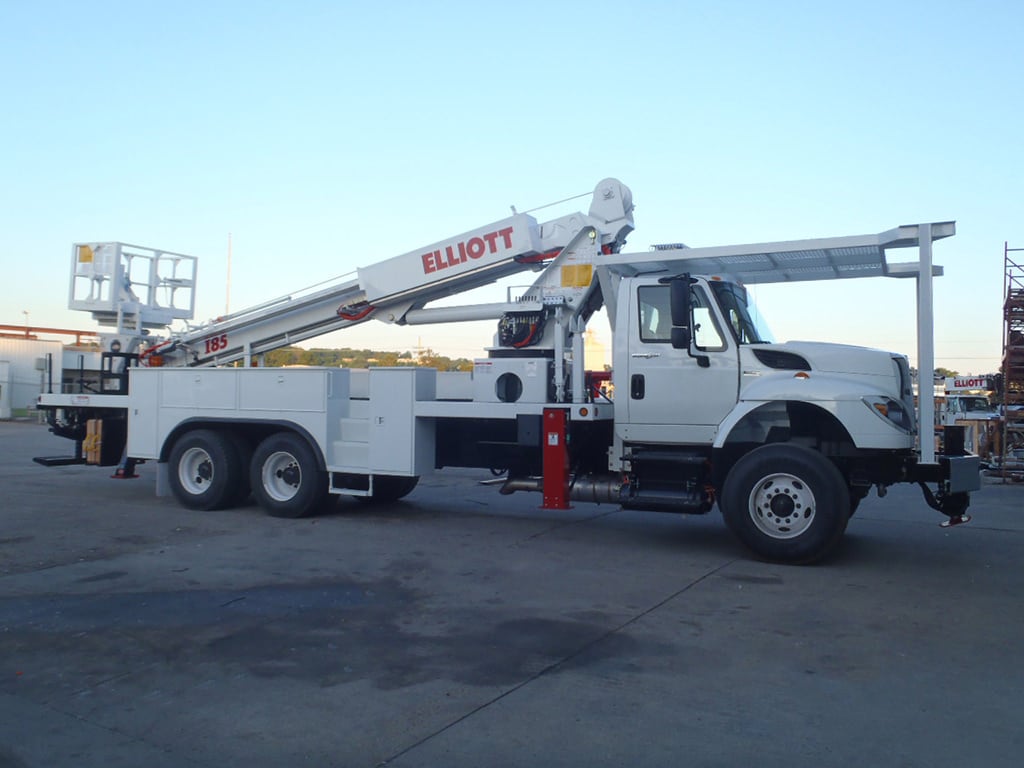

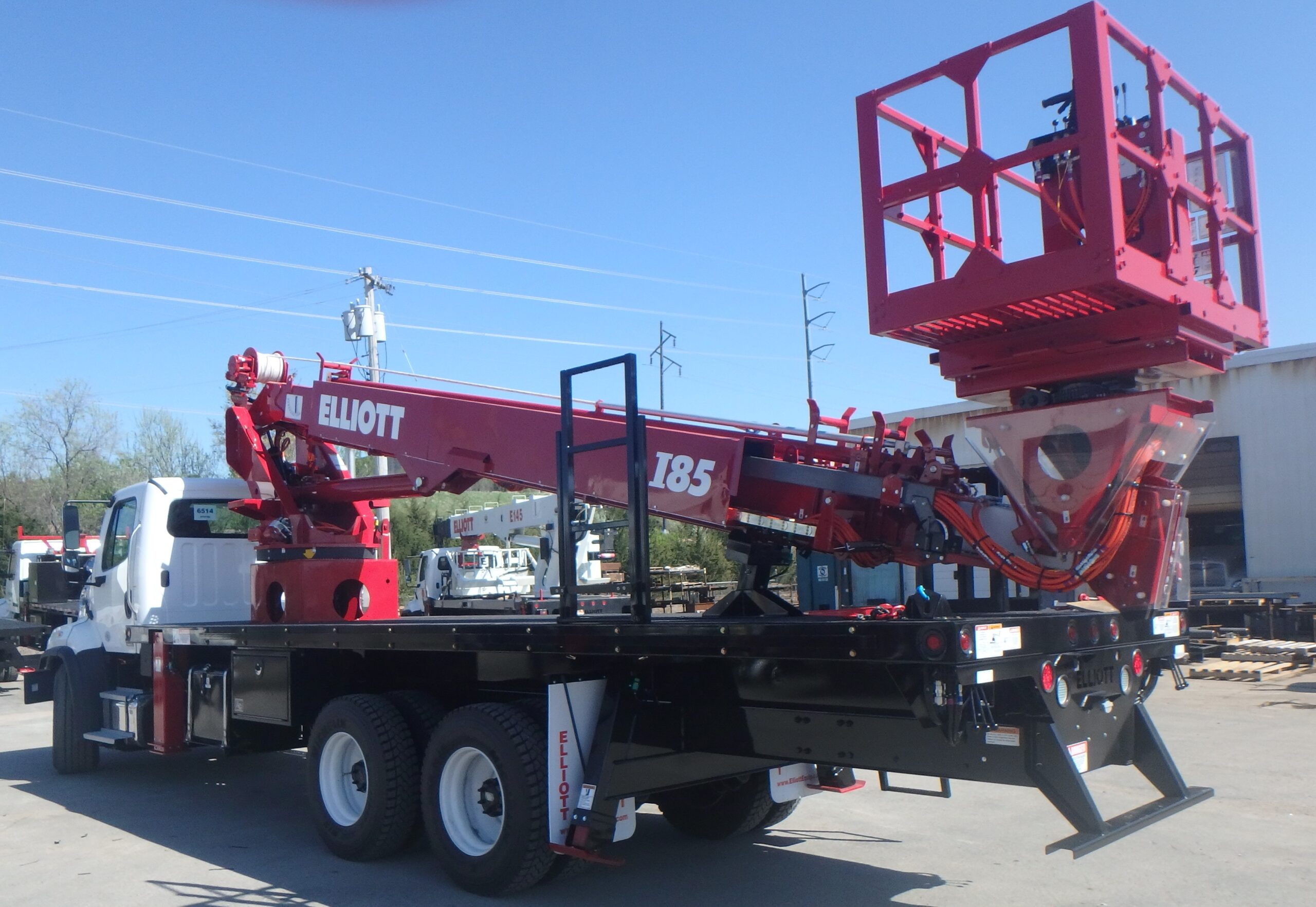

I85F HIREACH (46KV)
Elliott’s I85F HiReach offers ANSI Category C (46kV) insulation along with a large two worker fiberglass platform and material handling. This additional space and multifunctionality improves efficiency and allows you do more with a single machine.
KEY BENEFITS
- 40”x60” fiberglass platform provides twice the work area of a two-worker bucket
- 58’ side reach with zero tailswing lets you do more work per set up
- Material handling on main boom and in work platform maximizes utilization
- Office in the Sky platform accessories increase productivity
- Heavy duty structural components provide exceptionally long life and controlled ride
- ANSI A92.2 compliance in all modes of operation
- Backed by lifetime structural warranty
Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting and material handling equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You
Technical Specs
WORKING HEIGHT
90′ / 27,4 M
WORKING SIDE REACH
59′ / 18 M
BOOM SECTIONS
4
PLATFORM TYPE
INSULATED TOP-MOUNT
PLATFORM CAPACITY
600 LB / 272 KG
PLATFORM SIZE
40″X60″ / 102X152 CM
JIB WINCH CAPACITY
500 LB / 227 KG
MAIN WINCH CAPACITY
3,650 LB / 1656 KG
OUTRIGGER TYPE FRONT
OUT-DOWN
OUTRIGGER SPREAD FRONT
18′ / 5,4 M
OUTRIGGER TYPE REAR
A-UNDERSLUNG
OUTRIGGER SPREAD REAR
8′ / 2,4 M
UNIT WEIGHT (BARE)
18,500 LB / 8391 KG
OVERALL HEIGHT
11’8” / 3,5 M
RECOMMENDED CAB TO AXLE (CA)
168” / 427 CM
RECOMMENDED GVWR
54,000 LB / 24 494 KG
