The 70-foot aerial
that fits on a
non-cdl chassis
H70R HIREACH
built for tight spaces and high expectations
Suggested industries
Why choose the H70R?
Why choose
the H70R?
EXPANDED PLATFORM SPACE FOR MAXIMUM EFFICIENCY
The H70R’s spacious 40” x 60” work platform provides double the workspace compared to standard two-person buckets. This generous area allows for more tools, materials, and movement—boosting on-the-job productivity with every lift.
EZR ROTATING PLATFORM FOR PRECISE POSITIONING
With its end-mount EZR rotating platform, the H70R enables operators to stay oriented toward their work area. This intelligent design minimizes repositioning and helps crews maintain a consistent workflow throughout the day.
UNRESTRICTED SIDE REACH WITH ZERO TAILSWING
The H70R’s boom design eliminates tailswing while offering full side reach capabilities. That means more access with fewer setup changes—especially valuable in tight or congested work zones.
MATERIAL HANDLING ON MAIN BOOM AND PLATFORM
From lifting heavy tools to transporting components, the H70R’s integrated material handling features on both the main boom and platform provide unmatched versatility. Crews can accomplish more without needing additional equipment.
LIFETIME STRUCTURAL WARRANTY FOR BUILT-IN CONFIDENCE
The H70R is engineered with heavy-duty structural components and backed by Elliott’s lifetime structural warranty. Combined with ANSI A92.2 compliance, this ensures long-term durability, operator safety, and total peace of mind.
H70R technical specs
H70R
Technical specs
WORKING HEIGHT
70′ / 21,3 MWORKING SIDE REACH
62′ / 18,9 MBOOM SECTIONS
3PLATFORM TYPE
EZR REMOVABLEPLATFORM CAPACITY
500 LB / 227 KGPLATFORM SIZE
40″ X 60″ / 102 X 152 CMJIB WINCH CAPACITY
500 LB / 227 KGMAIN WINCH CAPACITY

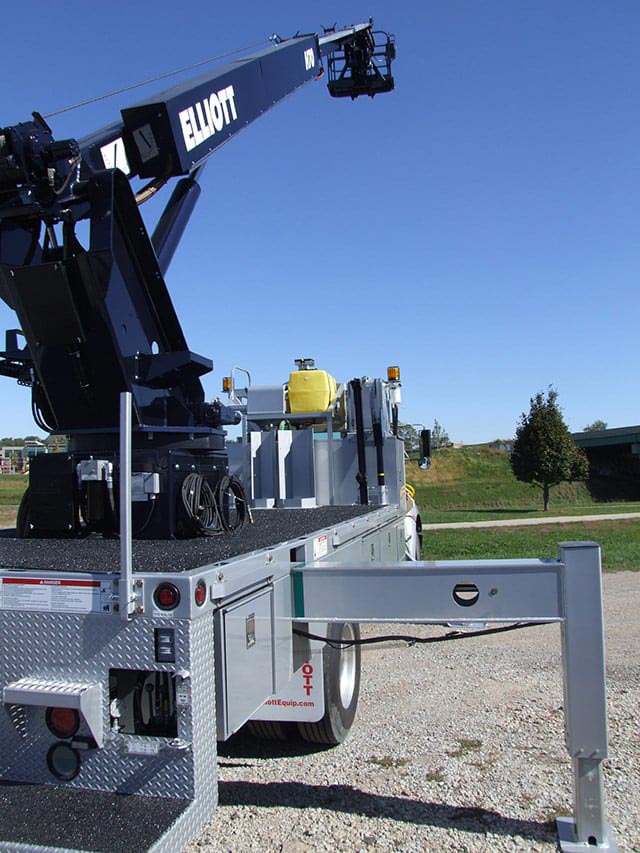

5,900 LB / 2,676 KGOUTRIGGER TYPE FRONT
A-TYPEOUTRIGGER SPREAD FRONT
12’6″ / 3,8 MOUTRIGGER TYPE REAR
OUT-DOWNOUTRIGGER SPREAD REAR
18′ / 5,5 MUNIT WEIGHT (BARE)
17,600 LB / 7,983 KGOVERALL HEIGHT
12’1” / 3,7MRECOMMENDED CAB TO AXLE (CA)
156” / 396 CMRECOMMENDED GVWR
33,000 LB / 14,968 KG70′ / 21,3 M
62′ / 18,9 M
3
EZR REMOVABLE
500 LB / 227 KG
40" x 60" / 102 x 152 CM
500 LB / 227 KG
5,900 LB / 2,676 KG
A-TYPE
12’6″ / 3,8 M
OUT-DOWN
18′ / 5,5 M
17,600 LB / 7,983 KG
12’1” / 3,7M
156” / 396 CM
33,000 LB / 14,968 KG
MADE IN OMAHA,
TRUSTED BENEFITS
Elliott Equipment is employee-owned and proudly American-built in Omaha, Nebraska. Each HiReach is designed for long-term performance with premium hydraulics, Bluetooth diagnostics, and fewer leak points, backed by a lifetime structural warranty.
Customize it for your crew
From lighting installs to bridge inspections, the H70R is made to fit your application. Add sign forks, platform lighting, composite pads, custom paint, or whatever your job demands.
Ready to see it in action?
Let’s build the perfect H70R for your team. Contact us today to talk specs, customizations, and dealer availability.
Trusted by Industry Leaders Nationwide
built to last.
lifetime warranty
Elliott Equipment Company specializes not only in flexibility and customization, but also in building some of the toughest equipment on the market. With our standard warranty, the best warranty in the industry, we can guarantee that our trucks are built to last.
Ask about our lifetime structural warranty and comprehensive one-year parts & labor warranty.
Any Questions?
OUR FAQs
Don’t see your question? Contact an expert. We’ll help you get everything sorted out!
What are the working height and side reach of the H70R?
The H70R offers a 70 ft (21.3 m) working height and an impressive 62 ft (18.9 m) side reach—ideal for utility, lighting, and telecommunications work in tight or elevated environments.
How large is the platform and what is its carrying capacity?
It features a generous 40″ × 60″ (1.02 × 1.52 m) work platform with a 500 lb (227 kg) capacity, comfortably accommodating two workers with their tools.
Does the H70R support material handling?
Yes. The model allows for material handling both on the main boom and via an optional platform-mounted jib, enabling crews to lift tools or small equipment directly from height.
