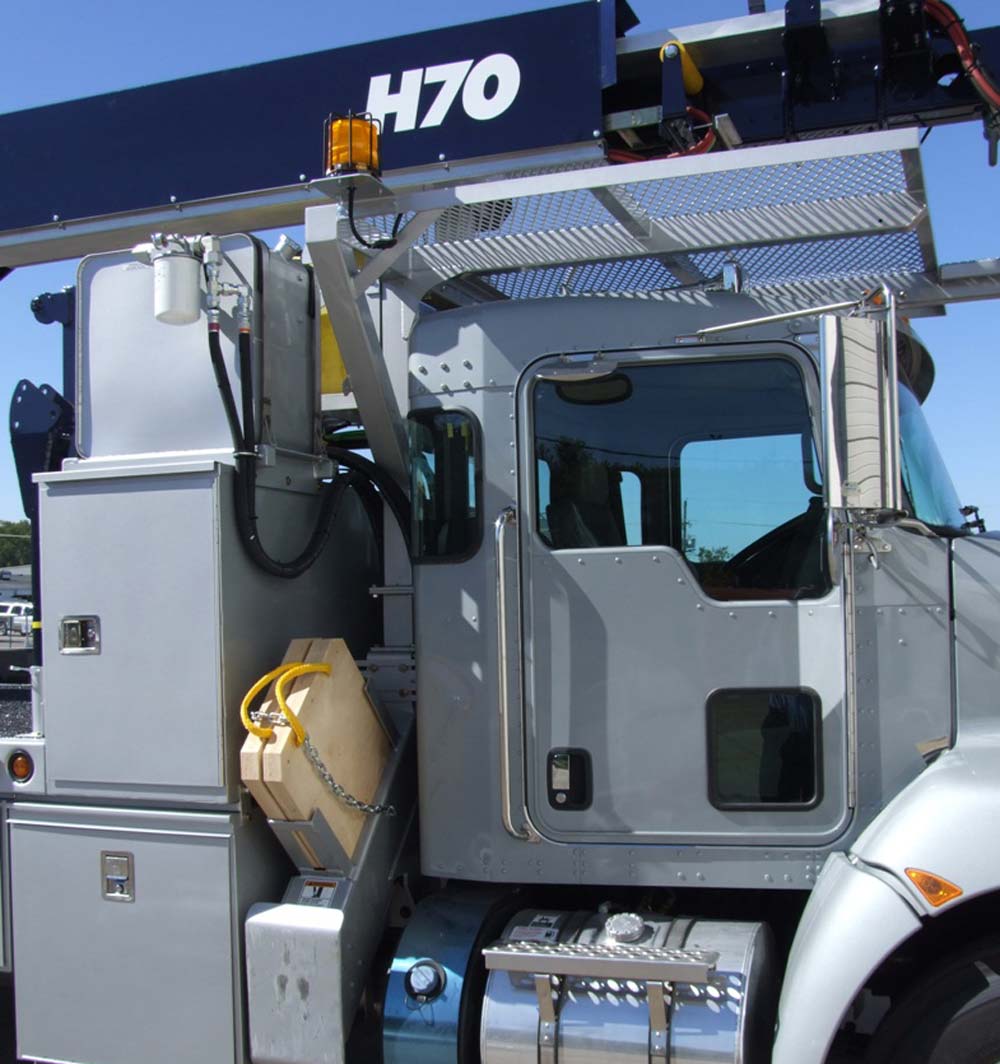

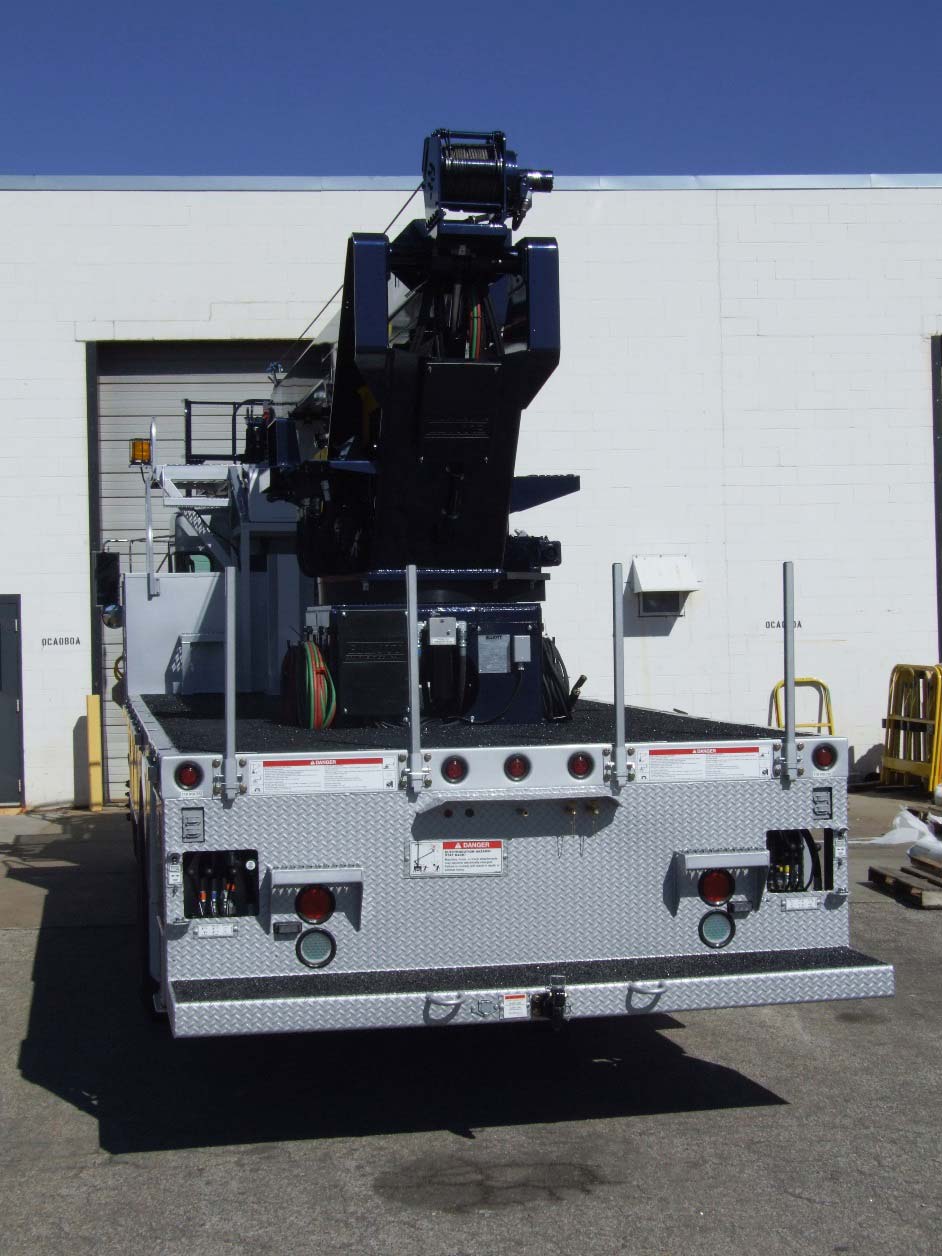

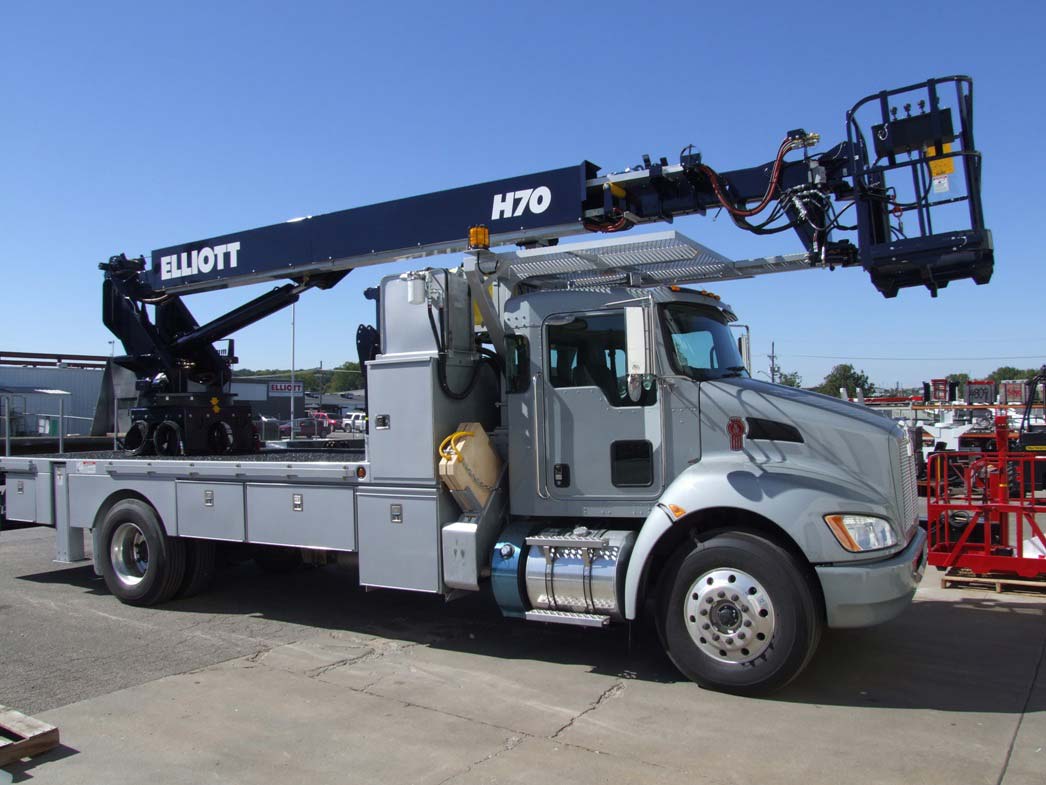

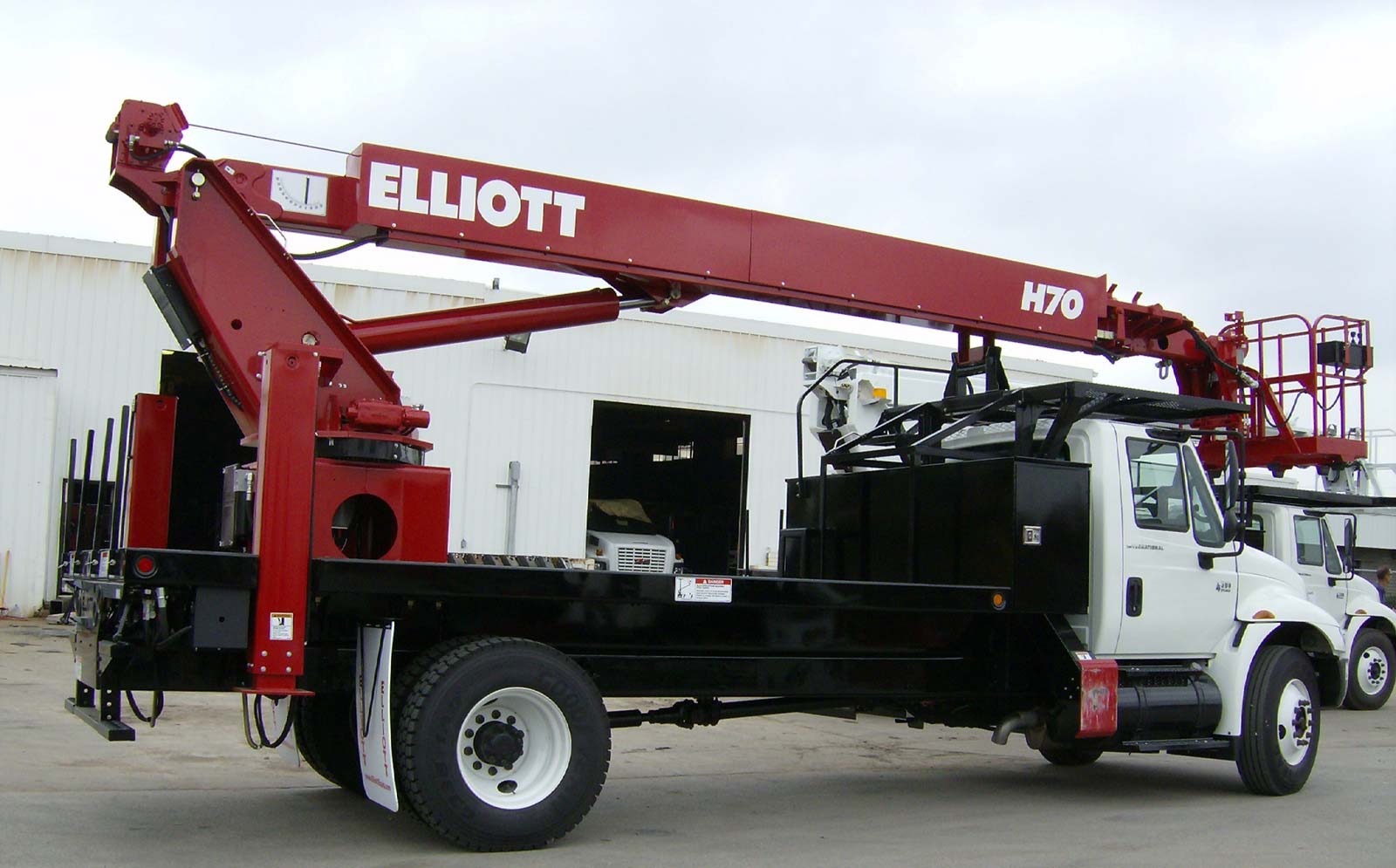

H70F HIREACH

Elliott’s H70F HiReach is a front-mounted variation of the H70 HiReach model, featuring a 75′ working height and a 40″ x 60″ two-man work platform with a 600 lb capacity. The three-section hydraulic boom offers smooth functionality and a precise ‘point and shoot’ ride. The work platform is hydraulically self-leveling and hydraulically rotating to get you to the work area safely and comfortably. As with other HiReach, the H70F HiReach is available with a main winch (5,900 or 2,000 lbs), a jib winch in the work platform (1,000 lbs) and Elliott’s ‘Office in the Sky’ external cable carrier system to bring your tools into the work platform. The H-Series products (excluding the H110) are also available with an optional 12,000 ft/lb hydraulic digger system.

Key Benefits

  • The H70F HiReach boom extends hydraulically without cables or chains for reduced maintenance and a smoother ride
  • Elliott’s Dynasmooth upper work platform control system includes a foot enable switch and individual joysticks with hi/lo range for excellent sensitivity adjustment
  • The H70 model does not have side reach envelope limits, allowing the operator to boom up and out in any direction without restriction (within chart capacity limits)
  • Oversized turret and bearing provide long-term reliability and excellent stability
  • Optional main boom winch allows for material handling with the work platform attached, or removed
  • The 1,000 lb capacity removable work platform jib winch permits lifting materials while in the work platform, reducing the need to make multiple trips to the ground
  • One parts/labor warranty and lifetime structural warranty

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting equipment that can also lift materials, providing a versatile solution for a wide range of industries. All products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

WORKING HEIGHT

75′ / 23 M

WORKING SIDE REACH

58′ / 17,7 M

BOOM SECTIONS
3
PLATFORM TYPE

TOP-MOUNT

PLATFORM CAPACITY

600 LBS / 272 KG

PLATFORM SIZE

40″X60″ / 102X152 CM

JIB WINCH CAPACITY

1,000 LBS / 454 KG

MAIN WINCH CAPACITY

5,900 LBS / 2676 KG

OUTRIGGER TYPE FRONT

OUT-DOWN

OUTRIGGER SPREAD FRONT

18′ / 5,5 M

OUTRIGGER TYPE REAR

A-UNDERSLUNG

OUTRIGGER SPREAD REAR

8′ / 2,4 M

UNIT WEIGHT (BARE)

17,600 LBS / 7983 KG

OVERALL HEIGHT

11’5” / 3,5 M

RECOMMENDED CAB TO AXLE (CA)

168” / 427 CM

RECOMMENDED GVWR

33,000 LBS / 14 968 KG
