HiReach 45' - 65'

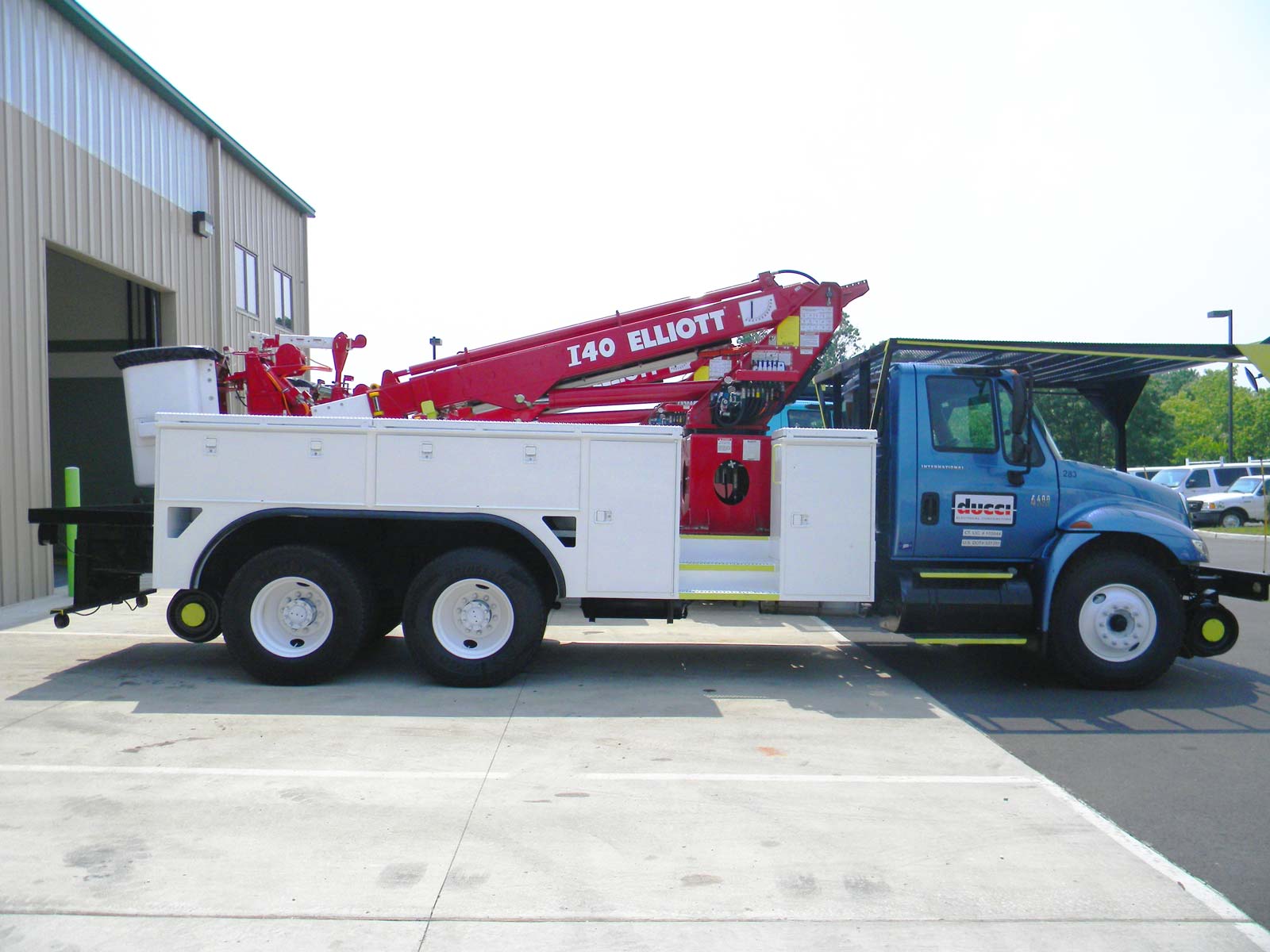

I40F HIREACH (46KV)

Elliott’s I40F HiReach offers ANSI Category C (46kV) insulation along with a large two worker fiberglass platform and material handling. This additional space and multifunctionality improves efficiency and allows you do more with a single machine.

Key Benefits

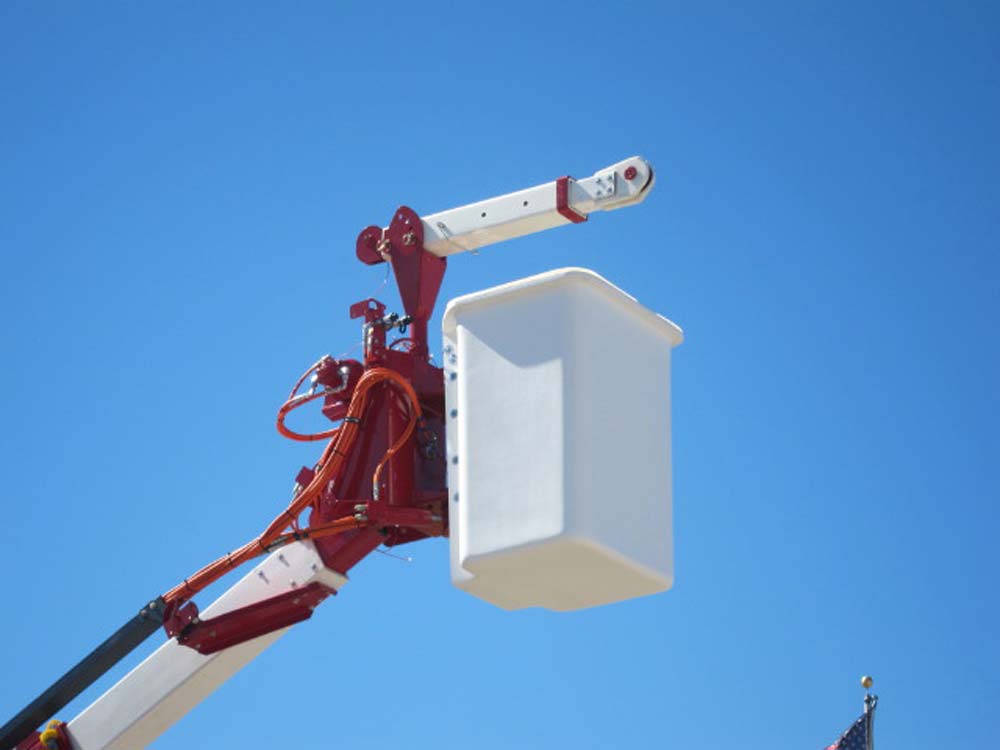

  • 40”x60” fiberglass platform provides twice the work area of a two-worker bucket
  • Unrestricted side reach with zero tailswing lets you do more work per setup
  • Material handling on main boom and in work platform maximizes utilization
  • Office in the Sky platform accessories increase productivity
  • Heavy-duty structural components provide exceptionally long life and controlled ride
  • ANSI A92.2 compliance in all modes of operation
  • Backed by lifetime structural warranty

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting and material handling equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

WORKING HEIGHT
45′ / 13,7 M
WORKING SIDE REACH
45′ / 13,7 M
BOOM SECTIONS
3
PLATFORM TYPE
Insulated Top Mount
PLATFORM CAPACITY
3
PLATFORM SIZE
40″X60″ / 102X152 CM
JIB WINCH CAPACITY
500 LB / 227 KG
MAIN WINCH CAPACITY
3,650 LB / 1656 KG
OUTRIGGER TYPE FRONT
A-TYPE
OUTRIGGER SPREAD FRONT
12′ / 3,6 M
OUTRIGGER TYPE REAR
A-US
OUTRIGGER SPREAD REAR
8′ / 2,4 M
UNIT WEIGHT (BARE)
16,800 LB / 7620 KG
OVERALL HEIGHT
11’8” / 3,5 M
RECOMMENDED CAB TO AXLE (CA)
120” / 305 CM
RECOMMENDED GVWR
25,999 LB / 11 793 KG
