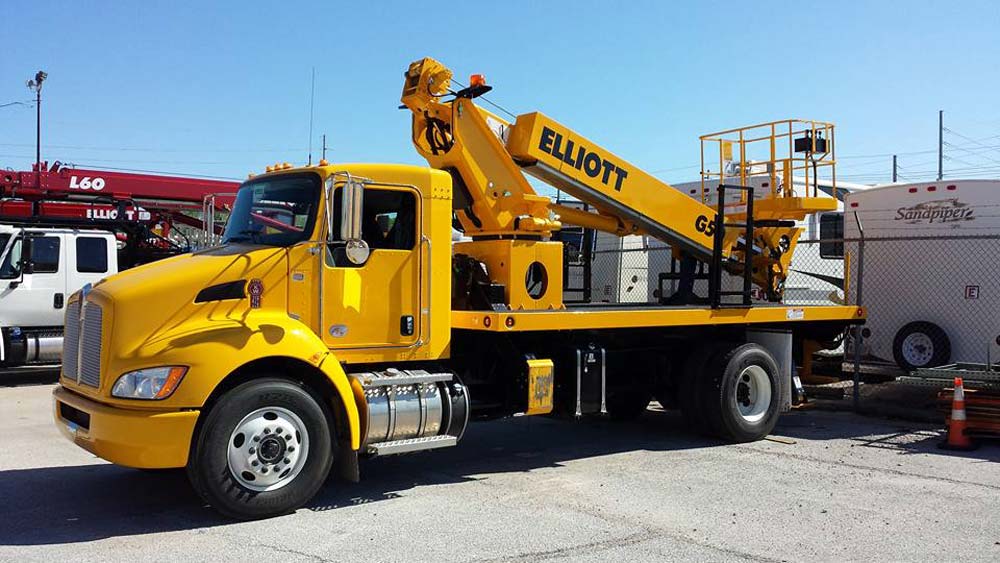

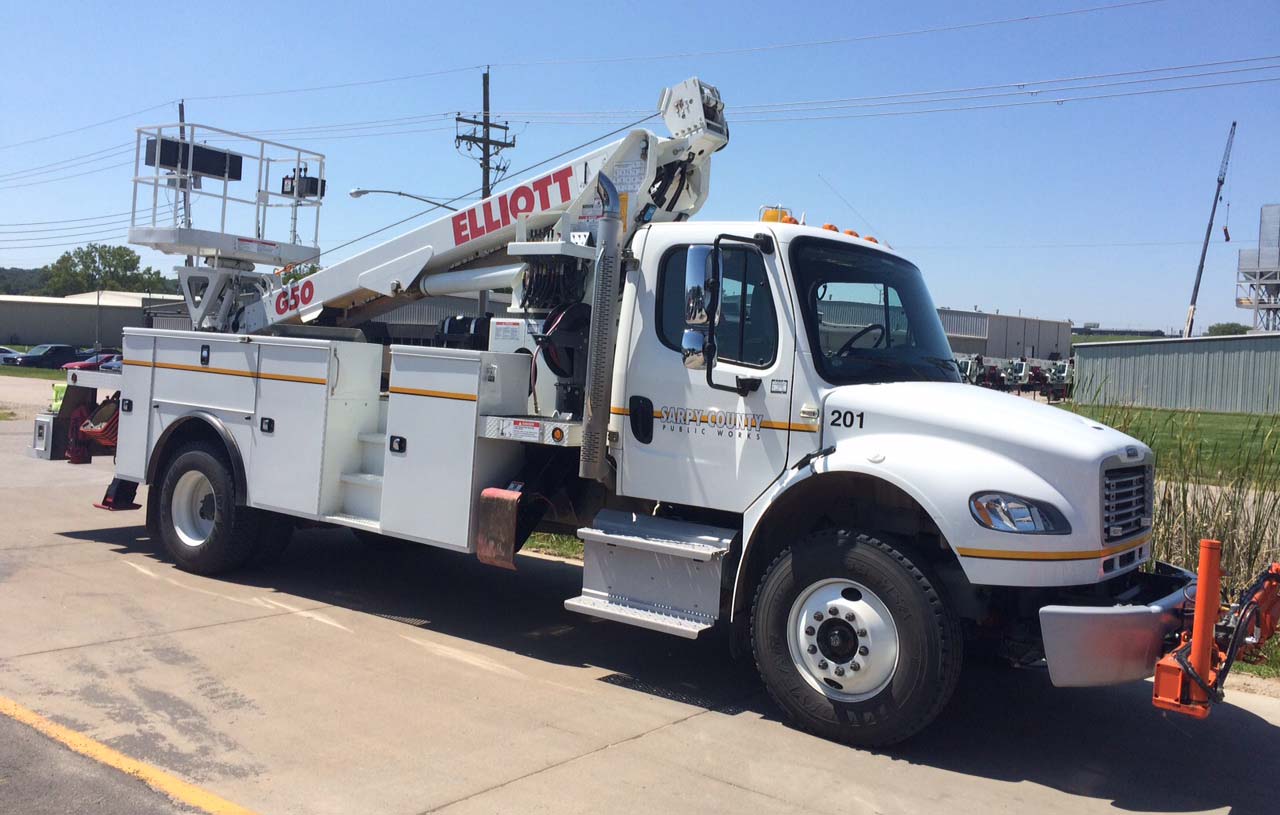

G50F HIREACH

Elliott’s G50F HiReach is designed to withstand the rigors of the most challenging applications. With an exceptionally long useful life and multifunction capability, the G50F is an investment you can count on.

KEY BENEFITS

  • 40”x60” work platform provides twice the work area of a two-worker bucket

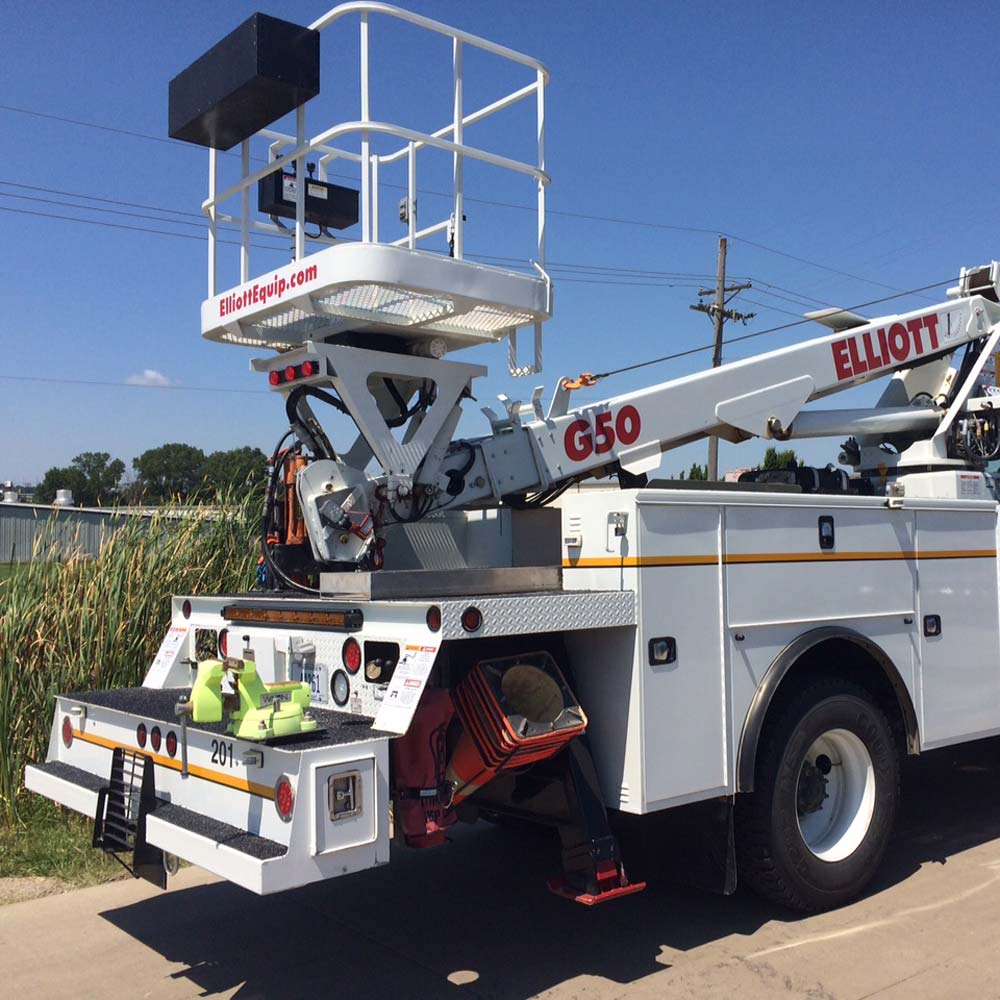

  • Top mount rotating platform gives addition work area when access work area from below
  • Unrestricted side reach with zero tailswing lets you do more work per setup

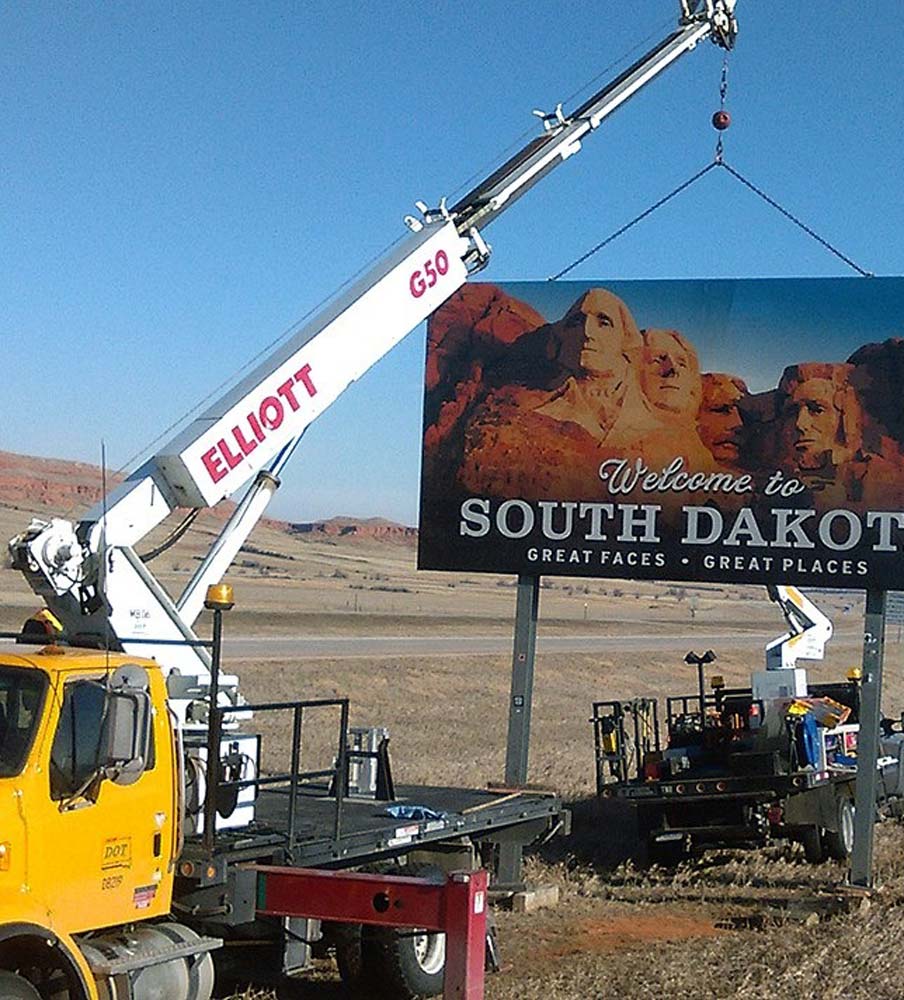

  • Material handling on main boom and in work platform maximizes utilization
  • 180-degree platform rotation for unbeatable access to work area
  • Office in the Sky platform accessories increase productivity
  • Heavy-duty structural components provide exceptionally long life and controlled ride
  • ANSI A92.2 compliance in all modes of operation
  • Backed by lifetime structural warranty

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting and material handling equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

WORKING HEIGHT
55′ / 16,7 M
WORKING SIDE REACH
41′ / 12,5 M
BOOM SECTIONS
3
PLATFORM TYPE
TOP-MOUNT
PLATFORM CAPACITY
600 LB / 272 KG
PLATFORM SIZE
40″X60″ / 102X152 CM
JIB WINCH CAPACITY
1,000 LB / 454 KG
MAIN WINCH CAPACITY
5,900 LB / 2676 KG

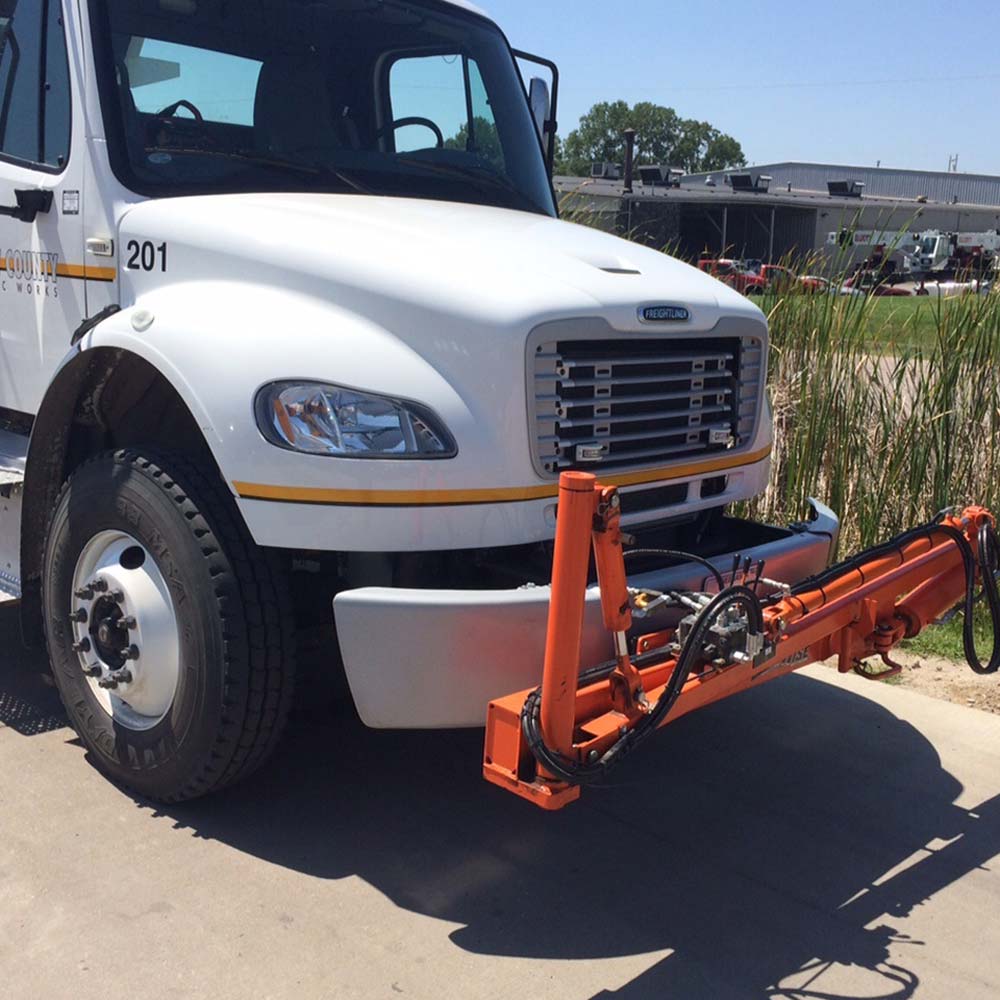

OUTRIGGER TYPE FRONT
A-TYPE
OUTRIGGER SPREAD FRONT
12’6″ / 3,8 M
OUTRIGGER TYPE REAR
A-UNDERSLUNG
OUTRIGGER SPREAD REAR
8′ / 2,4 M
UNIT WEIGHT (BARE)
11,000 LB / 4989 KG
OVERALL HEIGHT
11’4” / 3,4 M
RECOMMENDED CAB TO AXLE (CA)
120” / 305 CM
RECOMMENDED GVWR
25,999 LB / 11 793 KG
