HiReach 110' - 240'

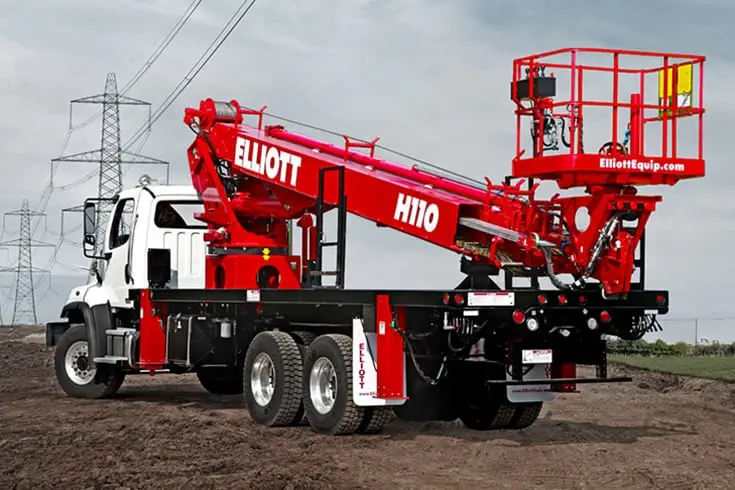

H110F HIREACH
A time-tested machine for utility construction and municipal construction and maintenance, the H110F HiReach is rugged, reliable, and multifunctional.
KEY BENEFITS
- 40”x60” work platform provides twice the work area of a two-worker bucket
- Top mount rotating platform gives addition work area when access work area from below
- Wide side reach with zero tailswing lets you do more work per setup
- Material handling on main boom and in work platform maximizes utilization
- 180-degree platform rotation for unbeatable access to work area
- Office in the Sky platform accessories increase productivity
- Heavy-duty structural components provide exceptionally long life and controlled ride
- ANSI A92.2 compliance in all modes of operation
- Backed by lifetime structural warranty
Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting and material handling equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You
Technical Specs
WORKING HEIGHT
117′ / 35,7 M
WORKING SIDE REACH
84′ / 25,6 M
BOOM SECTIONS
5
PLATFORM TYPE
EZR REMOVABLE
PLATFORM CAPACITY
600 LB / 272 KG
PLATFORM SIZE
40″X60″ / 102X152 CM
JIB WINCH CAPACITY
1,000 LB/454 KG
MAIN WINCH CAPACITY
14,000 LB / 6350 KG
OUTRIGGER TYPE FRONT
OUT-DOWN
OUTRIGGER SPREAD FRONT
22′ / 6,7 M
OUTRIGGER TYPE REAR
OUT-DOWN
OUTRIGGER SPREAD REAR
18′ / 5,5 M
UNIT WEIGHT (BARE)
27,500 LB / 12 474 KG
OVERALL HEIGHT
13’2” / 4 M
RECOMMENDED CAB TO AXLE (CA)
192” / 488 CM
RECOMMENDED GVWR
58,000 LB / 26 308 KG
