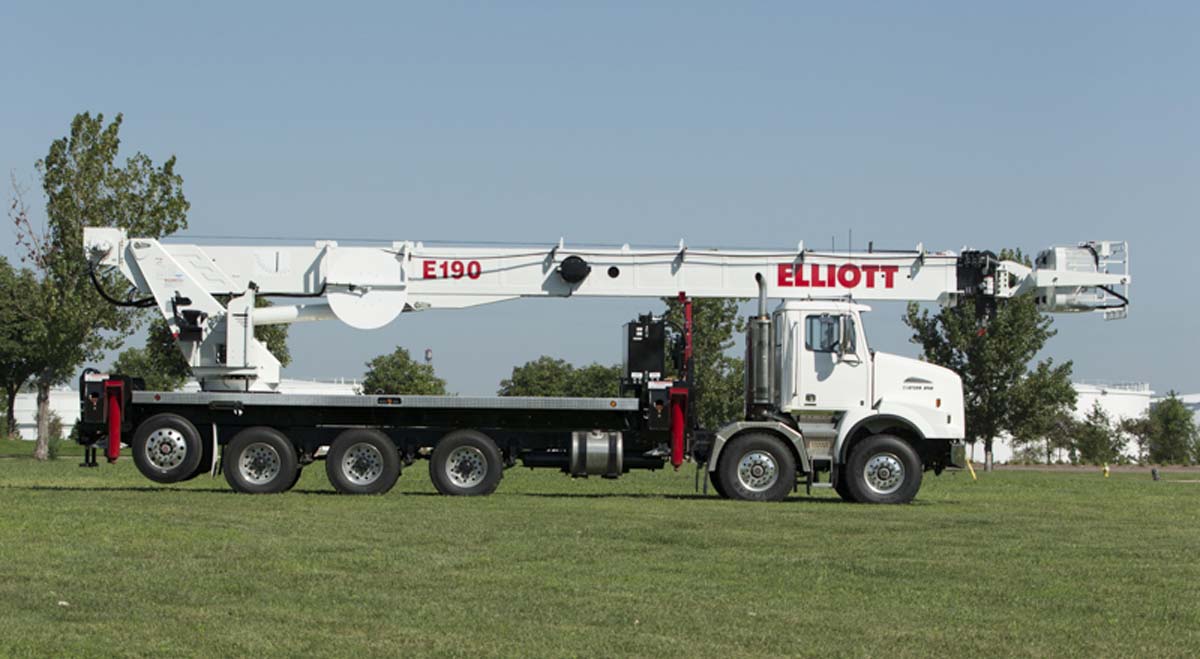

E190 E-LINE

Telescopic Material Handling Aerial Work Platform

When your job demands high performance, long reach, and material handling, look to Elliott’s ELine to help you get it done right. With main boom working heights from 145 to 190 feet and the ability to reach up to 240 feet with a swing-around boom, the Eline reaches further than any telescopic aerial in its class.

KEY BENEFITS

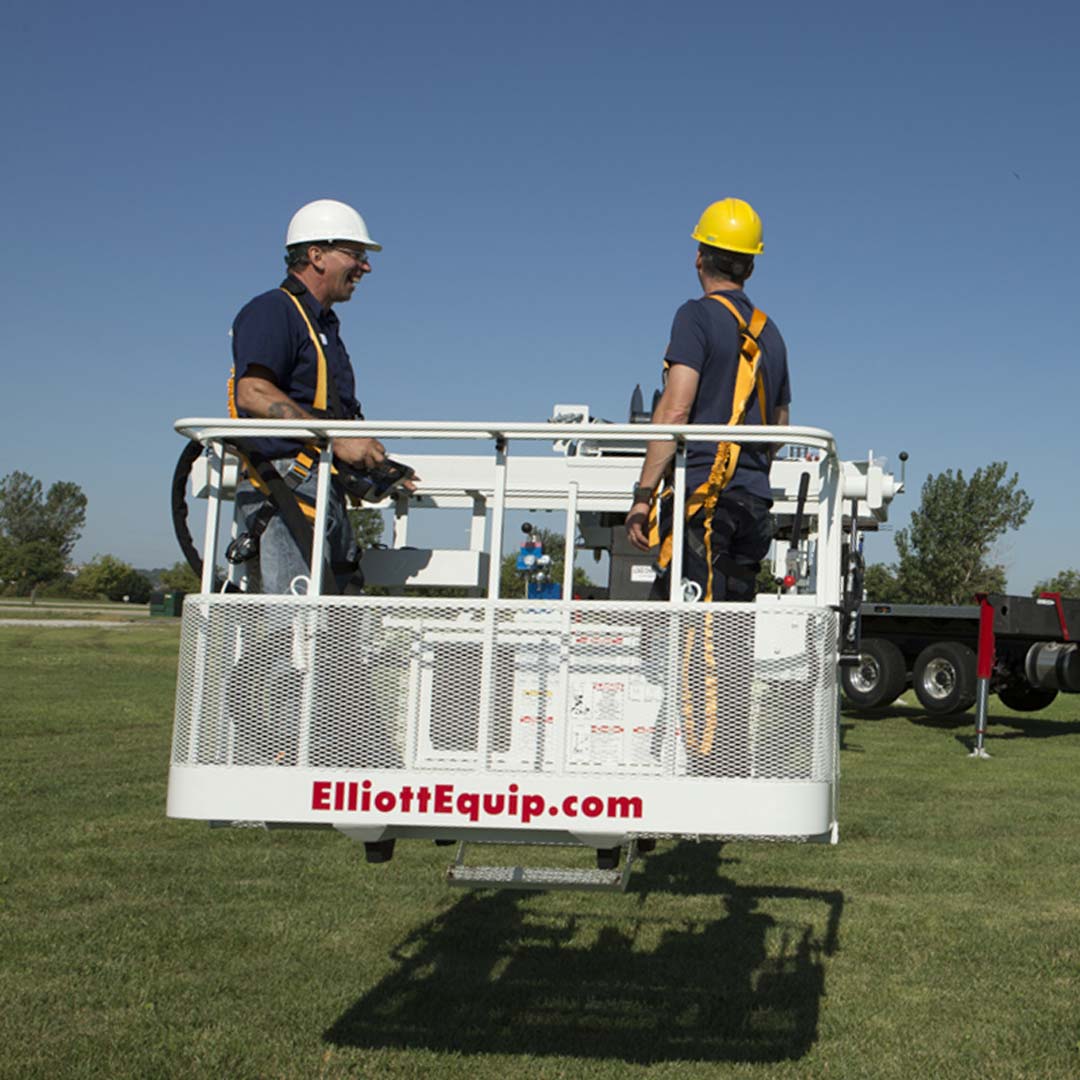

  • 40”x72” platform with hydraulic damping easily accommodates two workers and tools
  • EZ Crib outriggers provide 30” more vertical penetration, to significantly reduce the amount of cribbing required, enabling faster setups with less lifting and twisting handling cribbing
  • Hydraulic tool circuit in platform with intensifier
  • Main boom material handling maximizes utilization

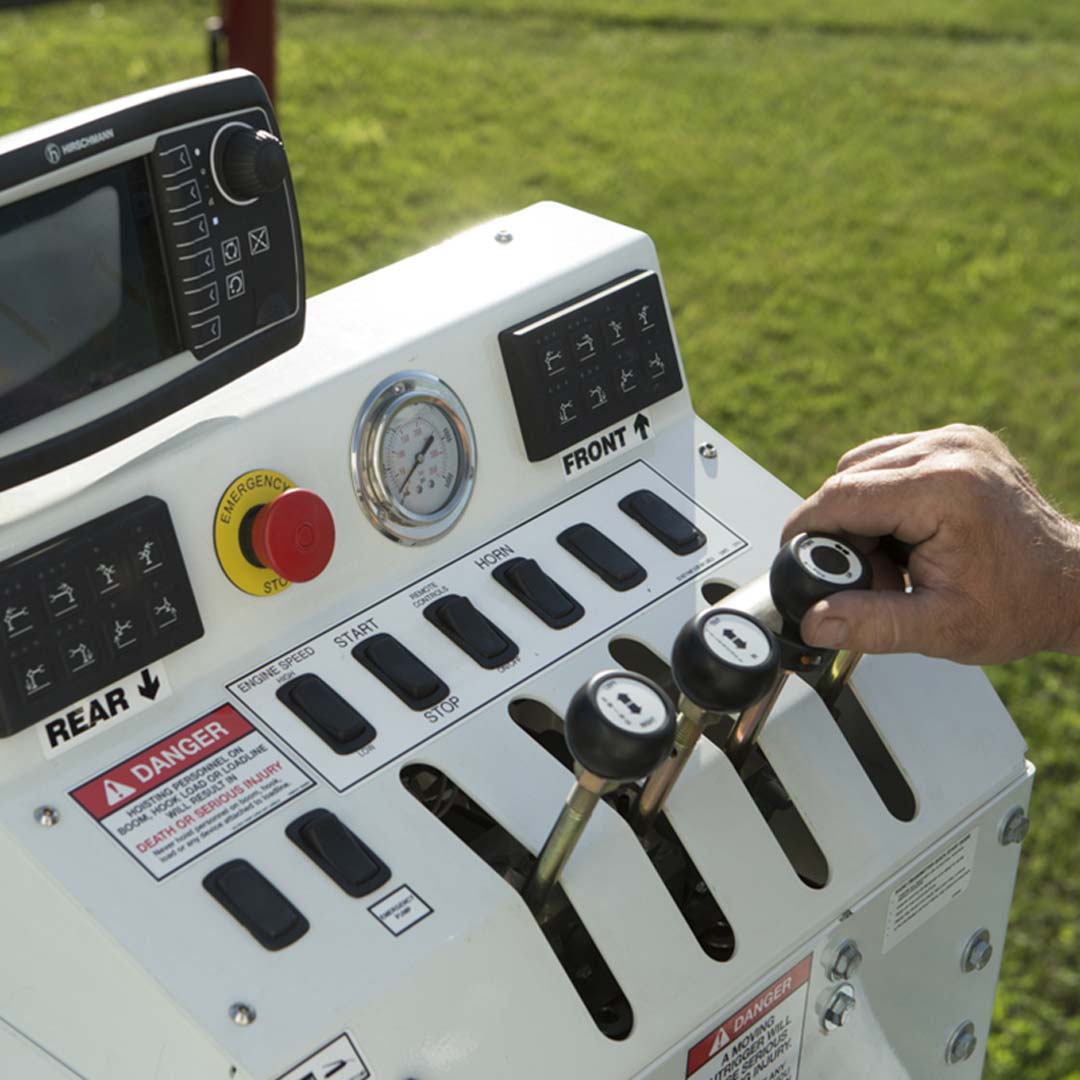

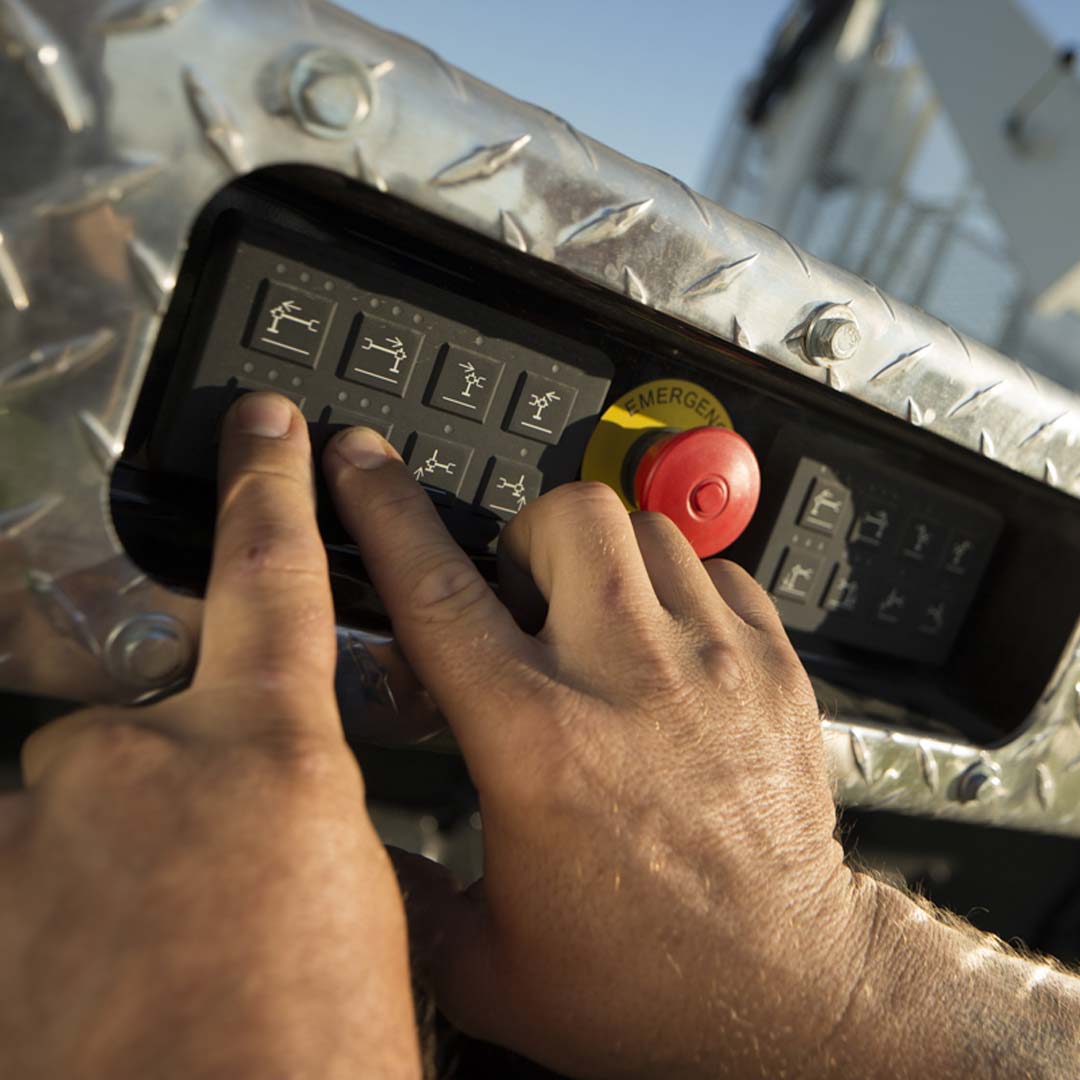

  • Smooth controls and tailored operating envelopes for outstanding performance at work height
  • Heavy-duty structural components provide exceptionally long life and controlled ride
  • 30 mph main boom wind rating
  • ANSI A92.2 compliance in all modes of operation
  • Backed by lifetime structural warranty

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting and material handling equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

WORKING HEIGHT (MAIN BOOM)

190’ / 57,9 m

WORKING HEIGHT (WITH JIB)

240’ / 73,2 m

WORKING SIDE REACH
90′ / 27,4 M
BOOM SECTIONS
5
PLATFORM TYPE

DETACHABLE YOKE-MOUNT

PLATFORM CAPACITY
1,200 LB / 544 KG
PLATFORM SIZE
36″X72″ / 91X183 CM
JIB WINCH CAPACITY
N/A
MAIN WINCH CAPACITY
30,000 LB / 13 608 KG
OUTRIGGER TYPE FRONT

OUT-DOWN EZ-CRIB

OUTRIGGER SPREAD FRONT

26’2″ / 8M

OUTRIGGER TYPE REAR

OUT-DOWN EZ-CRIB

OUTRIGGER SPREAD REAR
26’2″ / 8 M
UNIT WEIGHT (BARE)
CONTACT FACTORY
OVERALL HEIGHT

12’11” / 3,9 M

RECOMMENDED CAB TO AXLE (CA)

221″ / 561 CM

RECOMMENDED GVWR

108,000 LB / 48 988 KG
