E 150 i E-Line

E150i E-LINE

The E150i E-Line is a true transmission multi-tool, that lets you maximize your utilization and return on your investment. The E150i’s interchangeable boom system (Pat. Pending) has been designed with significant input from the industry and gives you the utmost flexibility in how you use the machine.

KEY BENEFITS

  • Interchangeable booms let one machine do the work of five, reducing equipment cost and maintenance and maximizing utilization

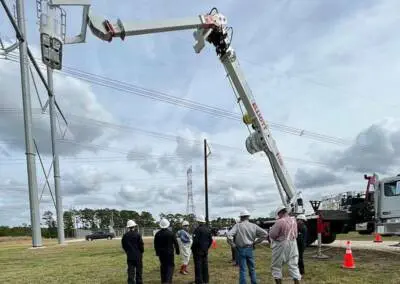

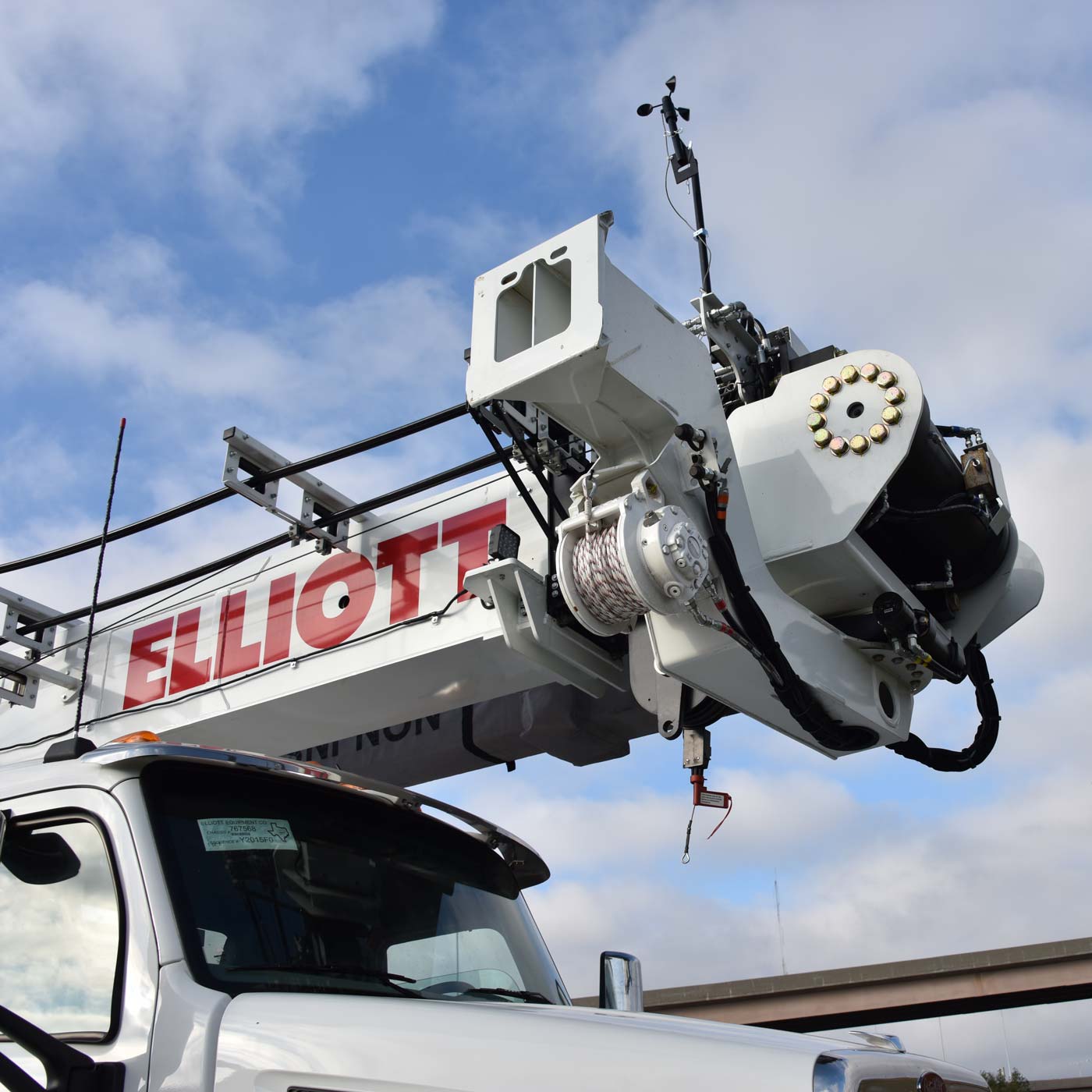

  • Articulating 500 kV rated fiberglass boom with corona ring, VON leakage monitor and desiccant filter
  • Articulating steel construction boom allows you to store and protect fiberglass boom when not needed

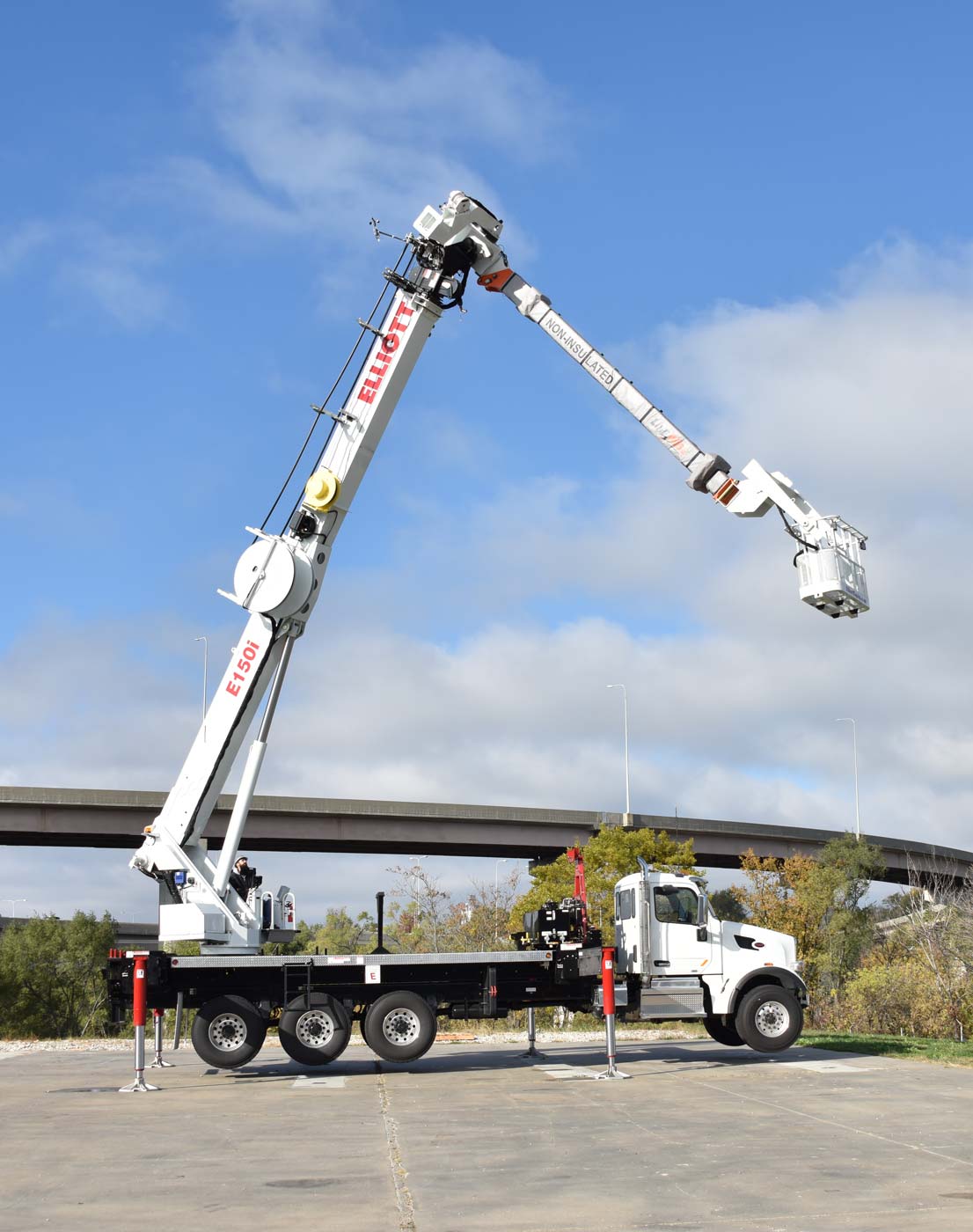

  • Fiberglass and steel articulating booms have 60 degrees of hyper articulation, for access from below power lines or work in substation environment
  • Telescopic boom and self-leveling material handling platform mode allows 1,000 lbs. platform material handling

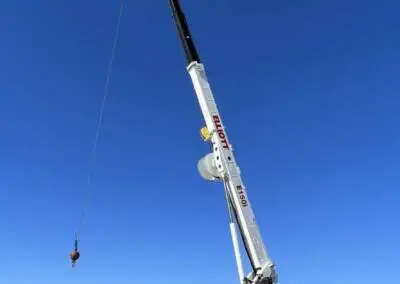

  • Main boom material handling mode with 30,000 lb. maximum capacity

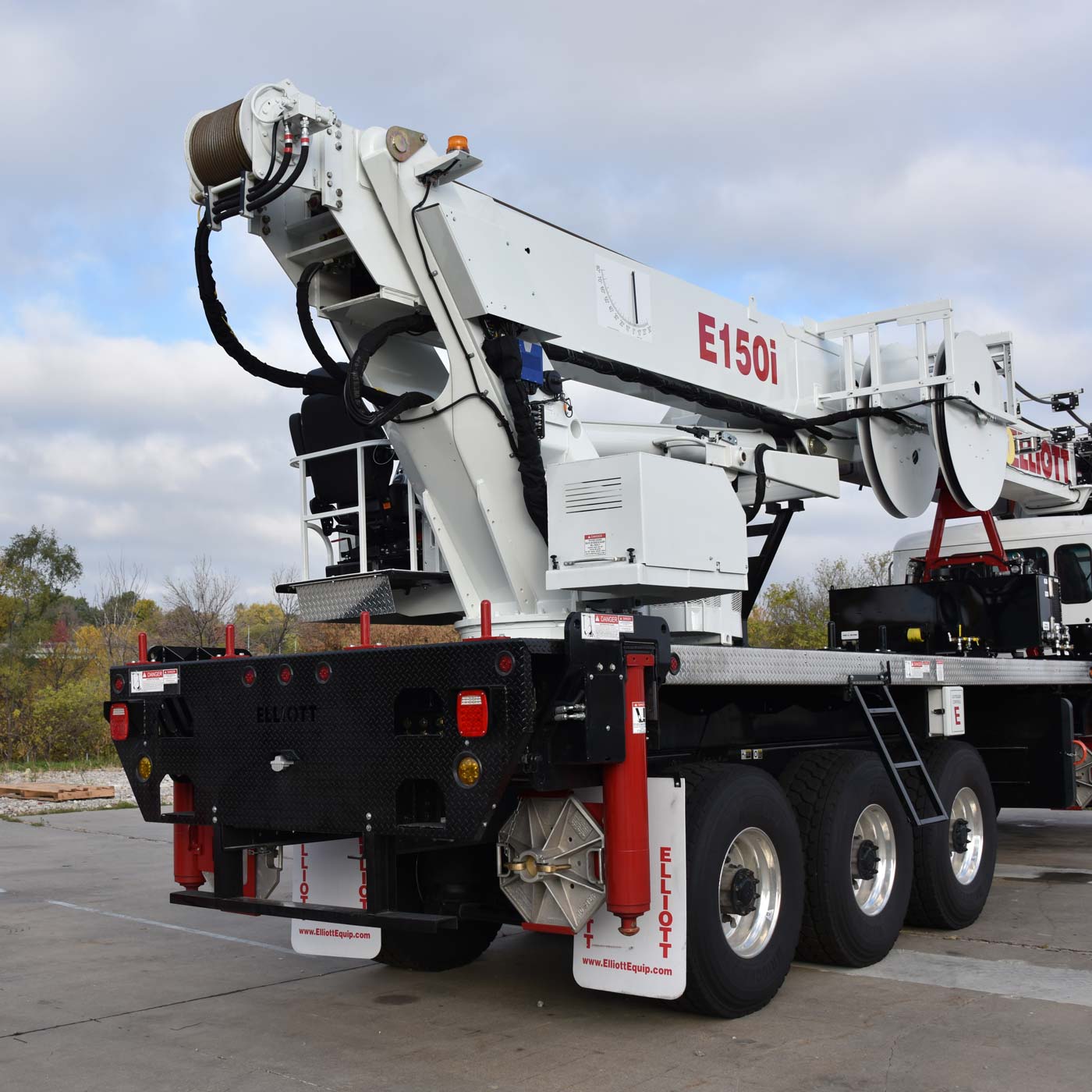

  • EZ Crib outriggers provide 30” more vertical penetration, to significantly reduce the amount of cribbing required, enabling faster setups with less lifting and twisting handling cribbing
  • Hydraulic tool circuit in platform with intensifier

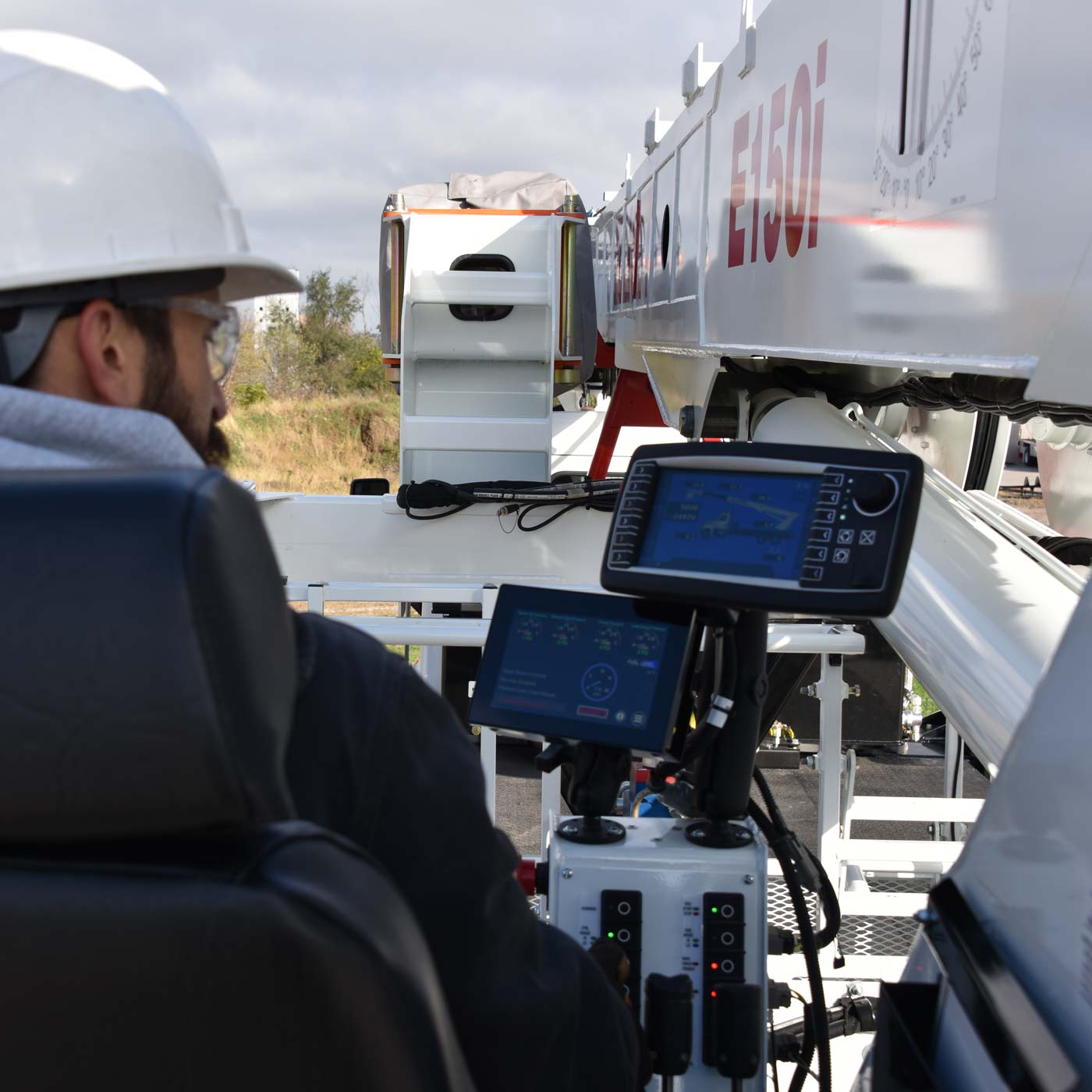

  • Smooth controls and tailored operating envelopes for outstanding performance at work height
  • Heavy-duty structural components provide exceptionally long life and controlled ride
  • ANSI A92.2 compliance in all modes of operation
  • Backed by lifetime structural warranty

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting and material handling equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

MAIN BOOM TIP HEIGHT

130′ / 39,6 M

ARTICULATING TIP HEIGHT

150′ / 45,7 M

WORKING SIDE REACH

70′ / 21,3 M

BOOM SECTIONS
5

MAIN BOOM MATERIAL HANDLING CAPACITY

30,000 LB / 13 608 KG

ARTICULATING PLATFORM SIZE

24″X60″ / 61X152 CM

ARTICULATING PLATFORM CAPACITY

600 LB / 272 KG

TELESCOPIC PLATFORM SIZE

40″X72″ / 102X183 CM

TELESCOPIC PLATFORM CAPACITY

1,000 LB / 454 KG

HORIZONTAL REACH

40″X72″ / 102X183 CM

OUTRIGGER TYPE FRONT

EZ CRIB

OUTRIGGER SPREAD FRONT

21’2″ / 6,4 M

OUTRIGGER TYPE REAR

EZ CRIB

OUTRIGGER SPREAD REAR

21’2″ / 6,4 M

UNIT WEIGHT (BARE)

CONTACT FACTORY

OVERALL HEIGHT
12’6” / 3,8 M
RECOMMENDED CAB TO AXLE (CA)

204″/518 CM

RECOMMENDED GVWR

62,500 LB / 28 350 KG
