Smart Reach.
Serious Performance.
E145 E-LINE
Purpose-Built 145-Foot Aerial for Utility Transmission and Power Line Access
Engineered for Utility Demands, Built for Long-Term Uptime.
The Elliott E145 is a purpose-built material handling aerial work platform designed to handle the real-world demands of transmission line construction equipment with strength, precision, and efficiency. Featuring 145 feet of fully powered working height, ANSI A92.2 compliance, and Elliott’s signature smooth control system, the E145 delivers dependable high-reach performance on even the most demanding job sites.
Equipped with EZ Crib® high-penetration outriggers, a 30 mph wind rating, built-in anemometer, and optional material handling capabilities, the E145 provides the power and stability transmission contractors and utilities need—with the safety and reliability they expect.
Suggested industries
Why choose the E145?
Why choose
the E145?

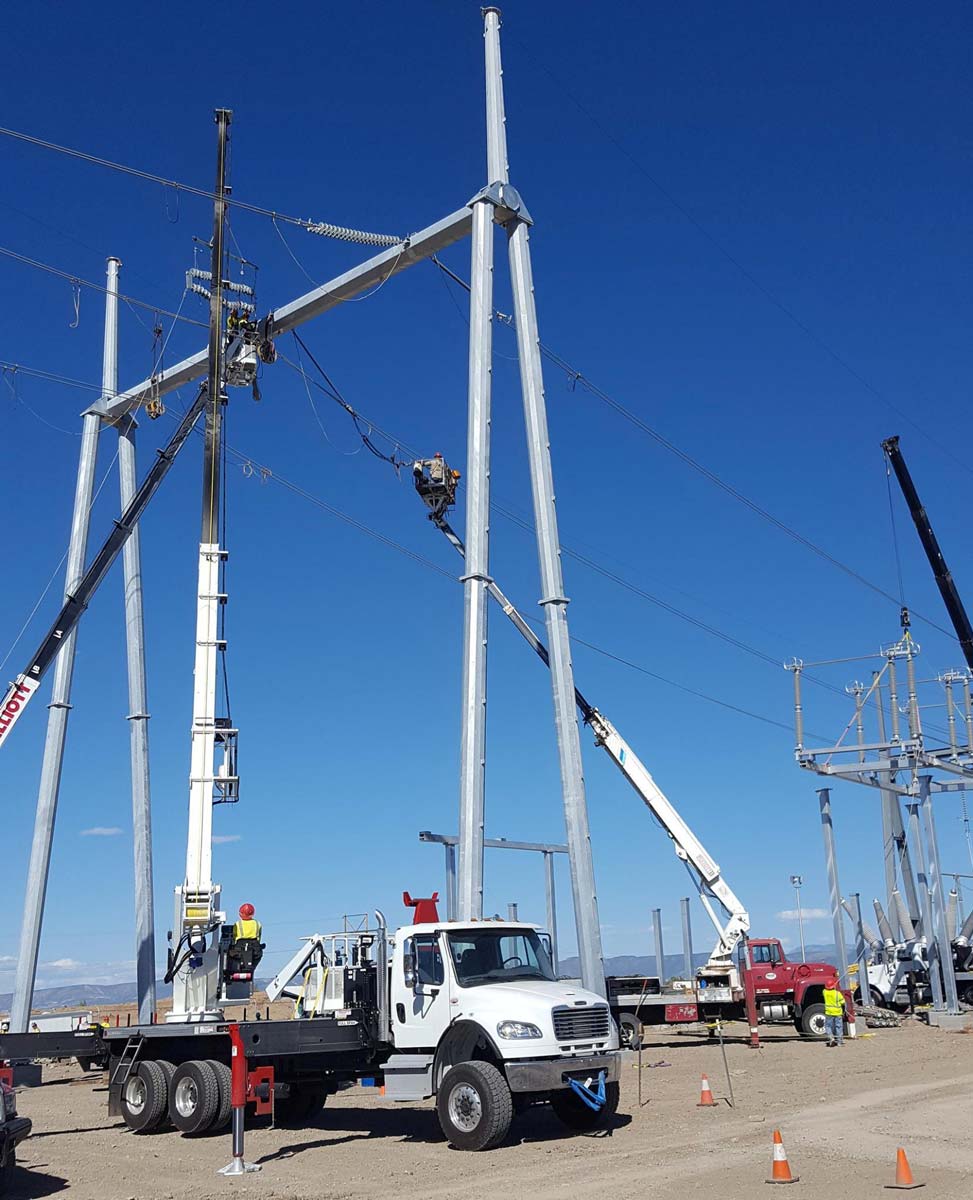

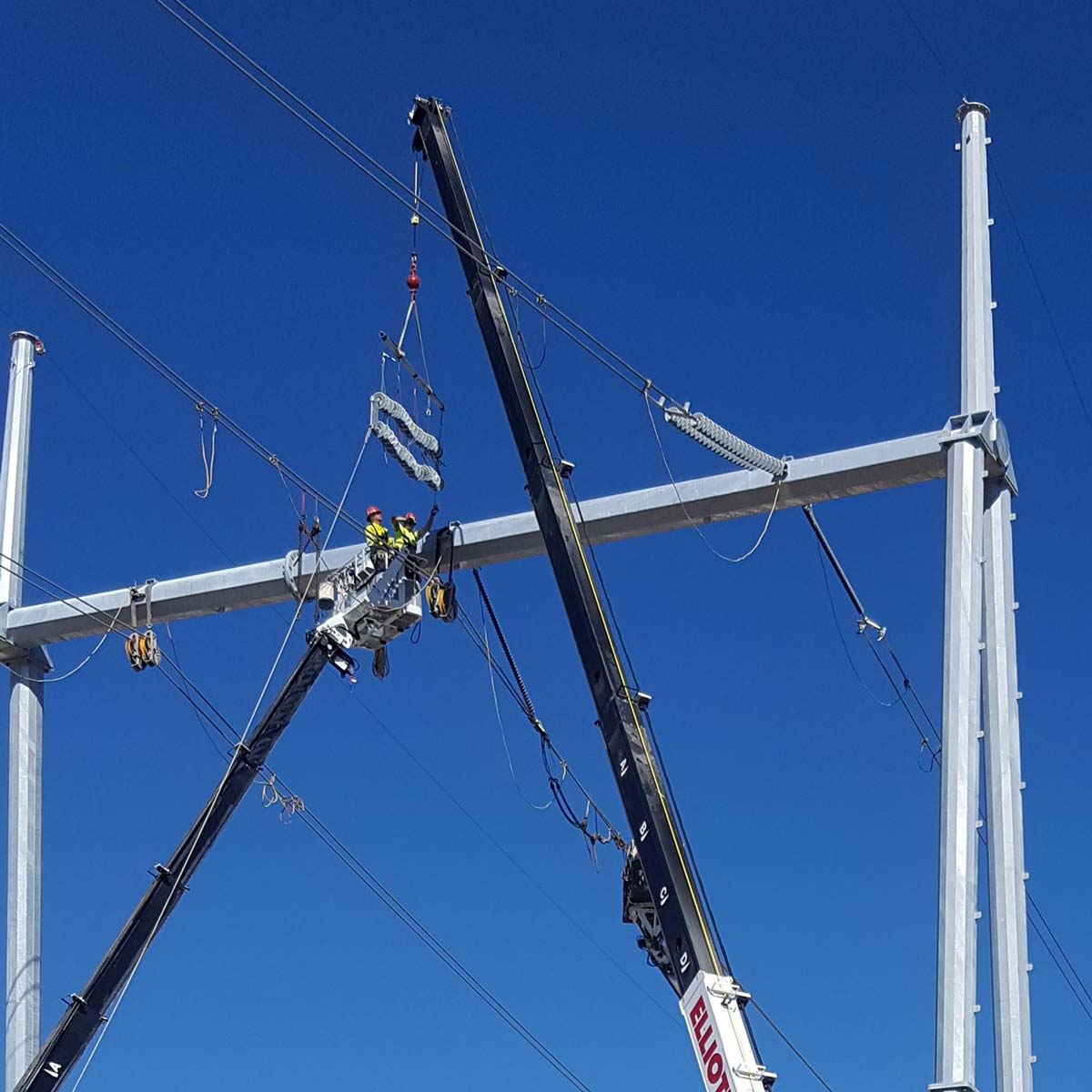

Purpose-Built for Transmission Line Work
Unlike modified aerials or retrofitted cranes, the E145 is engineered from the ground up for utility transmission and substation projects. Its long reach, smooth controls, and optional material handling features make it ideal for energized and greenfield construction.
Fully ANSI A92.2 Compliant
All structural, stability, and hydraulic systems meet stringent ANSI A92.2 compliant lift standards. Whether lifting personnel or materials, the E145 delivers safe, stable, and certified performance.
EZ Crib® Outriggers for Faster Setup
Elliott’s exclusive EZ Crib outriggers reduce the need for extra cribbing—speeding up setup, minimizing strain on the crew, and improving daily productivity.
Built for Real-World Wind Conditions
With a 30 mph wind rating on the main boom and a standard integrated anemometer, the E145 helps crews stay on schedule—even when the weather turns.

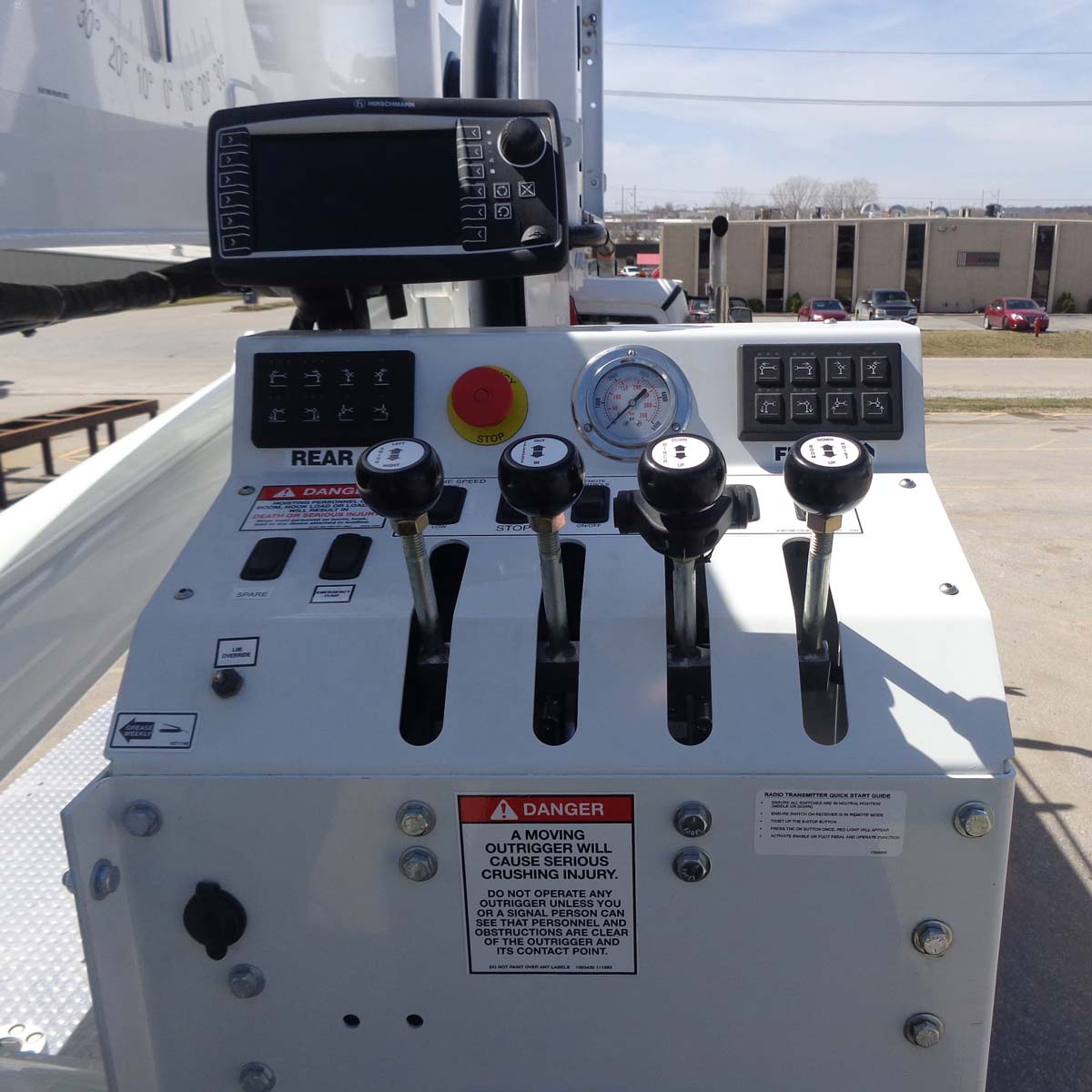

Precision Controls for Safer Operation
Operators benefit from Elliott’s finely tuned hydraulic system, delivering responsive, stable movement even at full extension. That means fewer corrections, faster task completion, and safer job sites.
Smart ROI for Your Fleet
The E145 reduces the need for multiple machines, shortens setup time, and improves crew productivity—helping drive down cost per job. With a proven, low-maintenance design, it’s a long-term asset that delivers return every time it rolls out.
Built For You
The E145 reflects Elliott’s core belief: the best machines are built in partnership with the people who use them. From high-voltage contractors to investor-owned utilities, those who rely on Elliott know they’re getting more than a machine—they’re getting a tool they can count on, every day. The E145 is transmission line construction equipment that’s truly Built For You.
E145 technical specs
E145
Technical specs
WORKING HEIGHT
145′ / 44,2 MWORKING SIDE REACH
80′ / 24,4 MBOOM SECTIONS
5PLATFORM TYPE
YOKE-MOUNTPLATFORM CAPACITY
1,200 LB / 544 KGPLATFORM SIZE
36″ X 72″ / 91 X 183 CMJIB WINCH CAPACITY
N/AMAIN WINCH CAPACITY
18,000 LB / 8,165 KGOUTRIGGER TYPE FRONT
OUT-DOWNOUTRIGGER SPREAD FRONT
21’2″ / 6,4 MOUTRIGGER TYPE REAR
OUT-DOWNOUTRIGGER SPREAD REAR
21’2″ / 6,4 MUNIT WEIGHT (BARE)
CONTACT FACTORYOVERALL HEIGHT
12’6” / 3,8 MRECOMMENDED CAB TO AXLE (CA)
204″/518 CMRECOMMENDED GVWR
58,000 LB / 26,308 KG145′ / 44,2 M
80′ / 24,4 M
5
YOKE-MOUNT
1,200 LB / 544 KG
36″ X 72″ / 91 X 183 CM
N/A
18,000 LB / 8,165 KG
OUT-DOWN
21’2″ / 6,4 M
OUT-DOWN
21’2″ / 6,4 M
CONTACT FACTORY
12’6” / 3,8 M
204″ / 518 CM
58,000 LB / 26,308 KG
MADE IN OMAHA,
TRUSTED BENEFITS
Elliott Equipment is family-owned and proudly American-built in Omaha, Nebraska. Designed to excel in utility transmission, wind, and other applications requiring extended reach, material handling capabilities, and robust construction, the E-Line is the ultimate choice for professionals who refuse to compromise.
Customize it for your crew
From lighting installs to bridge inspections, the E145 is made to fit your application. Add sign forks, platform lighting, composite pads, custom paint, or whatever your job demands.
Ready to see it in action?
Let’s build the perfect E145 for your team. Contact us today to talk specs, customizations, and dealer availability.
Trusted by Industry Leaders Nationwide
built to last.
lifetime warranty
Elliott Equipment Company specializes not only in flexibility and customization, but also in building some of the toughest equipment on the market. With our standard warranty, the best warranty in the industry, we can guarantee that our trucks are built to last.
Ask about our lifetime structural warranty and comprehensive one-year parts & labor warranty.
Any Questions?
OUR FAQs
Don’t see your question? Contact an expert. We’ll help you get everything sorted out!
What are the working height and side reach of the E145 E‑Line?
The E145 offers a 145′ (44.2 m) working height with an 80′ (24.4 m) side reach, making it one of the tallest and far-reaching telescopic aerials in its class
How big is the platform and what is its load capacity?
It features a 36″ × 72″ (91 × 183 cm) gravity‑leveled steel platform with a substantial 1,200 lb (544 kg) capacity—perfect for two workers operating simultaneously with tools
What makes the setup faster and more efficient?
The E145 uses EZ‑Crib outriggers that deliver an extra 30″ of vertical penetration, reducing cribbing time and effort. Boom controls are smooth and performance envelopes are tailored for exceptional handling at height.
Is the E145 compliant with safety standards and warranty-backed?
What are the working height and side reach of the E145 E‑Line?
The E145 offers a 145′ (44.2 m) working height with an 80′ (24.4 m) side reach, making it one of the tallest and far-reaching telescopic aerials in its class.
How big is the platform and what is its load capacity?
It features a 36″ × 72″ (91 × 183 cm) gravity‑leveled steel platform with a substantial 1,200 lb (544 kg) capacity—perfect for two workers operating simultaneously with tools.
What makes the setup faster and more efficient?
The E145 uses EZ‑Crib outriggers that deliver an extra 30″ of vertical penetration, reducing cribbing time and effort. Boom controls are smooth and performance envelopes are tailored for exceptional handling at height
Is the E145 compliant with safety standards and warranty-backed?
Yes. It’s fully compliant with ANSI A92.2 and designed to withstand winds up to 30 mph on the main boom. It’s also backed by Elliott’s lifetime structural warranty.
