D47i DIGGER DERRICK (46 kV)

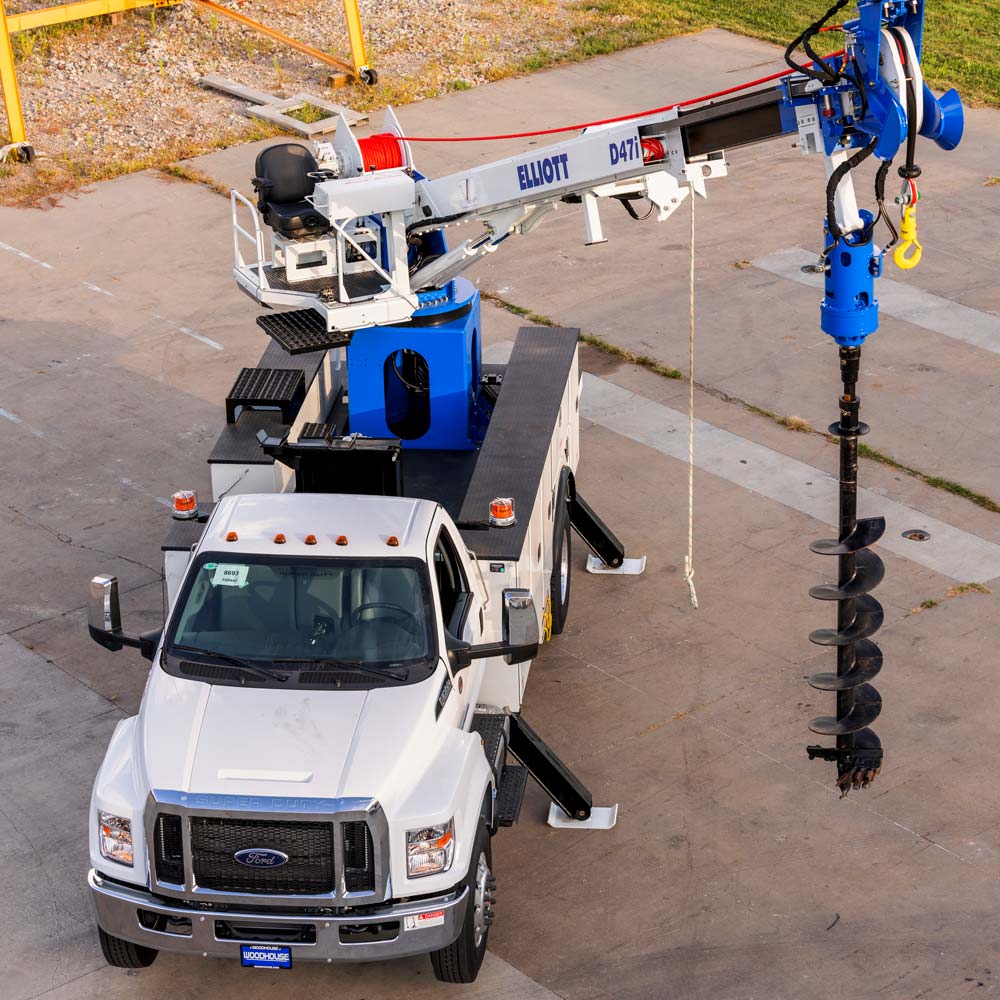

Designed for utility transmission line and construction work, Elliott digger derricks offer best-in-class performance across the board. Whether you are digging a hole or handling a pole the D47i Digger Derrick is built to withstand the rigors of your job.
KEY BENEFITS
- Best in Class Lifting Capacity
- Full Pressure Open Center Hydraulics
- Premium Planetary Swing Drive & Winch Motor
- Ergonomic Control Console With Air Suspension Seat
- Dual Lift Cylinders
- Hydraulic Side Load Protection
- Radio Anti-Two-Block
- 46kV Insulating
- Backed By Lifetime Structural Warranty
- ANSI A10.31 Compliant
Technical Specs
SHEAVE HEIGHT (MAXIMUM)
48’
SHEAVE HEIGHT (RETRACTED)
30’
HORIZONTAL REACH (MAXIMUM)
38′
HORIZONTAL REACH (INTERMEDIATE)
29′
HORIZONTAL REACH (RETRACTED)
20′
LIFTING CAPACITY (MAXIMUM)
26,000 lb
LIFTING CAPACITY @ 10’ RADIUS
11,500 lb
BOOM ELEVATION LIMITS
-20/+80 DEGREES
WINCH SINGLE LINE PULL
12,000 lb
BOOM ROTATION
360 DEGREES CONTINUOUS
DIGGER MOTOR TORQUE
12,000 ft-lb
DIGGER SPEED (HIGH/LOW)
80 RPM / 35 RPM
DIGGING RADIUS (MAXIMUM)
26′
DIGGING RADIUS (MINIMUM)
17′
OUTRIGGER CONFIGURATION
A FRAME
33,000 lb
OUTRIGGER SPREAD (MID-SPAN)
13’11”/4,2 M
CERTIFICATION
ANSI A10.31 FOR DIGGER DERRICKS
