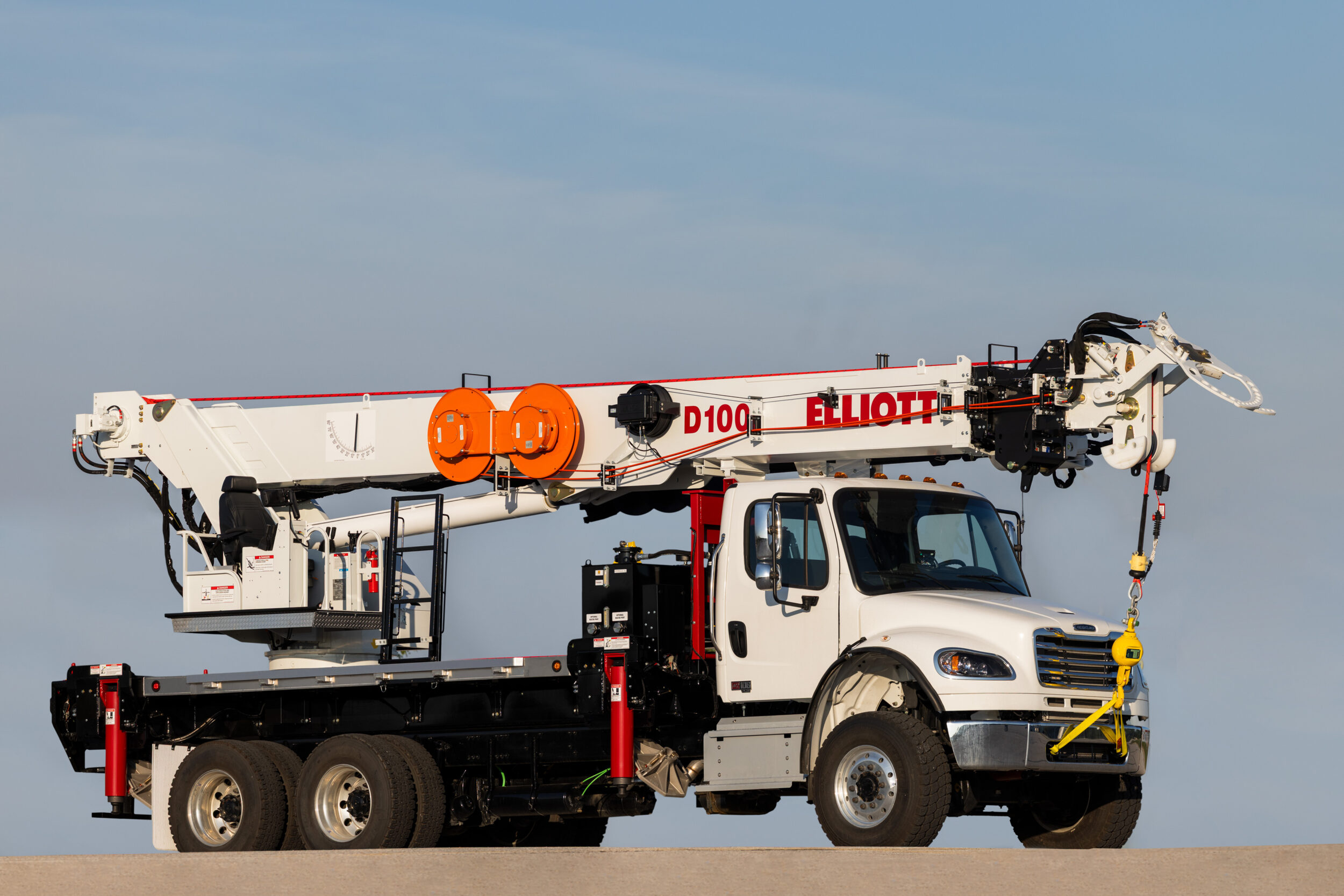

D100i DIGGER DERRICK (46 kV)
Designed for utility transmission line and construction work, Elliott digger derricks offer best-in-class performance across the board. Whether you are digging a hole, handling a pole or even using our remote-controlled work platform, the D100i Digger Derrick is built to withstand the rigors of your job.
KEY BENEFITS
- Tallest insulating digger derrick in the industry
- Highest lifting capacity in industry
- Independently controlled insulating boom
- Transferrable pole guide
- 20,000 ft-lb digging torque

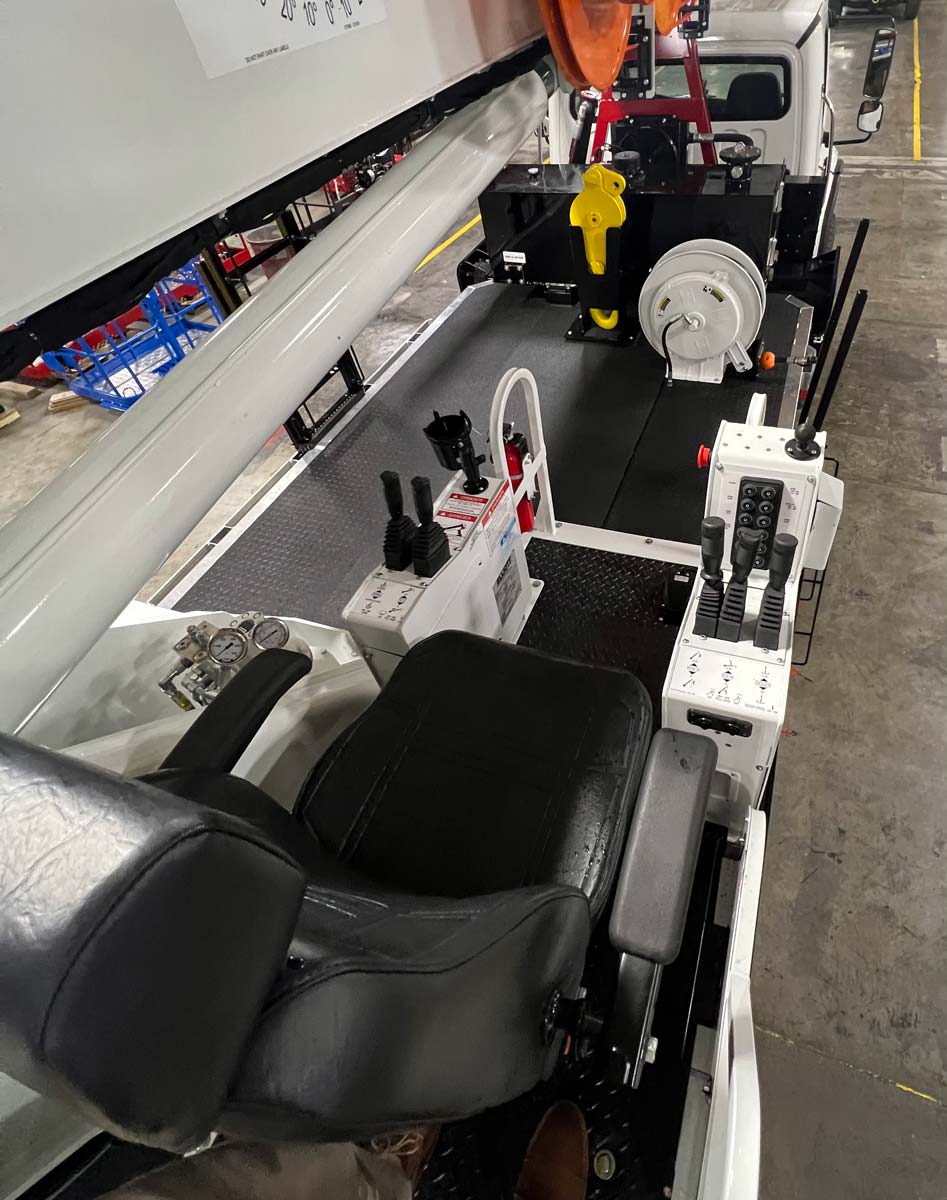

- Curbside lower control console
- Full hydraulic controls
- Short wheelbase maximizes maneuverability
- Full and mid-span load chart
- Available EZ Crib outriggers minimize cribbing
- Can handle Triple Line Lifter
- Perfect for utility construction and storm recovery work
- Backed by Lifetime Structural Warranty
- ANSI A10.31 Compliant
Elliott Equipment Company specializes in manufacturing long-lasting and reliable digging, material handling and personnel lifting equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You
Technical Specs
SHEAVE HEIGHT (MAXIMUM)
100’
SHEAVE HEIGHT (RETRACTED)
40’
HORIZONTAL REACH (MAXIMUM)
70’
HORIZONTAL REACH (INTERMEDIATE)
49’
HORIZONTAL REACH (RETRACTED)
26’
LIFTING CAPACITY (MAXIMUM)
48,000 lb
LIFTING CAPACITY @ 10’ RADIUS
36,000 lb
LIFTING CAPACITY @ 30’ RADIUS
10,800 lb
BOOM ELEVATION LIMITS
-10/+80 DEGREES

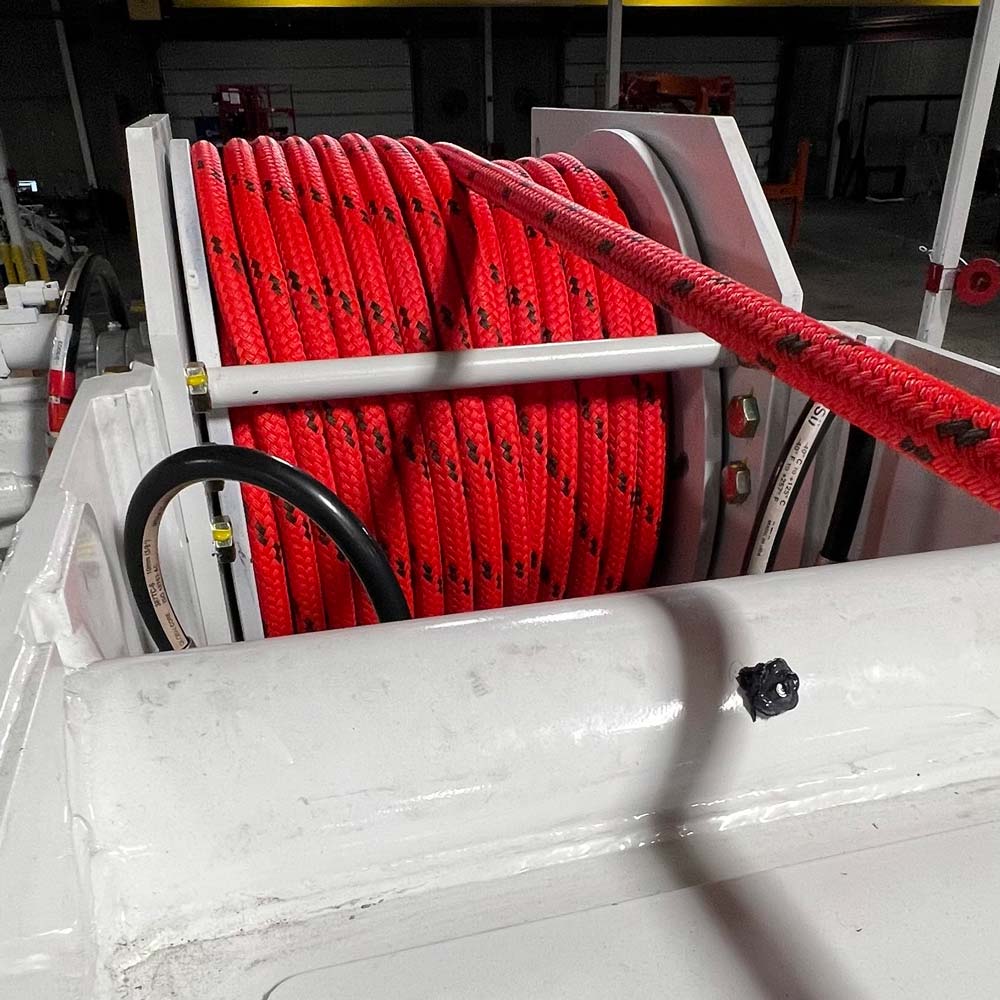

WINCH SINGLE LINE PULL
12,000 lb
BOOM ROTATION
360 DEGREES CONTINUOUS
DIGGER MOTOR TORQUE
20,000 ft-lb
DIGGER SPEED (HIGH/LOW)
80 RPM / 35 RPM
DIGGING RADIUS (MAXIMUM)
40′
DIGGING RADIUS (MINIMUM)
24’
OUTRIGGER CONFIGURATION
OUT-DOWN
OUTRIGGER SPREAD (FULL-SPAN)
20’
OUTRIGGER SPREAD (MID-SPAN)
13’11”
WHEELBASE
232”
46,000 lb
CERTIFICATION
ANSI A10.31 FOR DIGGER DERRICKS
