BoomTruck 26 - 36 Ton Lifting Capacity

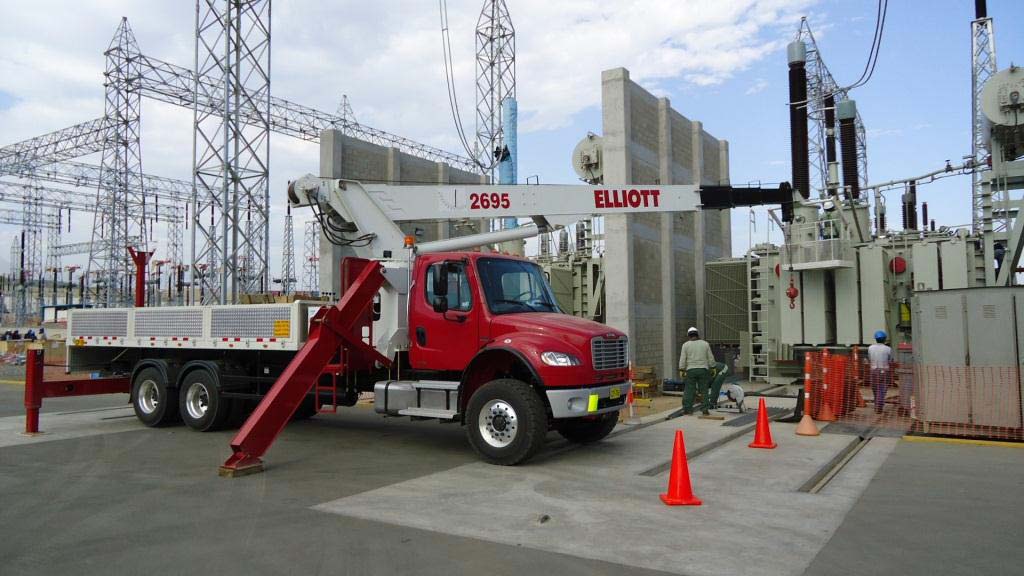

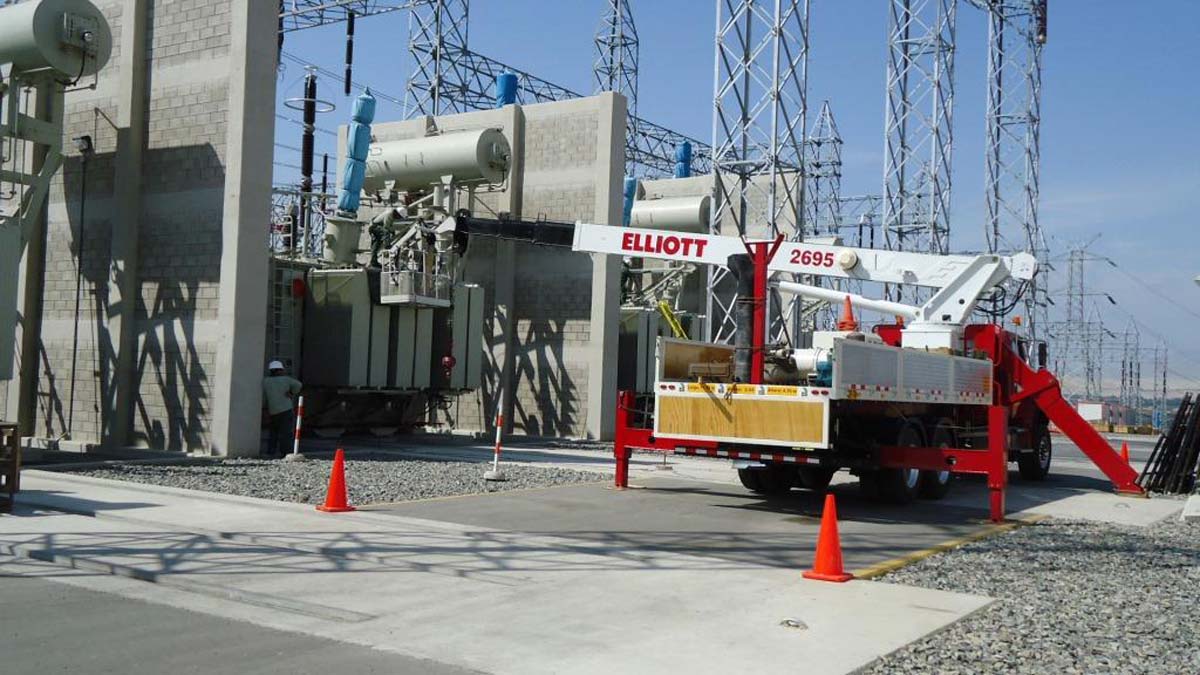

2695 BOOMTRUCK

Elliott’s 2695 BoomTruck is a rugged partner, ready to help you do your job day in and day out. Backed by the best warranty in the industry, the 2695 can be configured to meet the specific needs of your application.

KEY BENEFITS

  • Proven design ensures reliability and maximizes uptime
  • DynaSmooth hydraulic system delivers outstanding user feedback and precise control
  • Steel boom sheaves eliminate risk of distortion or ‘egging’ under load
  • Proprietary boom pad design ensures smooth boom operation
  • Two-year parts and labor warranty
  • Lifetime structural warranty for your peace of mind

Elliott Equipment Company specializes in manufacturing long-lasting and reliable material handling and personnel lifting equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

LIFTING CAPACITY
52,000 LB / 23 587 KG
BOOM LENGTH

95’ / 29 M

BOOM SECTIONS
4
JIB LENGTHS

26’, 26’-45’ / 8 M, 8-13,7 M

MAXIMUM TIP HEIGHT

152′ / 46,3 M

WINCH BARE DRUM PULL
12,800 LB / 5806 KG
WINCH SINGLE LINE PULL
9,060 LB / 4109 KG
OPERATOR CONTROLS
DUAL STANDUP
OUTRIGGER TYPE FRONT
“A” FRAME
OUTRIGGER SPREAD FRONT

20’10” / 6,3 M

OUTRIGGER TYPE REAR
OUT-DOWN
OUTRIGGER SPREAD REAR
18’2” / 5,5 M
UNIT WEIGHT (BARE)

24,920 LB / 11 303 KG

OVERALL HEIGHT
13’5″ / 4 M
RECOMMENDED CAB TO AXLE (CA)
192″ / 488 CM
RECOMMENDED GVWR

60,000 LB / 27 215 KG

Interested in speaking with an Elliott representative about this BoomTruck?
