BoomTruck 10 - 18 Ton Lifting Capacity

1870CP BOOMTRUCK

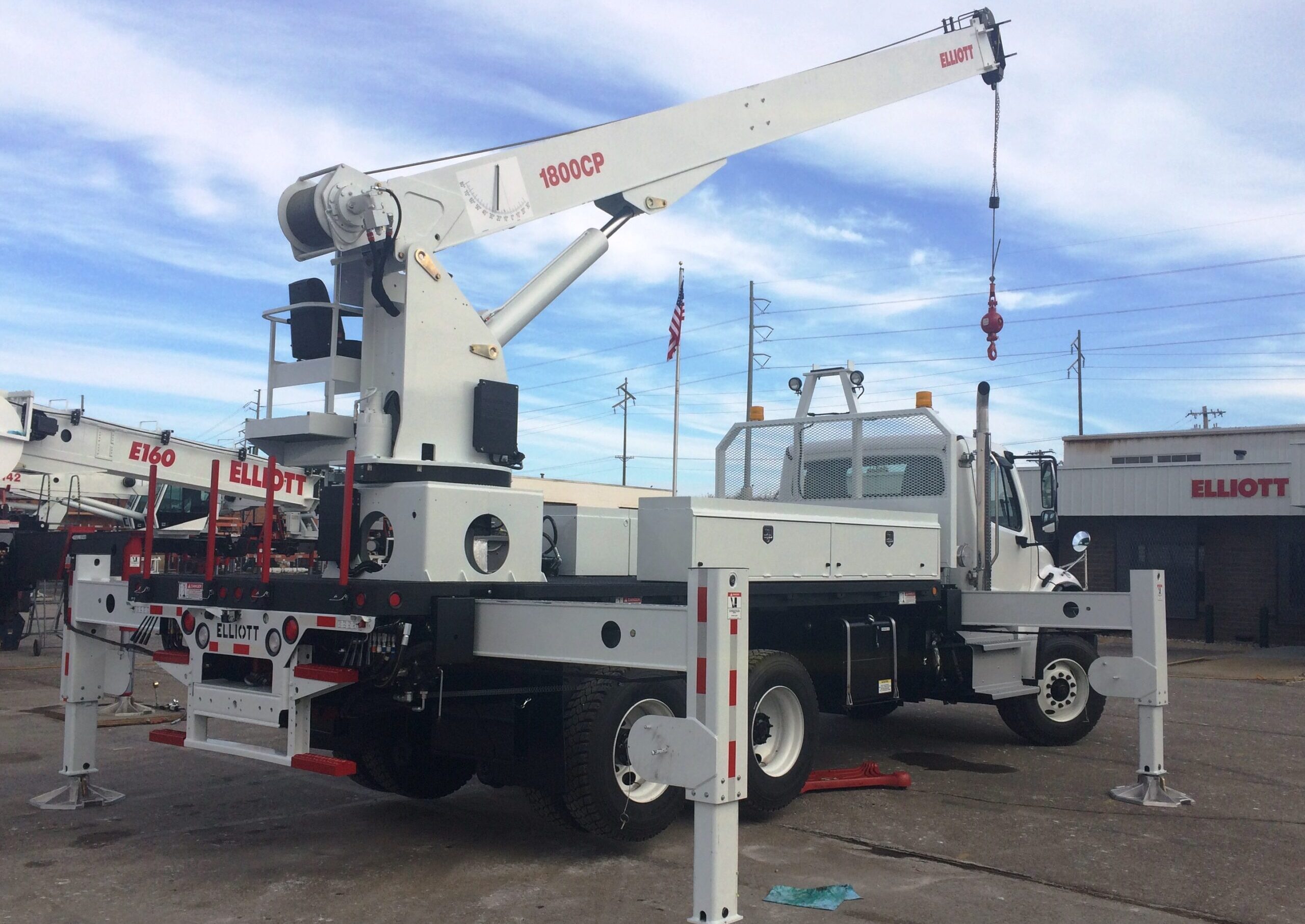

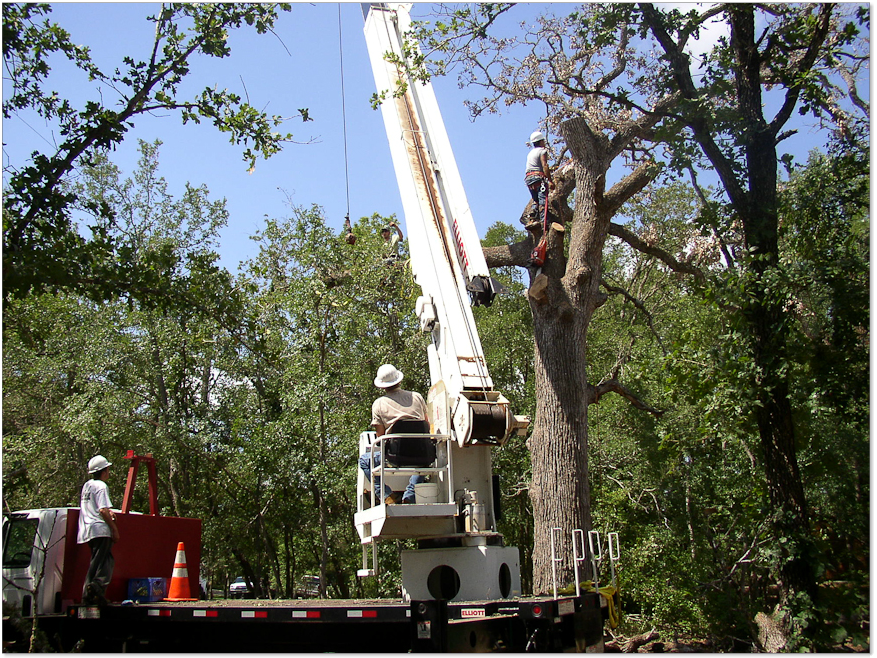

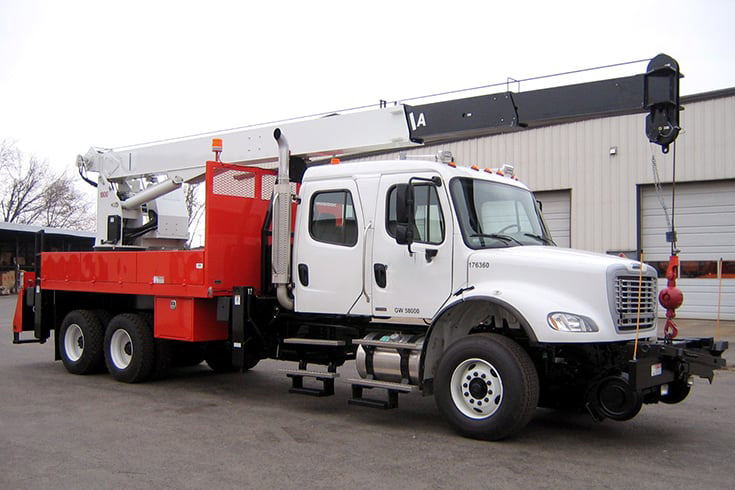

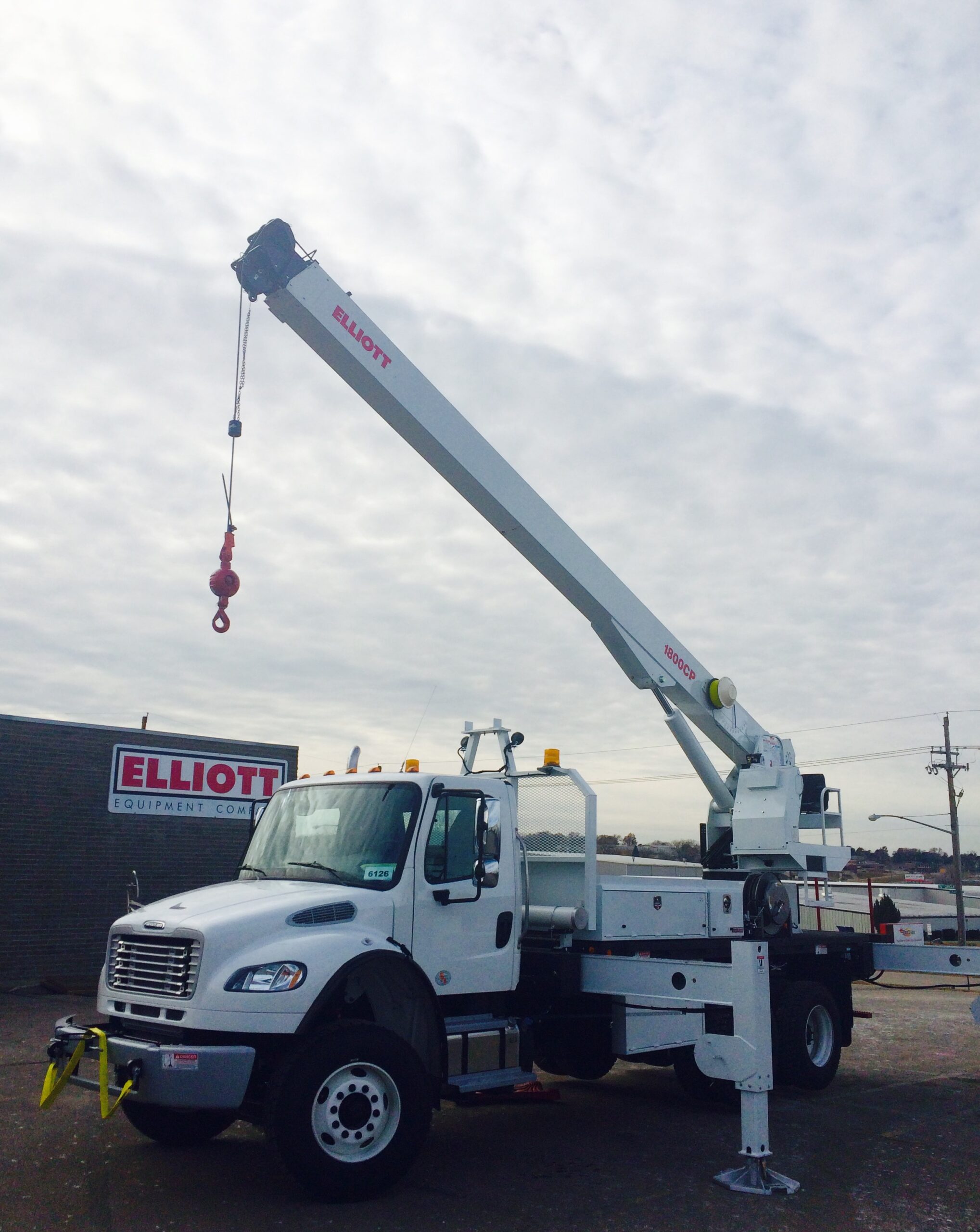

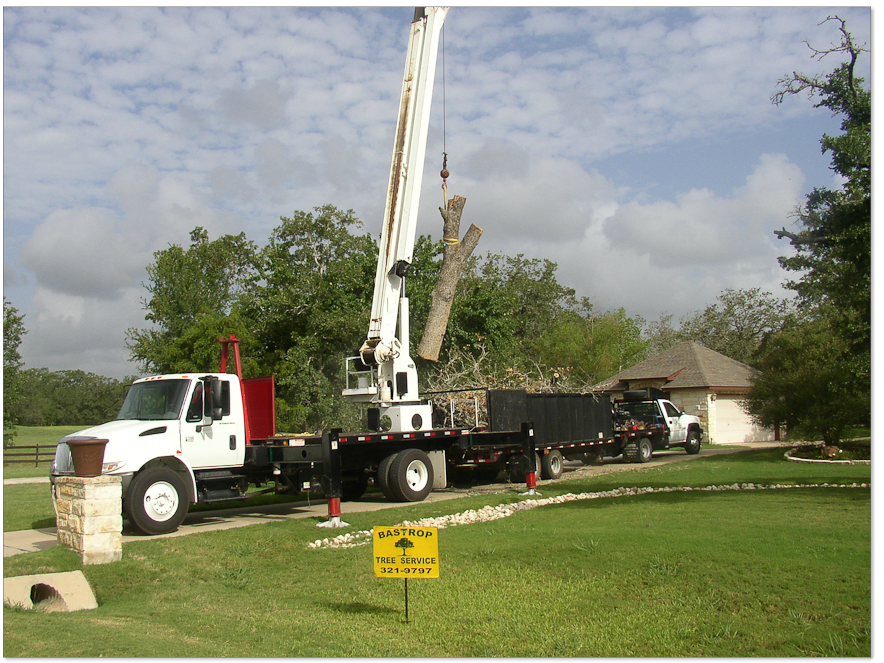

Elliott’s 1870CP BoomTruck features an 18-ton lifting capacity and a 70′ telescopic boom. The ‘CP’ stands for a ‘Command Post’ seated control station that rotates 360 degrees with the boom to provide optimized visibility and operator comfort.

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting equipment that can also lift materials, providing a versatile solution for a wide range of industries. All products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

LIFTING CAPACITY
36,000 LBS / 16 329 KG
BOOM LENGTH
70’ / 21,3 M
BOOM SECTIONS
3
JIB LENGTHS
23’, 23-40’ / 7 M, 7-12 M
MAXIMUM TIP HEIGHT
120′ / 36,6 M
WINCH BARE DRUM PULL
12,800 LBS / 5806 KG
WINCH SINGLE LINE PULL
9,600 LBS / 4354 KG
OPERATOR CONTROLS

COMMAND POST

OUTRIGGER TYPE FRONT

OUT-DOWN

OUTRIGGER SPREAD FRONT

17’6” / 5,3 M

OUTRIGGER TYPE REAR

OUT-DOWN

OUTRIGGER SPREAD REAR

17’6” / 5,3 M

UNIT WEIGHT (BARE)

16,235 LBS / 7364 KG

OVERALL HEIGHT

12’10” / 3,9 M

RECOMMENDED CAB TO AXLE (CA)

156″ / 396 CM

RECOMMENDED GVWR
33,000 LBS / 14 969 KG
