BoomTruck 10 - 18 Ton Lifting Capacity

18125 BOOMTRUCK

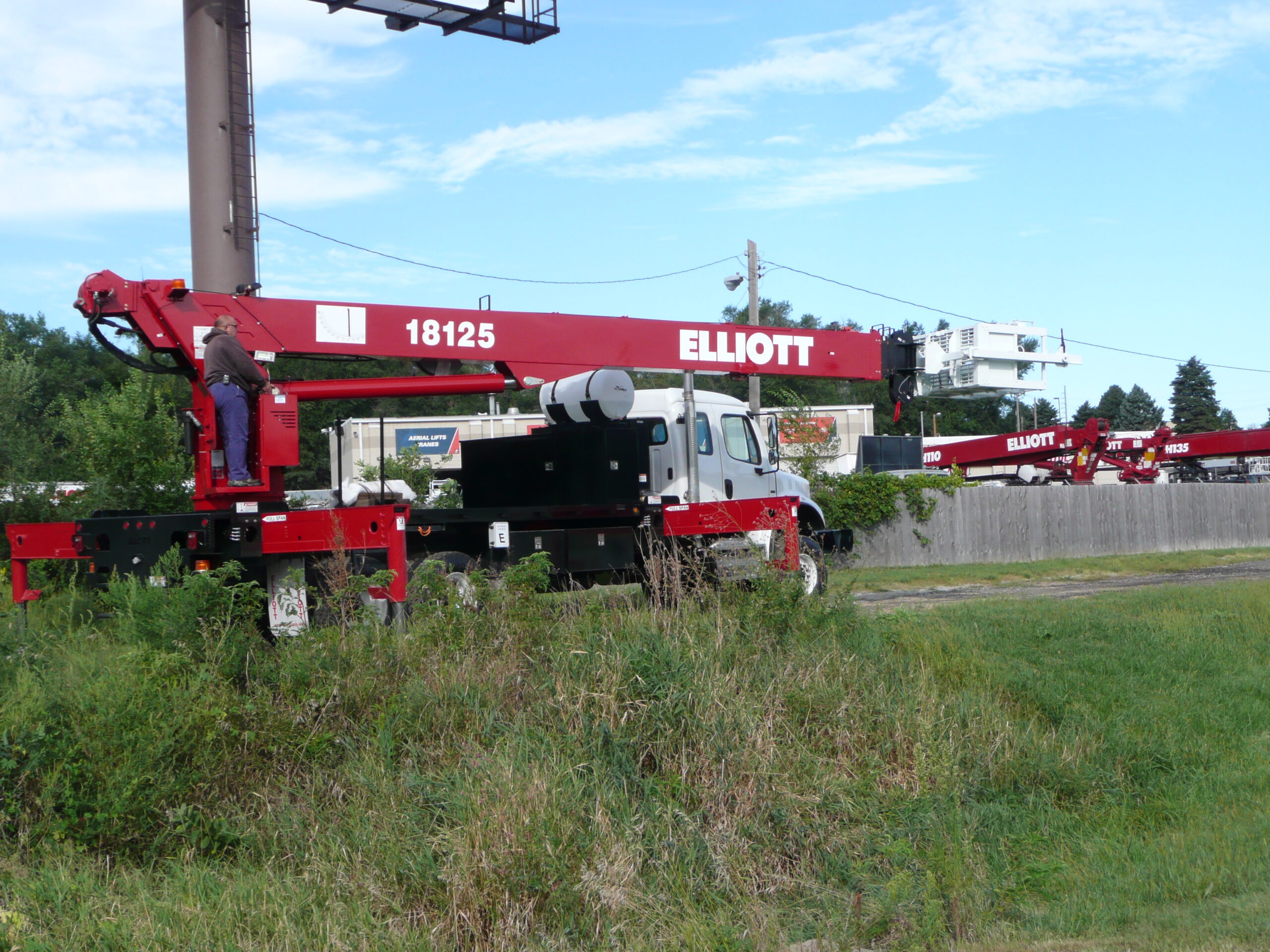

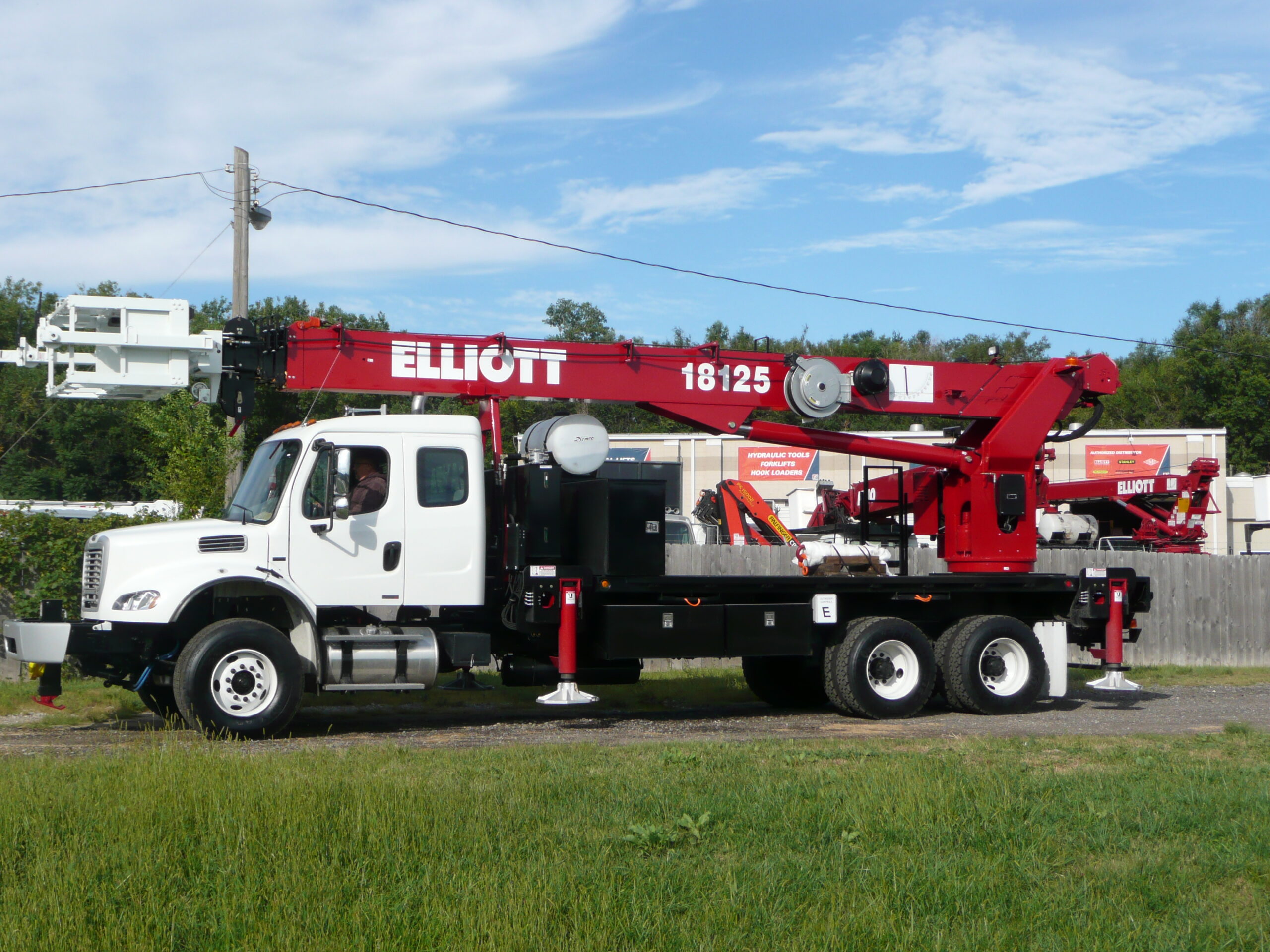

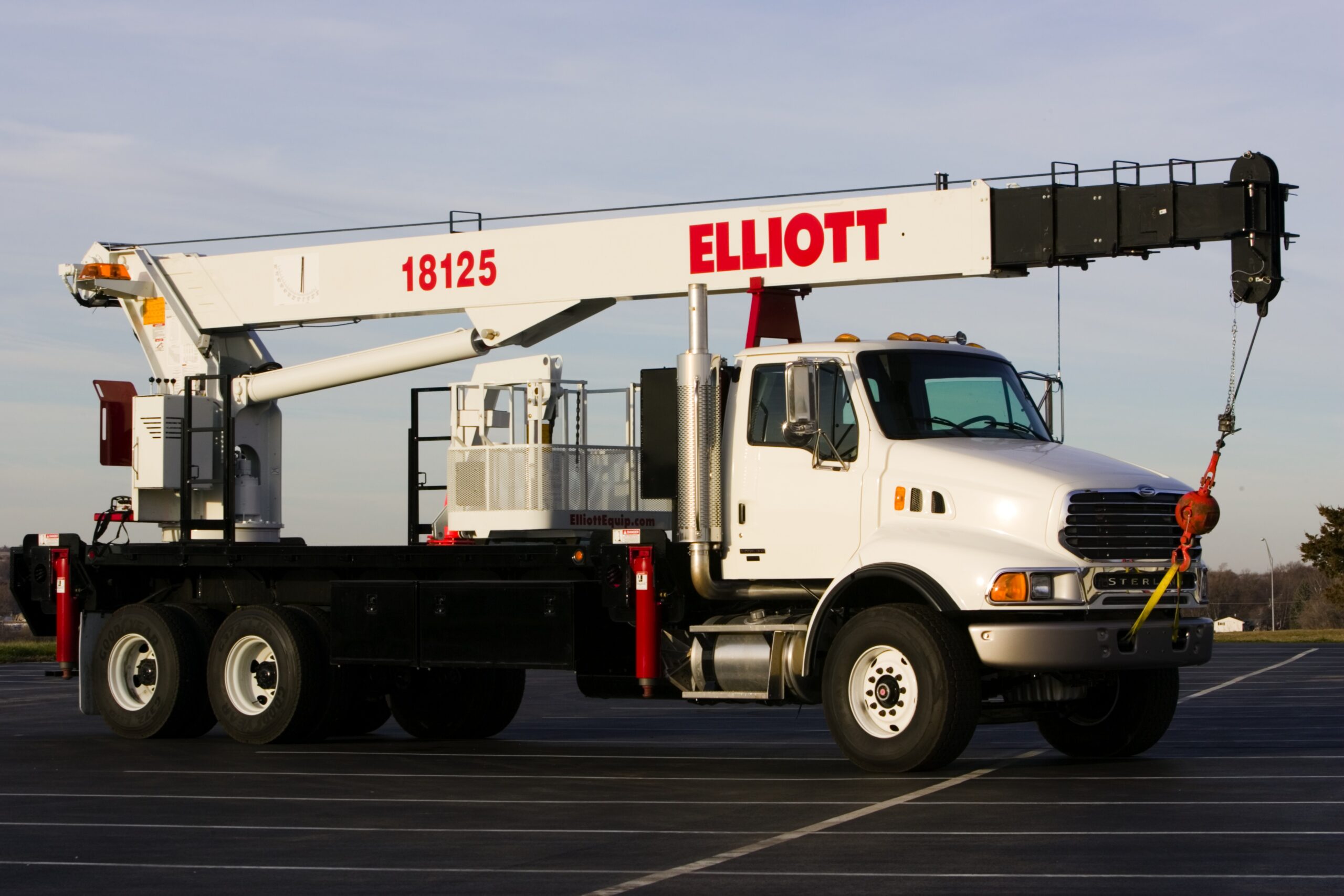

Elliott’s 18125 BoomTruck features an 18-ton lifting capacity and a 125′ telescopic boom.

Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting equipment that can also lift materials, providing a versatile solution for a wide range of industries. All products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

LIFTING CAPACITY
36,000 LBS / 16 329 KG
BOOM LENGTH

125’ / 38,1 M

BOOM SECTIONS

5

JIB LENGTHS

N/A

MAXIMUM TIP HEIGHT

137′ / 41,7 M

WINCH BARE DRUM PULL
12,800 LBS / 5806 KG
WINCH SINGLE LINE PULL

9,060 LBS / 4109 KG

OPERATOR CONTROLS

ROTATING STANDUP

OUTRIGGER TYPE FRONT
OUT-DOWN
OUTRIGGER SPREAD FRONT

20′ / 6,1 M

OUTRIGGER TYPE REAR
OUT-DOWN
OUTRIGGER SPREAD REAR

20′ / 6,1 M

UNIT WEIGHT (BARE)

27,500 LBS / 12 474 KG

OVERALL HEIGHT

13’5″ / 4,1 M

RECOMMENDED CAB TO AXLE (CA)

192″ / 488 CM

RECOMMENDED GVWR

60,000 LBS / 27 215 KG
