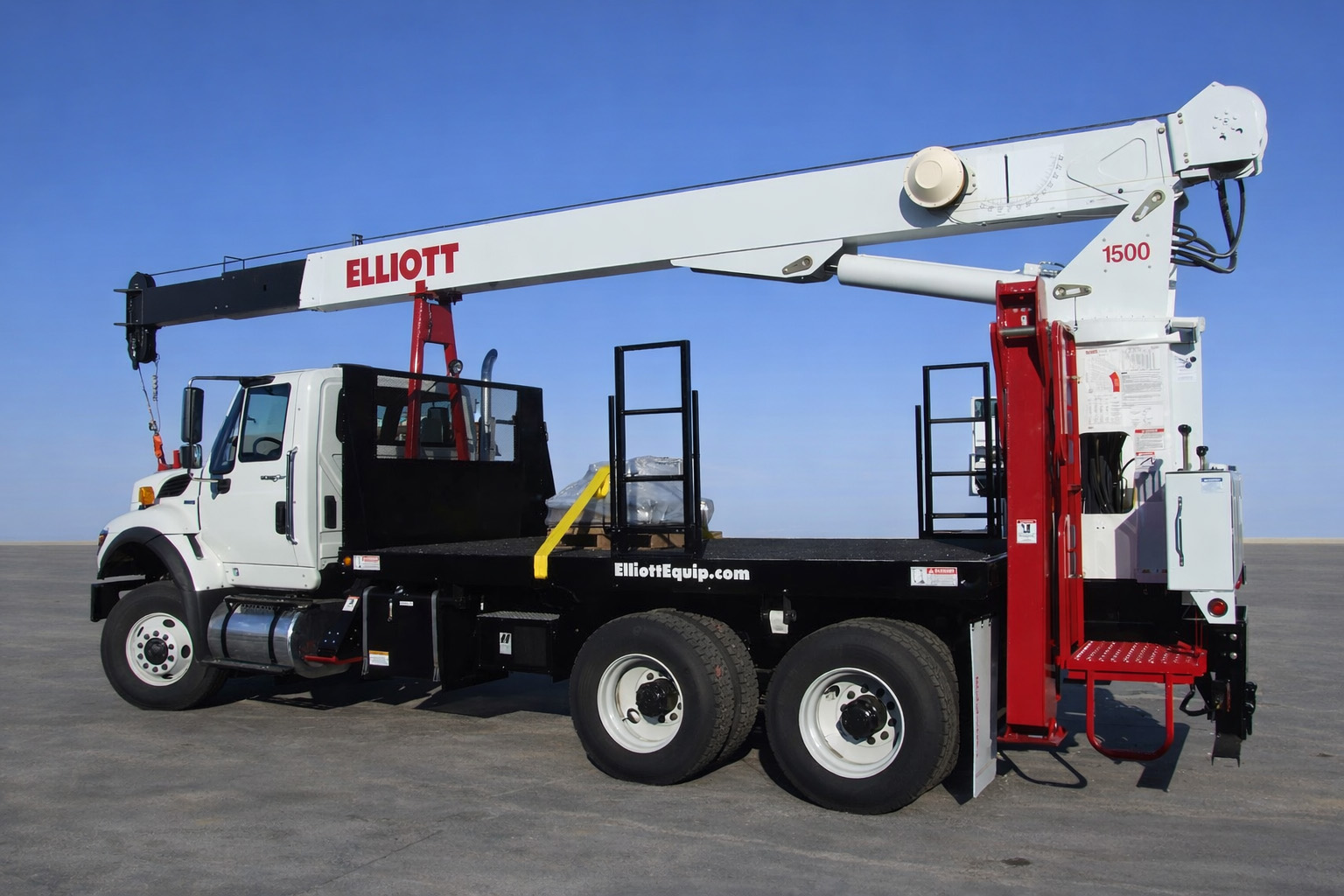

1560 BOOMTRUCK

Elliott’s 1560 BoomTruck is a rugged partner, ready to help you do your job day in and day out. Backed by the best warranty in the industry, the 1560 can be configured to meet the specific needs of your application.

KEY BENEFITS

  • Proven design ensures reliability and maximizes uptime
  • DynaSmooth hydraulic system delivers outstanding user feedback and precise control
  • Steel boom sheaves eliminate risk of distortion or ‘egging’ under load
  • Proprietary boom pad design ensures smooth boom operation
  • Two-year parts and labor warranty
  • Lifetime structural warranty for your peace of mind

Elliott Equipment Company specializes in manufacturing long-lasting and reliable material handling and personnel lifting equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You

Technical Specs

LIFTING CAPACITY

30,000 LB / 13 608 KG

BOOM LENGTH

60’ / 18,3 M

BOOM SECTIONS
3
JIB LENGTHS

20’ / 6,1 M

MAXIMUM TIP HEIGHT

90′ / 27,4 M

WINCH BARE DRUM PULL
12,800 LB / 5806 KG
WINCH SINGLE LINE PULL
9,600 LB / 4354 KG
OPERATOR CONTROLS
DUAL STANDUP
OUTRIGGER TYPE FRONT
A-FRAME
OUTRIGGER SPREAD FRONT

20’10” / 6,3 M

OUTRIGGER TYPE REAR

“A” STAB

OUTRIGGER SPREAD REAR
10’4” / 3,1 M
UNIT WEIGHT (BARE)

14,825 LB / 6725 KG

OVERALL HEIGHT

12’11” / 3,9 M

RECOMMENDED CAB TO AXLE (CA)

168″ / 427 CM

RECOMMENDED GVWR
33,000 LB / 14 968 KG
