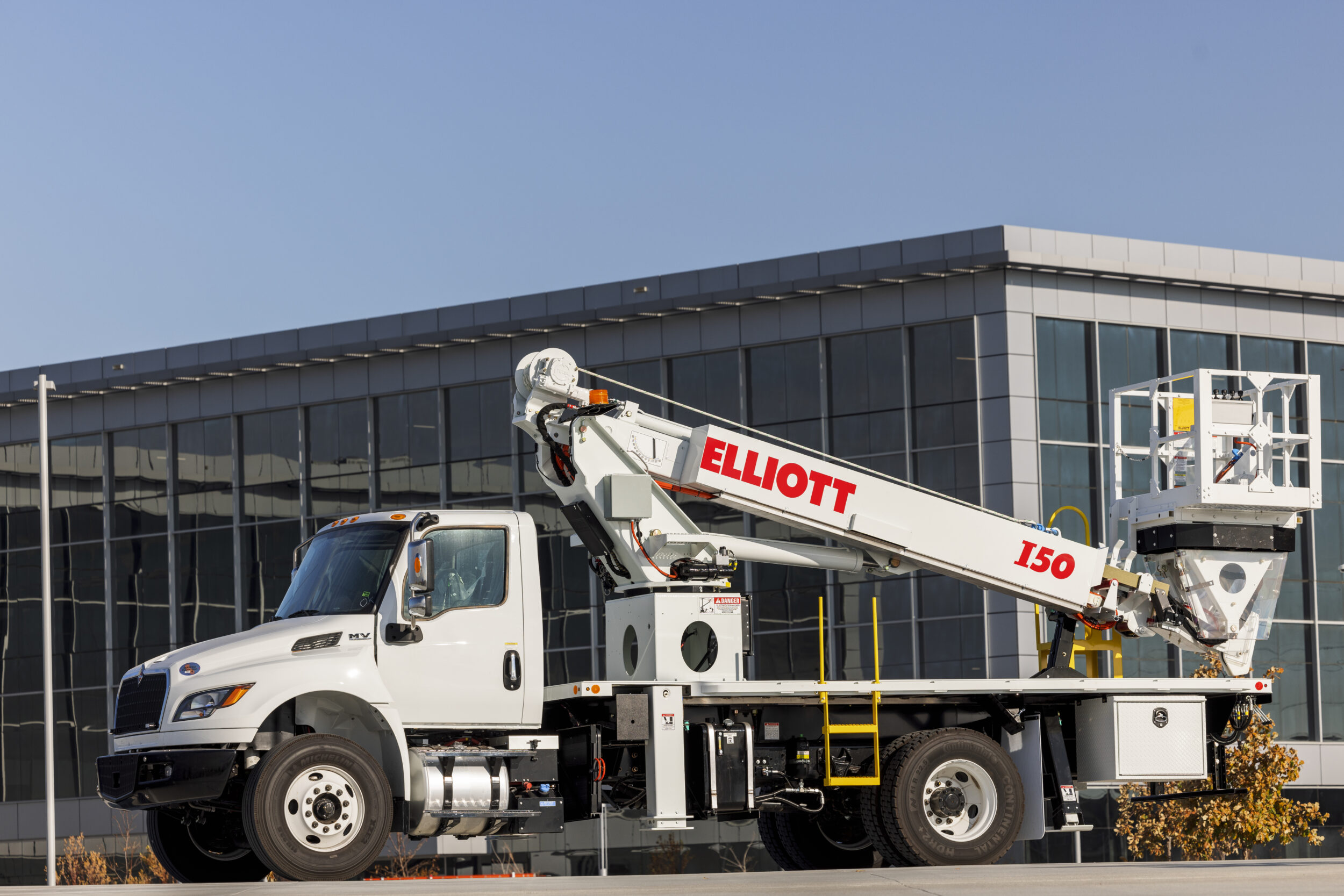

Insulated Aerial with Class-Leading Lifting Power
I50F HIREACH (46KV)
High-capacity, zero-tailswing lift built for utility and infrastructure.
The I50 delivers unmatched lifting capability in a 50-foot insulated aerial platform. With its zero-tailswing, point-and-shoot design and spacious work platform, it’s built for efficient performance on utility, rail, and municipal jobs where safety, reach, and power matter most.
Suggested industries

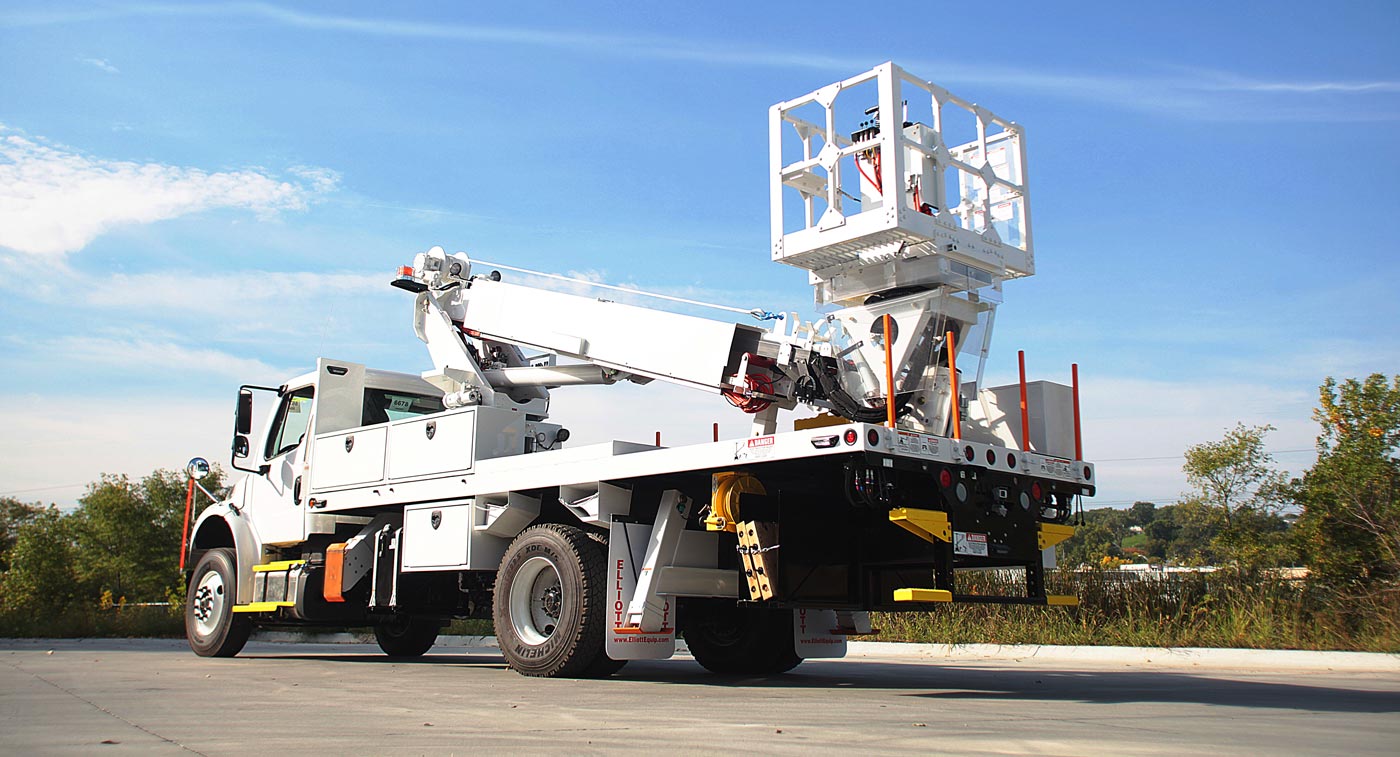

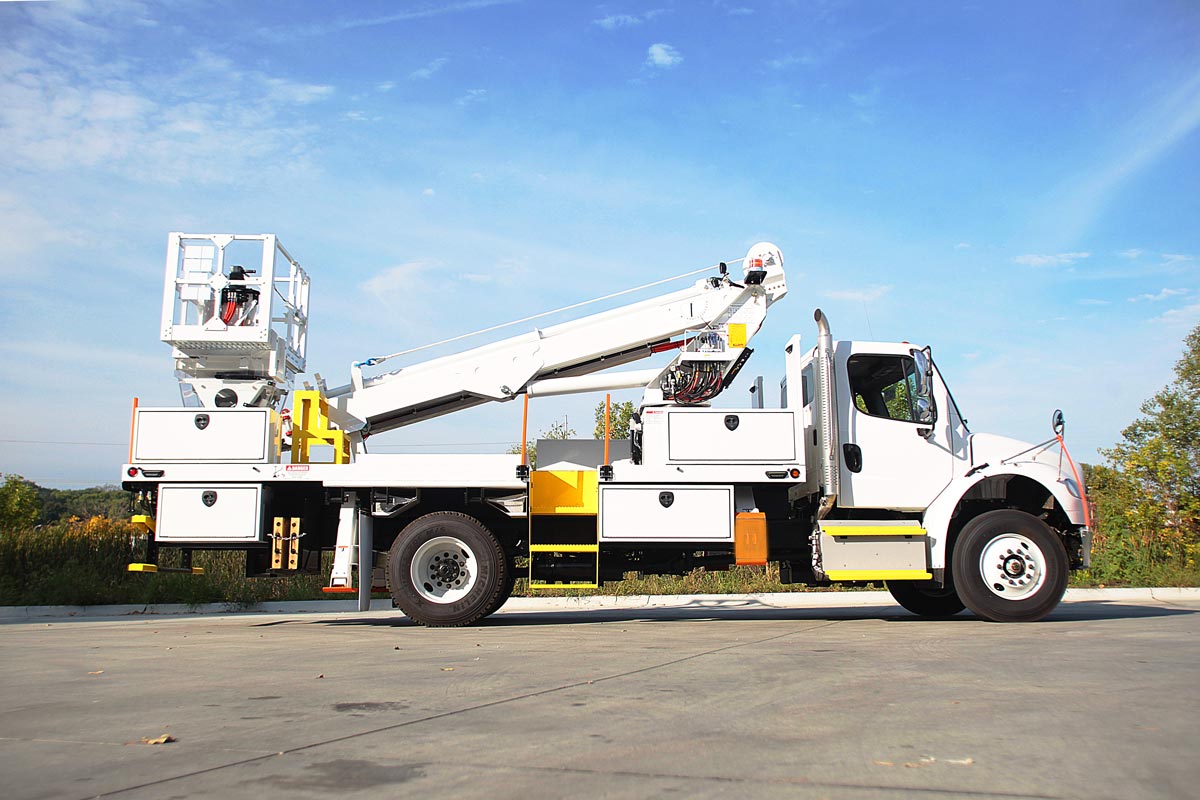

Why choose the I50F?
Why choose
the I50F?
EXPANDED WORKSPACE, SAME FOOTPRINT
The I50F’s 40” x 60” fiberglass platform offers double the work area of a traditional two-worker bucket—giving your crew more space to move, organize tools, and complete tasks faster without crowding.
UNRESTRICTED REACH WITH ZERO TAILSWING
Work smarter, not harder. With unrestricted side reach and zero tailswing, the I50F allows you to boom out freely in tight areas and get more done per setup—especially critical in congested urban or roadside environments.
EFFICIENT MATERIAL HANDLING AT HEIGHT
Eliminate the need for additional equipment. The I50F supports material handling both on the main boom and within the platform, so you can lift personnel and payloads in a single, streamlined operation.
YOUR OFFICE IN THE SKY
Designed for real productivity, the I50F platform features integrated accessories like power outlets, hydraulic ports, and welder leads, putting everything you need right at height where the work happens.
BUILT TO LAST, BACKED FOR LIFE
With heavy-duty structural components, ANSI A92.2 compliance, and Elliott’s lifetime structural warranty, the I50F delivers long-lasting reliability, safety, and peace of mind across every job and every mile.
I50F technical specs
I50F
Technical specs
WORKING HEIGHT
55′ / 16,8 MWORKING SIDE REACH
40′ / 12,2 MBOOM SECTIONS
3PLATFORM TYPE
INSULATED TOP-MOUNTPLATFORM CAPACITY
600 LB / 272 KGPLATFORM SIZE
40″X60″ / 102 X 152 CMJIB WINCH CAPACITY
500 LB / 227 KGMAIN WINCH CAPACITY
3,650 LB / 1656 KGOUTRIGGER TYPE FRONT
A-TYPEOUTRIGGER SPREAD FRONT
12′6 / 3,8 MOUTRIGGER TYPE REAR
A-UNDERSLUNGOUTRIGGER SPREAD REAR
8′ / 2,4 MUNIT WEIGHT (BARE)
11,500 LB / 5216 KGOVERALL HEIGHT
11’6” / 3,4 MRECOMMENDED CAB TO AXLE (CA)
120” / 305 CMRECOMMENDED GVWR
25,999 LB / 11,793 KG55′ / 16,8 M
40′ / 12,2 M
3
INSULATED TOP-MOUNT
600 LB / 272 KG
40" x 60" / 102 x 152 CM
500 LB / 227 KG
3,650 LB / 1,656 KG
A-TYPE
12'6" / 3,8 M
A-UNDERSLUNG
8' / 2,4 M
11,500 LB / 5216 KG
11'6" / 3,4 M
120” / 305 CM
25,999 LB / 11,793 KG
MADE IN OMAHA,
TRUSTED BENEFITS
Elliott Equipment is family-owned and proudly American-built in Omaha, Nebraska. Each HiReach is designed for long-term performance with premium hydraulics, Bluetooth diagnostics, and fewer leak points, backed by a lifetime structural warranty.
Customize it for your crew
From lighting installs to bridge inspections, the I50F is made to fit your application. Add sign forks, platform lighting, composite pads, custom paint, or whatever your job demands.
Ready to see it in action?
Let’s build the perfect I50F for your team. Contact us today to talk specs, customizations, and dealer availability.

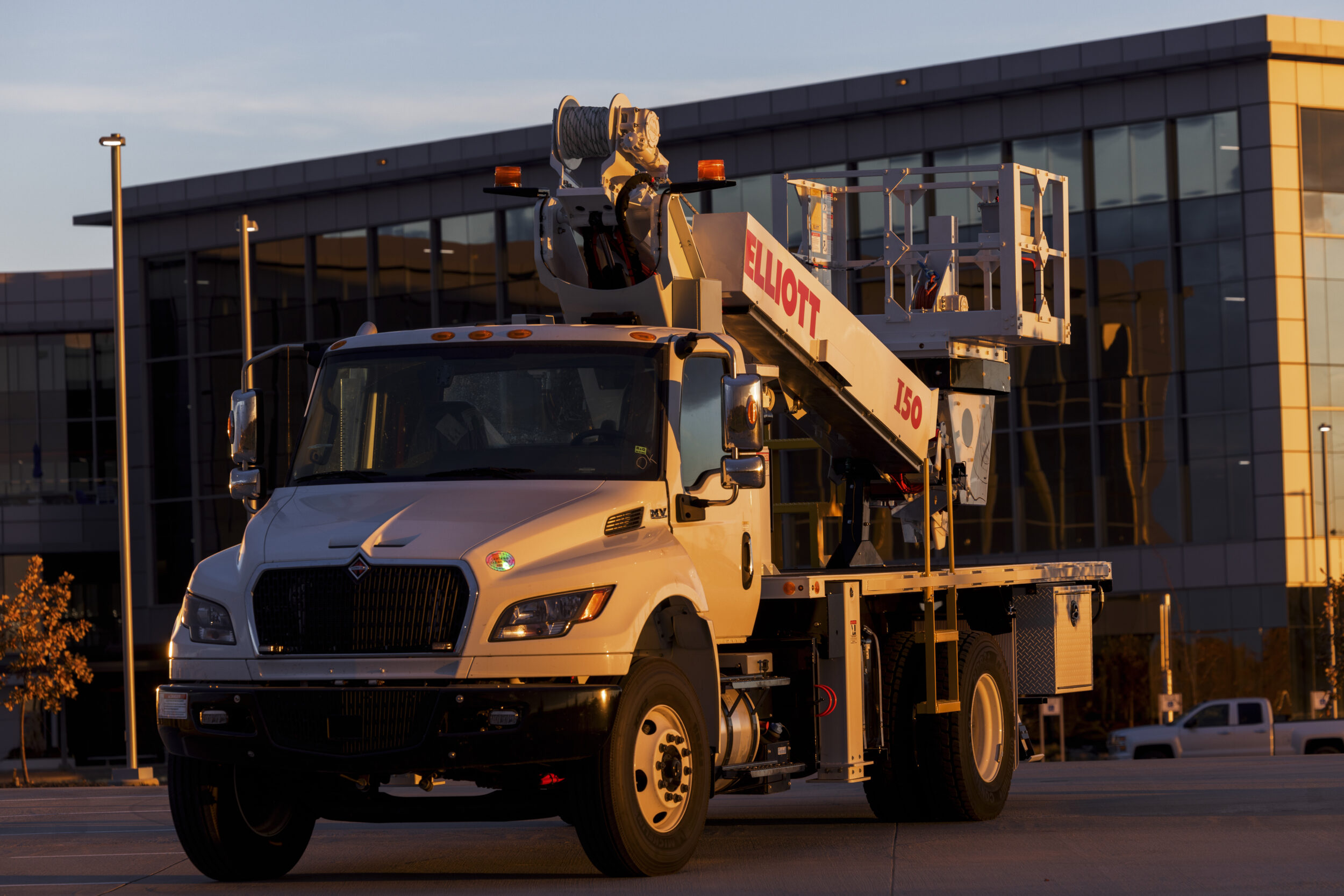

"Stronger and more reliable than the rest."
Machines manufactured by Elliott Equipment Company are stronger and more reliable than the competition.
—Trademark Visual
"Stronger and more reliable than the rest."
Machines manufactured by Elliott Equipment Company are stronger and more reliable than the competition.
—Trademark Visual
built to last.
lifetime warranty
Elliott Equipment Company specializes not only in flexibility and customization, but also in building some of the toughest equipment on the market. With our standard warranty, the best warranty in the industry, we can guarantee that our trucks are built to last.
Ask about our lifetime structural warranty and comprehensive one-year parts & labor warranty.
Any Questions?
OUR FAQs
Don’t see your question? Contact an expert. We’ll help you get everything sorted out!
What is the maximum working height and platform size of the I50F?
The I50F offers a working height of 55 feet (16.8 meters) and features a large 40” x 60” fiberglass platform, providing twice the workspace of standard two-man buckets—ideal for tools, movement, and crew productivity.
Is the I50F designed for energized line work?
Yes. The I50F is rated for up to 46kV (Category C) and built to ANSI A92.2 standards, making it fully compliant and safe for use in live-line utility applications.
Can the I50F lift both personnel and materials?
Absolutely. The I50F includes material handling capabilities on both the main boom and inside the work platform, allowing crews to lift tools, components, and materials efficiently without additional equipment.
How does the I50F perform in tight job sites or urban areas?
What is the maximum working height and platform size of the I50F?
The I50F offers a working height of 55 feet (16.8 meters) and features a large 40” x 60” fiberglass platform, providing twice the workspace of standard two-man buckets—ideal for tools, movement, and crew productivity.
Is the I50F designed for energized line work?
Yes. The I50F is rated for up to 46kV (Category C) and built to ANSI A92.2 standards, making it fully compliant and safe for use in live-line utility applications.
Can the I50F lift both personnel and materials?
Absolutely. The I50F includes material handling capabilities on both the main boom and inside the work platform, allowing crews to lift tools, components, and materials efficiently without additional equipment.
How does the I50F perform in tight job sites or urban areas?
Thanks to its unrestricted side reach and zero tailswing design, the I50F is highly maneuverable and efficient in confined or congested environments, reducing the need for repositioning during a job.
