Precision Lifting with
Proven Performance
and Full Visibility
30105F BOOMTRUCK
built for tight spaces and high expectations
The 30105 delivers powerful lifting, superior operator visibility with its ride-around console, and the rugged, customizable design that makes Elliott the trusted choice for utility, construction, and public works fleets.
Suggested industries
Why choose the 30105F?
Why choose
the 30105F?
PROVEN DESIGN FOR RELIABLE PERFORMANCE
FLEXIBLE OUTRIGGER CONFIGURATION FOR ANY JOBSITE
DYNASMOOTH HYDRAULICS FOR CONTROL YOU CAN FEEL
Experience control you can feel—DynaSmooth hydraulics offer operators intuitive, precise responsiveness that transforms every movement into smooth, deliberate action. In the 30105F BoomTruck, this translates to effortless handling of intricate lifts, bringing performance and operator confidence to the next level.

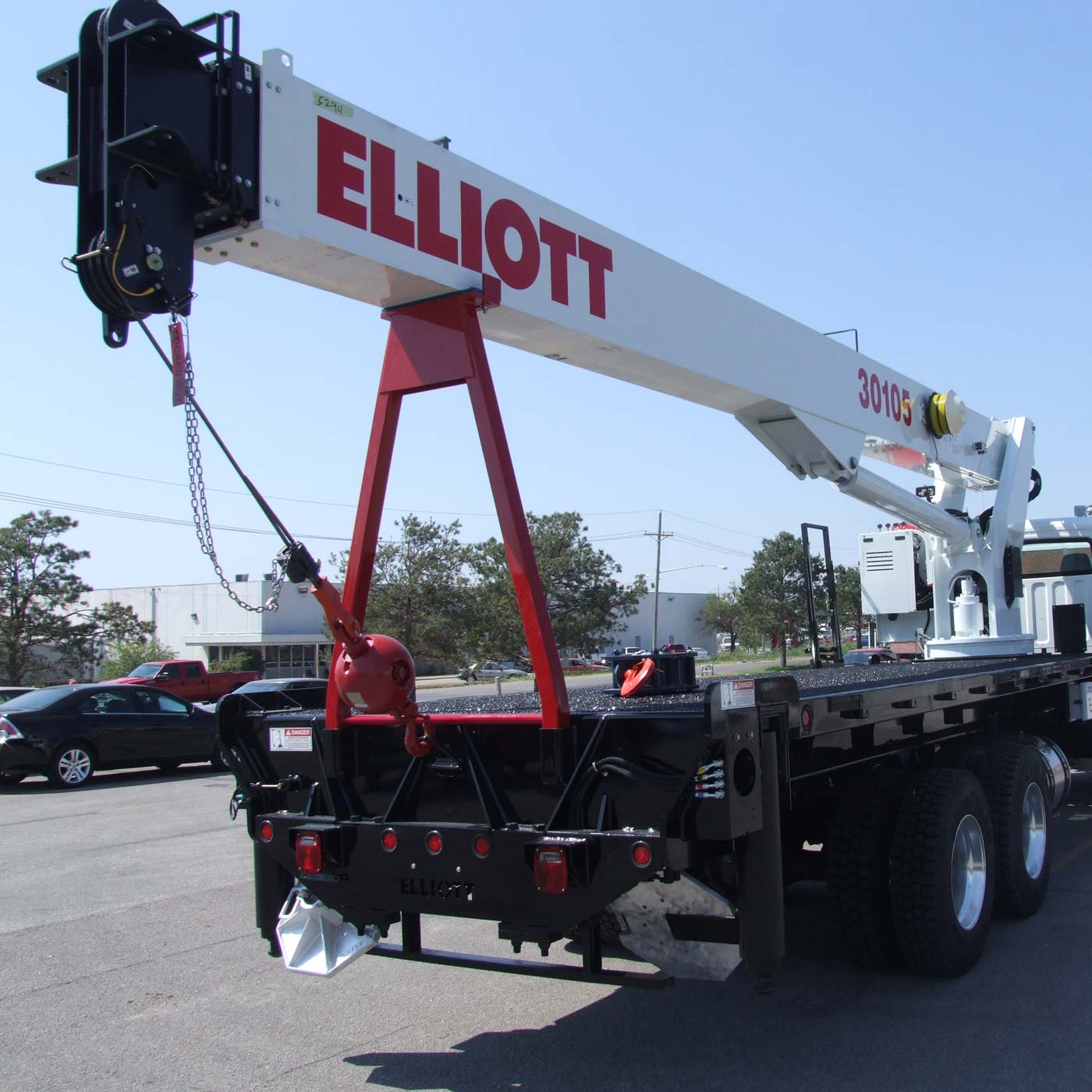

HEAVY-DUTY BOOM TIP DESIGNED FOR JIBS
INDUSTRY-BEST WARRANTY FOR LONG-TERM PEACE OF MIND
30105F technical specs
30105F
Technical specs
LIFTING CAPACITY
60,000 LB / 27 215 KGBOOM LENGTH
105’ / 32 MBOOM SECTIONS
4JIB LENGTHS
26’, 26-45’ / 8, 8-13,7 MMAXIMUM TIP HEIGHT
162′ / 49,4 MWINCH BARE DRUM PULL
12,800 LB / 5,806 KGWINCH SINGLE LINE PULL
9,060 LB / 4,109 KGOPERATOR CONTROLS
ROTATING STANDUPOUTRIGGER TYPE FRONT
OUT-DOWNOUTRIGGER SPREAD FRONT
20′ / 6 MOUTRIGGER TYPE REAR
OUT-DOWNOUTRIGGER SPREAD REAR
20′ / 6 MUNIT WEIGHT (BARE)
28,160 LB / 12,733 KGOVERALL HEIGHT
13′ / 4 MRECOMMENDED CAB TO AXLE (CA)
204″ / 518 CMRECOMMENDED GVWR
60,000 LB / 27 215 KG60,000 LB / 27,215 KG
105’ / 32 M
4
26’, 26-45’ / 8, 8-13,7 M
162′ / 49,4 M
12,800 LB / 5806 KG
9,060 LB / 4109 KG
ROTATING STANDUP
OUT-DOWN
20′ / 6 M
OUT-DOWN
20′ / 6 M
28,160 LB / 12,733 KG
13′ / 4 M
204″ / 518 CM
60,000 LB / 27,215 KG
MADE IN OMAHA,
TRUSTED BENEFITS
Elliott Equipment is family-owned and proudly American-built in Omaha, Nebraska. Choose Elliott Boomtruck Cranes and experience the power, versatility, and customizability that set us apart.
Customize it for your crew
Elliott BoomTrucks are built to adapt to your work. From specialized lifting to utility tasks, you can customize your unit with the tools, features, and options that match your job requirements.
Ready to see it in action?
Let’s build the perfect 30105F BoomTruck for your team. Contact us today to talk specs, customizations, and dealer availability.
Trusted by Industry Leaders Nationwide
built to last.
lifetime warranty
Elliott Equipment Company specializes not only in flexibility and customization, but also in building some of the toughest equipment on the market. With our standard warranty, the best warranty in the industry, we can guarantee that our trucks are built to last.
Ask about our lifetime structural warranty and comprehensive two-year parts & labor warranty.
Any Questions?
OUR FAQs
Don’t see your question? Contact an expert. We’ll help you get everything sorted out!
What is the lifting capacity and boom length of the 30105F?
The 30105F BoomTruck offers a 60,000 lb (27,215 kg) lifting capacity and features a 105′ (32 m) telescopic boom, with a maximum tip height of up to 162′ (49.4 m) when equipped with the optional 45′ jib.
How does the outrigger system enhance jobsite setup?
Equipped with out-and-down main outriggers and vertical secondary outriggers, the 30105F provides versatile stability and secure deployment—ideal for uneven ground or space-constrained job sites.
What operational aides and control technologies does the 30105 include?
Featuring a user-friendly graphic LMI interface and Elliott’s DynaSmooth hydraulic system, the 30105F delivers precise control with excellent feedback. It also includes a proprietary hydraulic overload system and radio anti two-block protection, enhancing both safety and operator confidence.
What warranty support comes with the 30105F?
What is the lifting capacity and boom length of the 30105F?
The 30105F BoomTruck offers a 60,000 lb (27,215 kg) lifting capacity and features a 105′ (32 m) telescopic boom, with a maximum tip height of up to 162′ (49.4 m) when equipped with the optional 45′ jib.
How does the outrigger system enhance jobsite setup?
Equipped with out-and-down main outriggers and vertical secondary outriggers, the 30105F provides versatile stability and secure deployment—ideal for uneven ground or space-constrained job sites.
What safety and control systems are included?
Featuring a user-friendly graphic LMI interface and Elliott’s DynaSmooth hydraulic system, the 30105F delivers precise control with excellent feedback. It also includes a proprietary hydraulic overload system, enhancing both safety and operator confidence.
What warranty support comes with the 30105F?
The 30105F is backed by Elliott’s industry-leading two-year parts and labor warranty, as well as a lifetime structural warranty, ensuring long-term reliability and maximum confidence in your investment.
