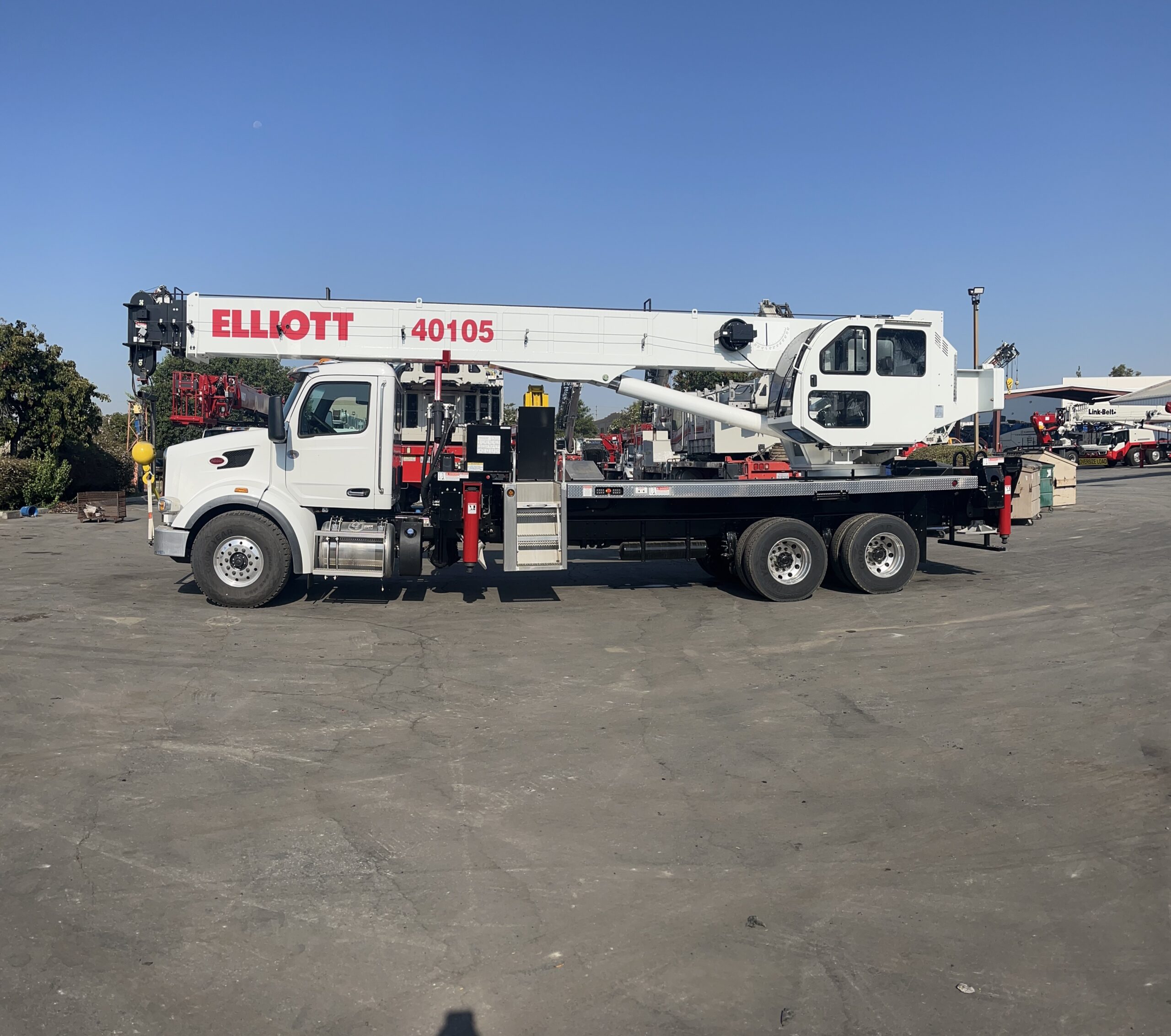

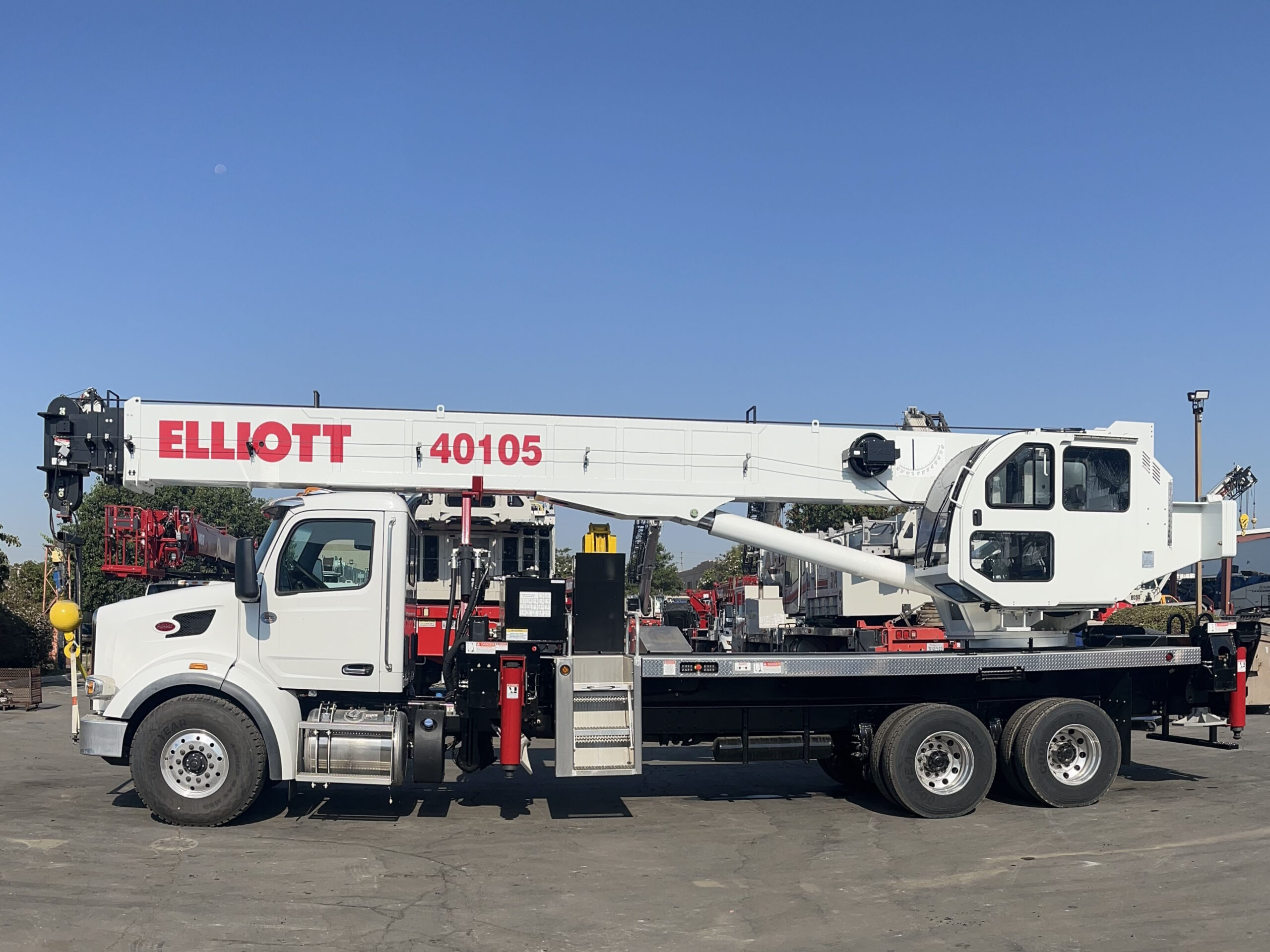

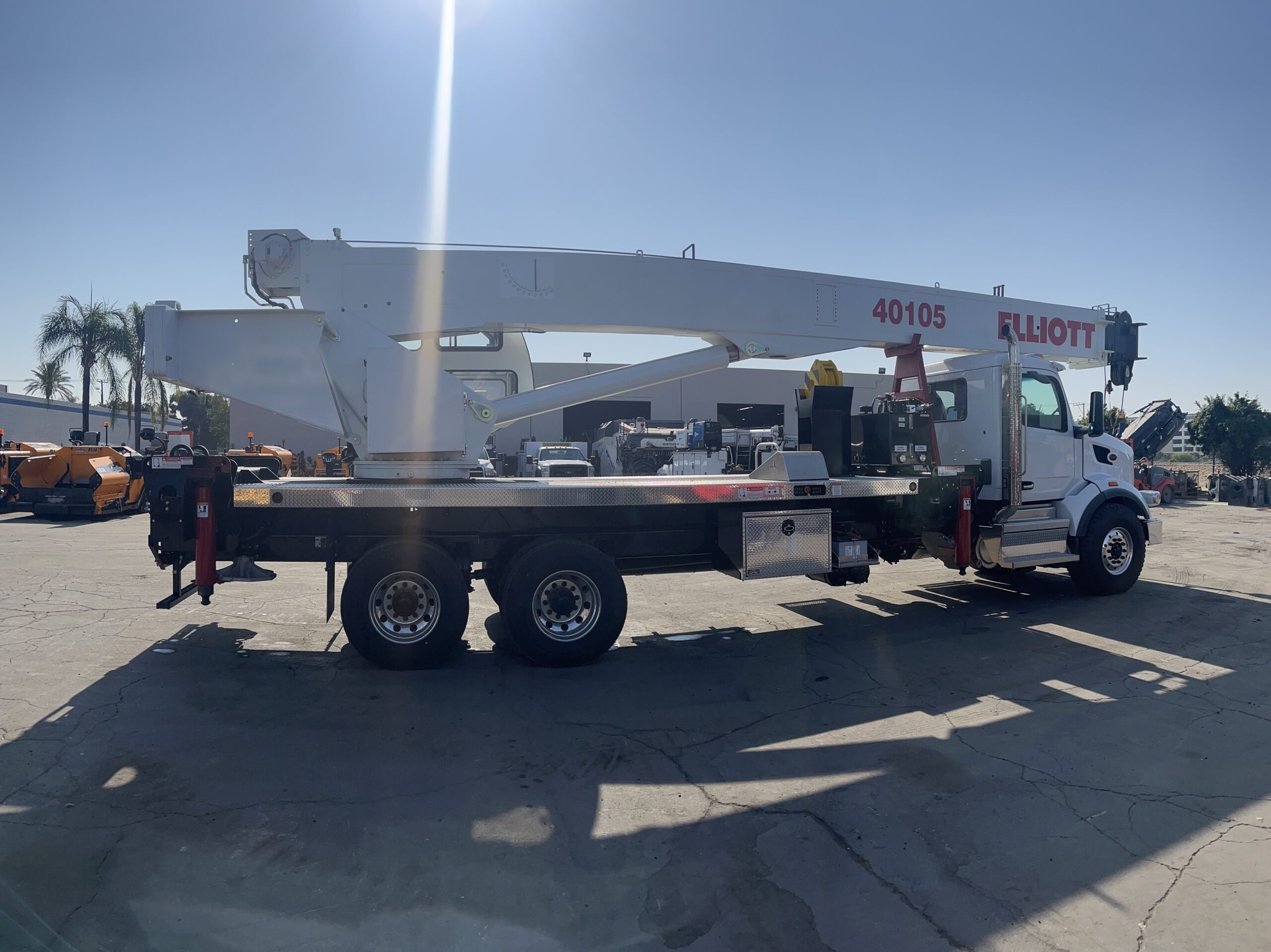

40105R BoomTruck  #8074

Contact Details

Dealership: Nixon-Egli Equipment Company
Sales Contact: Gavin Singleton
Phone Number: 909.930.1822
Email: gsingleton@nixonegli.com

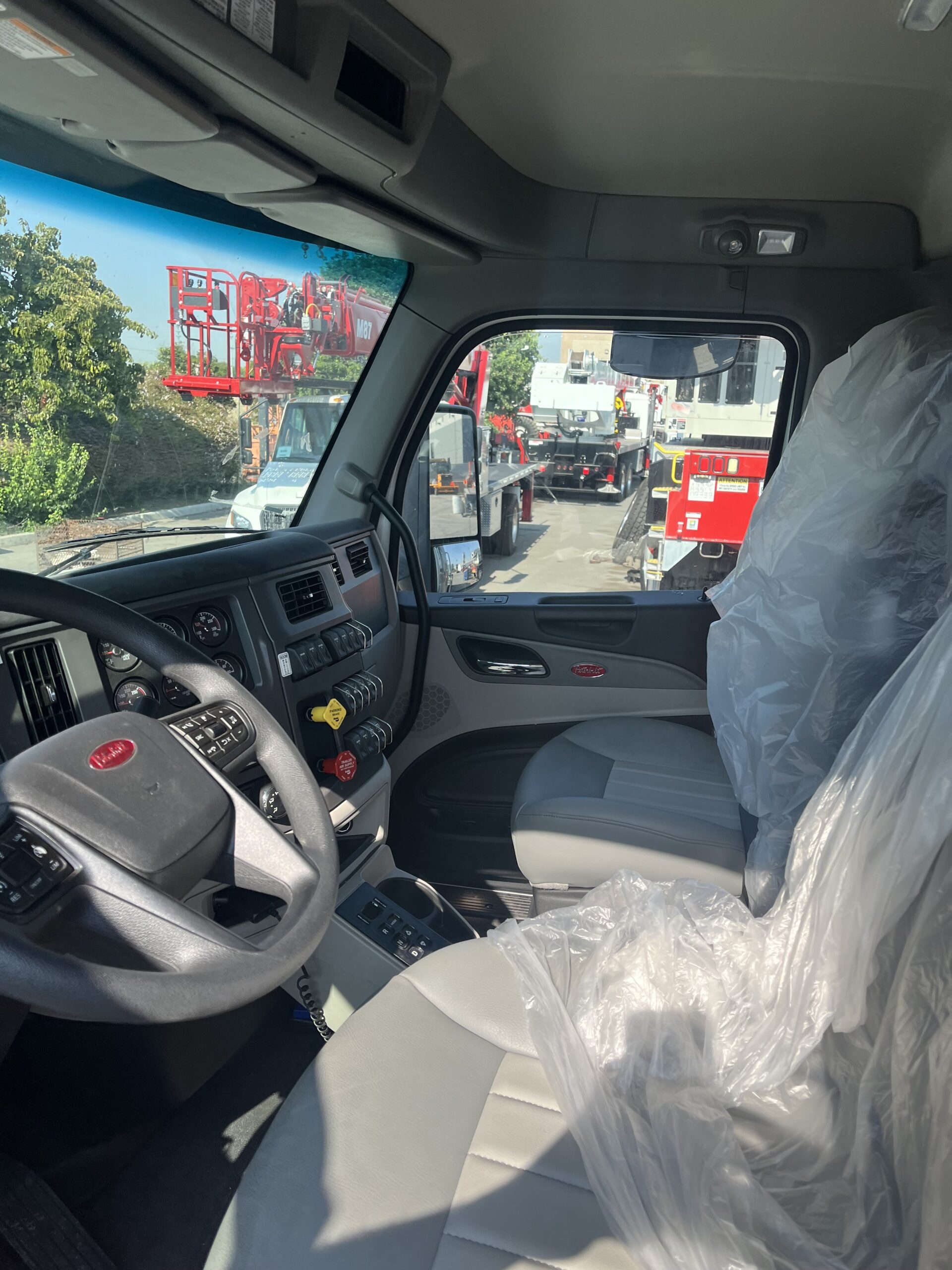

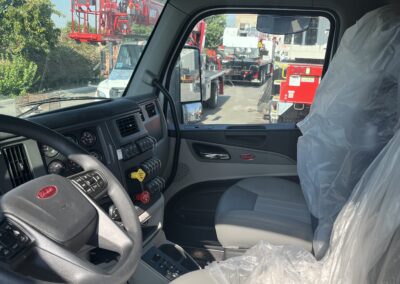

CAB and CHASSIS

2023 PETERBILT 567
2,400 miles

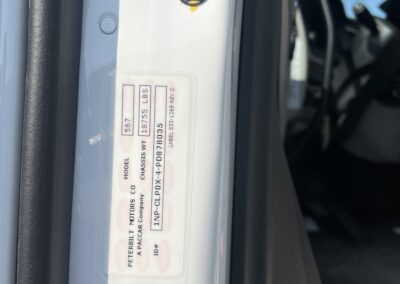

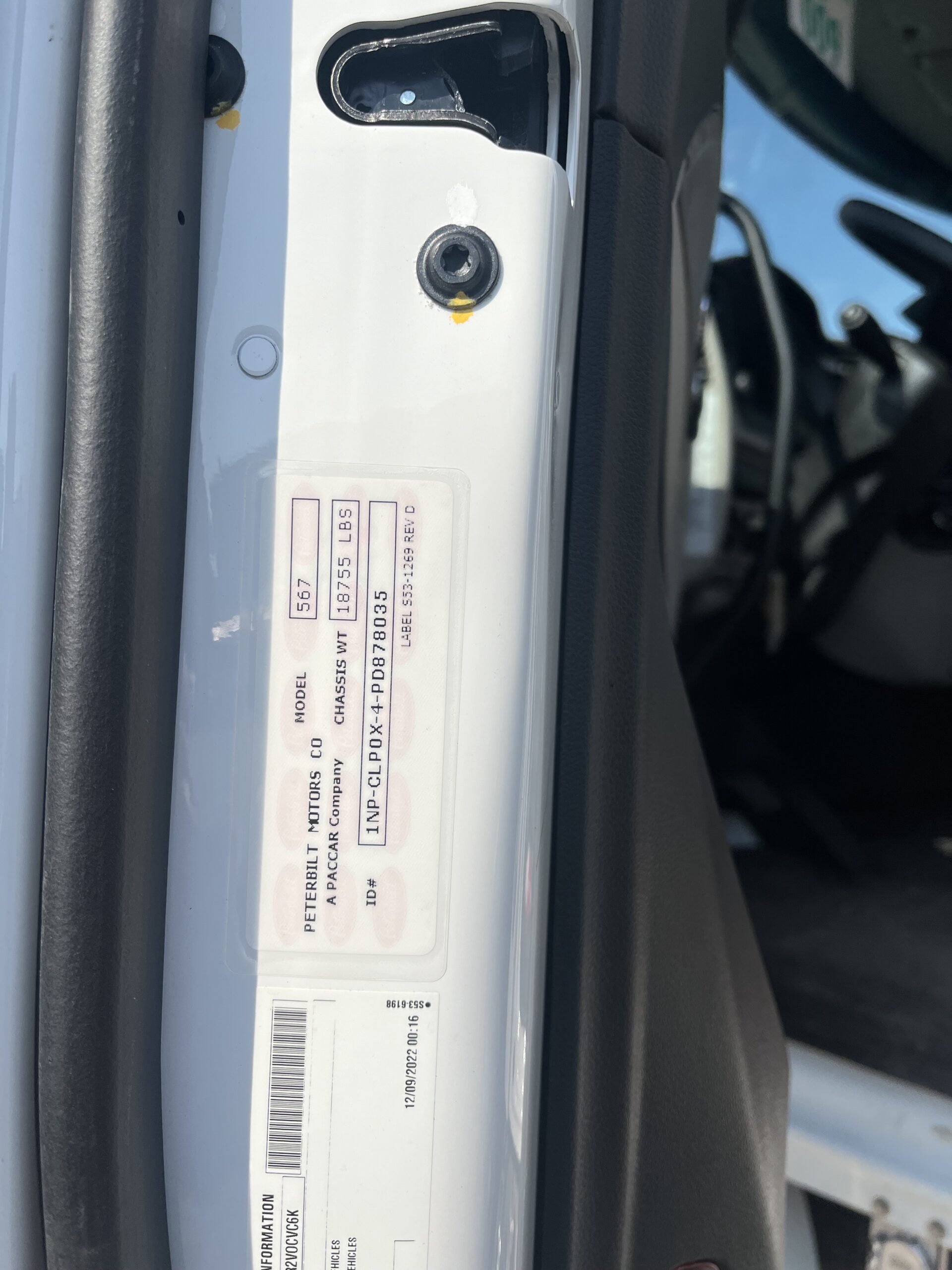

VIN Number: 1NPCLP0X4PD878035
Truck Hours: 27

Unit Details

Rear mount subframe and aluminum 3-piece bed integral with steel subframe.
A 33’9″ retracted to 105′ extended 4-section proportional boom.
Two-speed winch featuring a 15,000 lb. bare drum pull with 430′ of 5/8″ diameter rotation resistant wire rope and a 11,300 lb. single line pull.
Winch drum cable packer.
External boom hard-wired anti-two-block and Load Moment Indicator (LMI) hydraulic overload protection system.
Continuous rotation.
Glide swing with manual foot brake.
Hydraulic system includes a piston pump, 134 gallon aluminum oil reservoir mounted on top of front outriggers with sight and temperature gauge, 10 micron return filter, and shutoff valve, and (2) oil heater couplings.
Oil cooler.
Rotating seated controls with tilting cab (20 Deg).
Includes operator seat, pilot operated control levers in seat, start/stop switch, master switch, hi/lo range switch, variable speed throttle, LMI console display, chassis interface screen, capacity chart, range diagram chart, boom angle indicator, front and top window wipers, sliding side window, AM/FM stereo, air conditioning, and diesel heater.
Front bumper winch switch.
Two sets of “Out-and-Down” type outriggers located at front with 21’2″ center to center span and rear with 26’2″ center to center span and equipped with removable ball socket aluminum pads.
Cab operated outrigger controls.
Ground operated outrigger controls on each side of bed wing.
Full-span and mid-span outrigger load chart.
Horizontal boom rest mounted on top of front outriggers.
Downhaul weight with swivel hook.

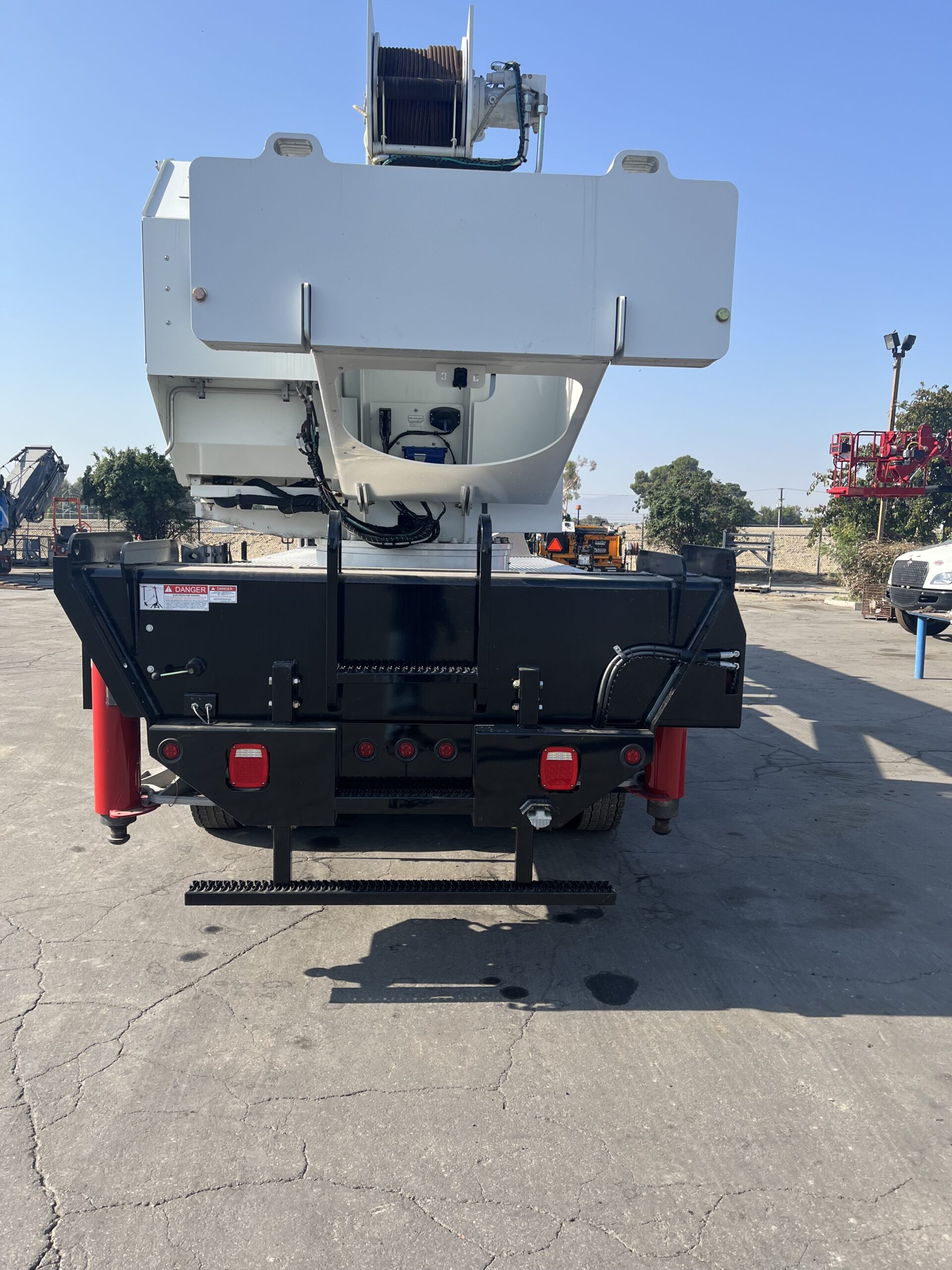

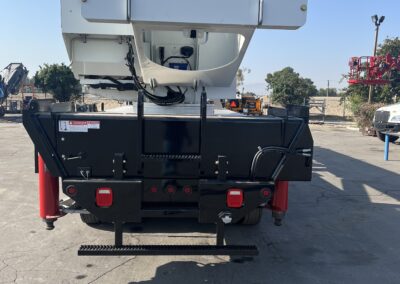

Access ladder at rear.
Pull-out ladder under cab.
Maximum tip height of 115′ and maximum lifting capacity of 40 US tons at 7′ radius.
360 degree stability.
(Requires air shift PTO option)
Unit certified to ANSI B30.5 for Mobile Cranes.

Options

32-Ton 2-Sheave Hook Block For Up to 4/5 Parts of Line. (600 lbs.)

Winch Drum Rotation Indicator - Standard Winch

4-Function Radio Remote Controls

Hot Shift PTO For Automatic Transmission

Clockwise Rotation Pump (Required for Automatic Transmission)

36″ x 24″ x 24″ Aluminum Underbody Mounted (Treadplate-No paint)

Winch View Camera

Rear View Camera

Vertical Holder On Bed For 4/5 Part Line Hook Block
